3 WORK
12

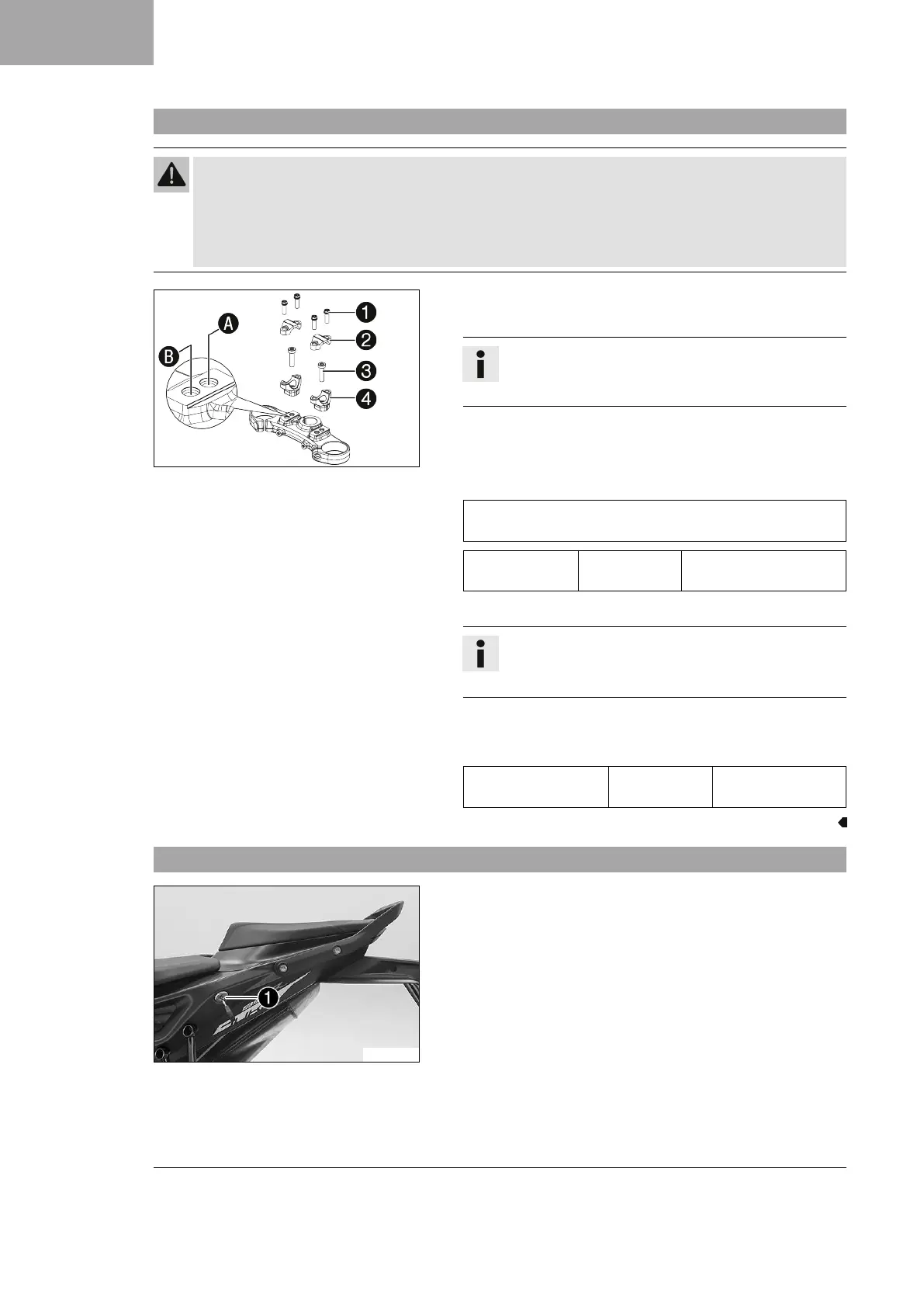

3.1 Adjusting the handlebar position
Warning
Danger of accidents A repaired handlebar poses a safety risk.
If the handlebar is bent or straightened, the material becomes fatigued. The handlebar may break as a
result.
– Change the handlebar if the handlebar is damaged or bent.
V01210-10
–
Remove screws
1
. Take off the handlebar clamps
2
. Posi-
tion the handlebar so that screws
3
are accessible.
Info
Cover the components to protect them against damage.
Do not kink the cables and lines.
–
Remove screws
3
. Take off handlebar supports
4
.
–
Move the handlebar supports into the desired position
A
or
B
. Mount and tighten screws
3
.
Guideline
Mount the left and right handlebar supports in the same
position.
Screw, handle-
bar support
M10 45 Nm (33.2 lbf ft)
Loctite
®
243™
– Position the handlebar.
Info
Make sure the cables and wiring are positioned cor-
rectly.
–
Position the handlebar clamp. Mount screws
1
and tighten
evenly.
Guideline
Screw, handlebar
clamp
M8 20 Nm (14.8 lbf ft)
3.2 Removing the passenger seat
K01359-10
–
Insert the ignition key in seat lock
1
and turn it clockwise.
–
Raise the rear of the passenger seat cover, push it toward the
rear, and remove it upward.
– Remove the ignition key from the seat lock.
