MAINTENANCE WORK ON FRAME AND ENGINE 103
100569-10

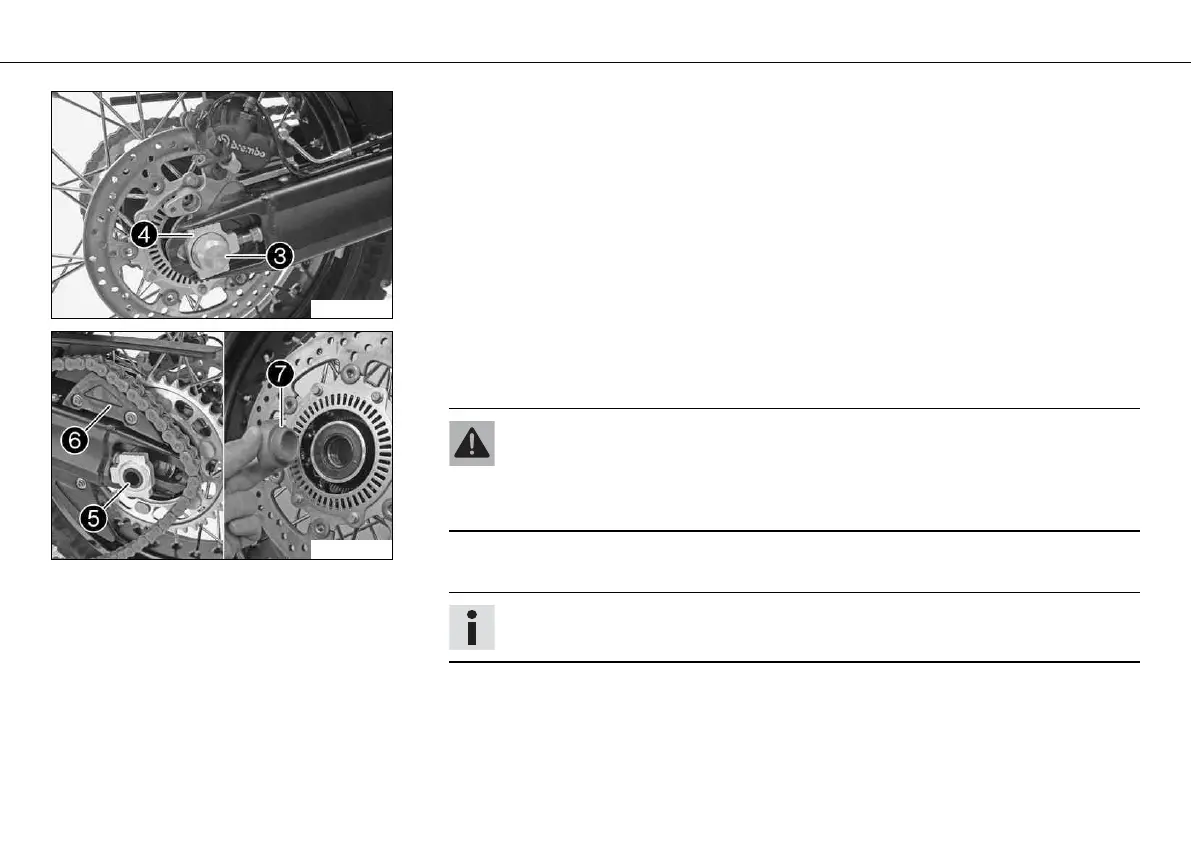

– Remove nut . Remove chain adjuster .
100570-10
– Pull out wheel spindle only far enough to allow the rear wheel to be pushed forward.
– Push the rear wheel forward as far as possible. Take the chain off of the rear sprocket
and place it on chain sprocket guard .
Warning
Danger of accidents Reduced braking efficiency caused by damaged brake
discs.
– Always lay the wheel down in such a way that the brake disc is not damaged.
– Holding the rear wheel, withdraw the wheel spindle. Take the rear wheel out of the
swing arm.
Info
Do not operate the foot brake when the rear wheel is removed.
– Remove the spacer .
