KTM 990 ADVENTURE Repair Manual

Repair manual KTM LC8 Art.-No. 3.206.056-E
7-11

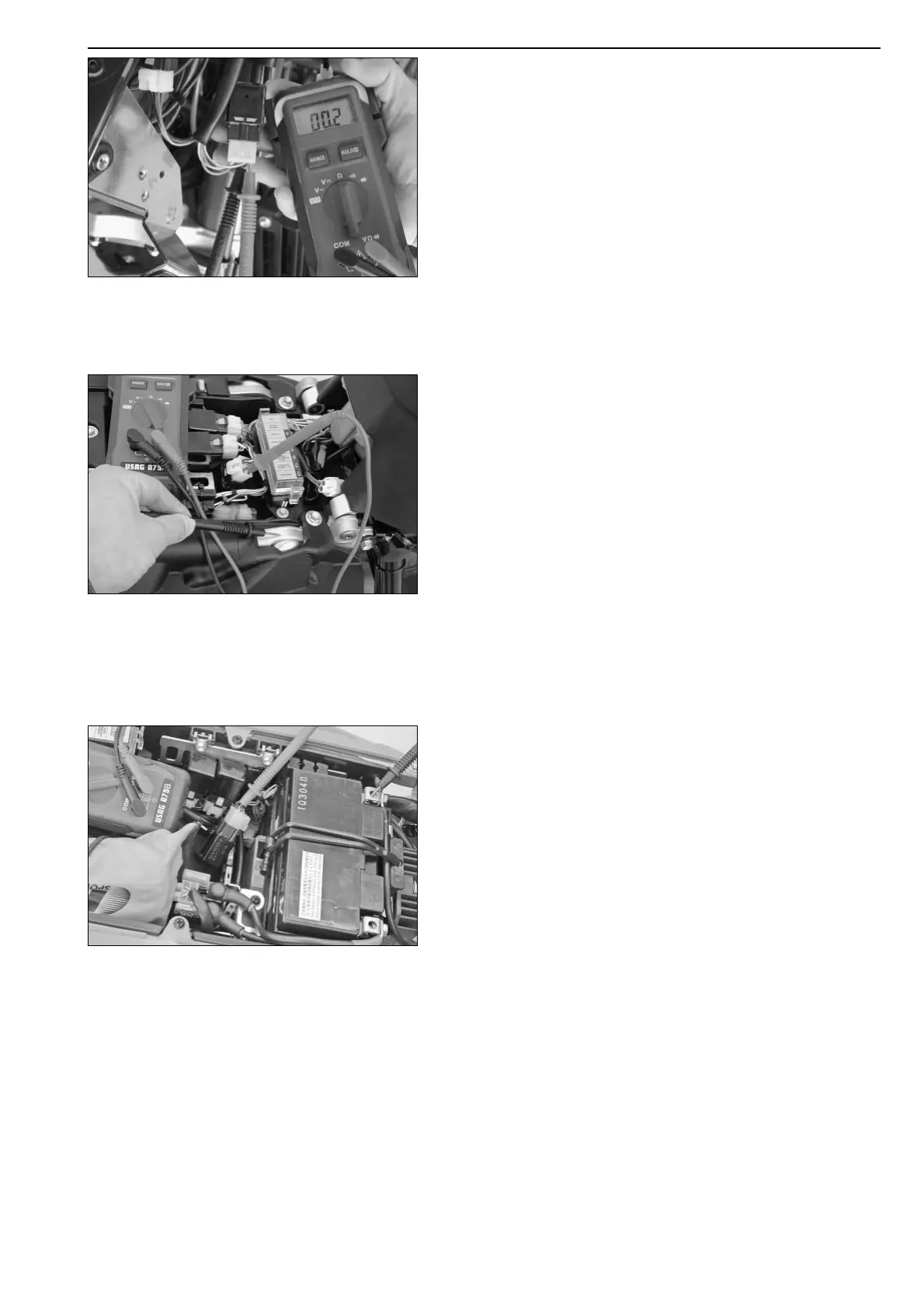

F unctional check of the auxiliary starter relay (950 Adventure)
– Pull the auxiliary starter relay out of the bracket.
– Connect an ohmmeter or continuity tester to the cable of the
auxiliary starter relay (red and red/white cables).
– Perform the tests in the specified order. The auxiliary starter relay
must switch under the following 2 conditions:
– Slowly pull the clutch lever with the gear engaged. The auxiliary
starter relay should switch at half of the lever travel (ignition and
kill switch on).
If not, check the clutch switch. Observe the idle indicator lamp, it
may not light up. If it does, check the diode.
– Switch the transmission to neutral with the clutch released. The
auxiliary starter relay should switch on and switch off when the gear
is engaged. If not, check the diode and neutral switch
NOTE: You will hear a faint click when the auxiliary starter relay
switches. The ohmmeter or the continuity tester will display the
continuity when the auxiliary starter relay is switched on.
Functional check of the auxiliary start relay (990 Adventure/
990 Super Duke/R)
– Pull the auxiliary start relay out of the holder.
– Connect the voltmeter to the red/blue (990 Adventure) or red/white
(990 Super Duke/R) cable of the auxiliary start relay and measure
the voltage to chassis.
– Perform the tests in the specified order. The auxiliary start relay
must switch under the following conditions (the voltmeter will
display the on-board voltage):
– Slowly pull the clutch lever with a gear engaged and the tip switch
pressed. The auxiliary start relay switch will switch around half the
distance of the lever travel(ignition and emergency-off switch on!).
NOTE: if the starting system is working, the starter engine will start up
and start the engine.
If not, check the clutch switch. Watch the idle control lamp, it should
not light up. If it does, check the diode.
– Shift the transmission to neutral without pulling the clutch. The
auxiliary start relay should switch on and off again if the gear is
engaged. If not, check the diode and the neutral switch.
Functional check of the auxiliary start relay (950 Supermoto/R,
990 Supermoto)
– Pull the auxiliary start relay out of the holder.
– Connect the voltmeter to the red/blue cable of the auxiliary start
relay and measure the voltage to chassis.
– Perform the tests in the specified order. The auxiliary start relay
must switch under the following conditions (the voltmeter will
display the on-board voltage):
– Slowly pull the clutch lever with a gear engaged and the tip switch
pressed. The auxiliary start relay switch will switch around half the
distance of the lever travel(ignition and emergency-off switch on!).
NOTE: if the starting system is working, the starter engine will start up
and start the engine.
If not, check the clutch switch. Watch the idle control lamp, it should
not light up. If it does, check the diode.
– Shift the transmission to neutral without pulling the clutch. The
auxiliary start relay should switch on and off again if the gear is
engaged. If not, check the diode and the neutral switch.

KTM 990 ADVENTURE Specifications

General

Engine Type	V-twin, 4-stroke
Displacement	999 cc
Bore x Stroke	101 mm x 62.4 mm
Transmission	6-speed
Fuel System	Electronic Fuel Injection
Dry Weight	209 kg
Torque	100 Nm
Front Suspension	WP-USD 48 mm
Rear Suspension	WP shock absorber
Rear Brake	1 x 240 mm disc, 2-piston caliper
Seat Height	860 mm
Fuel Capacity	19.5 liters
Front Brake	Dual 300 mm discs, 4-piston calipers
