TUNING THE ENGINE 16
111

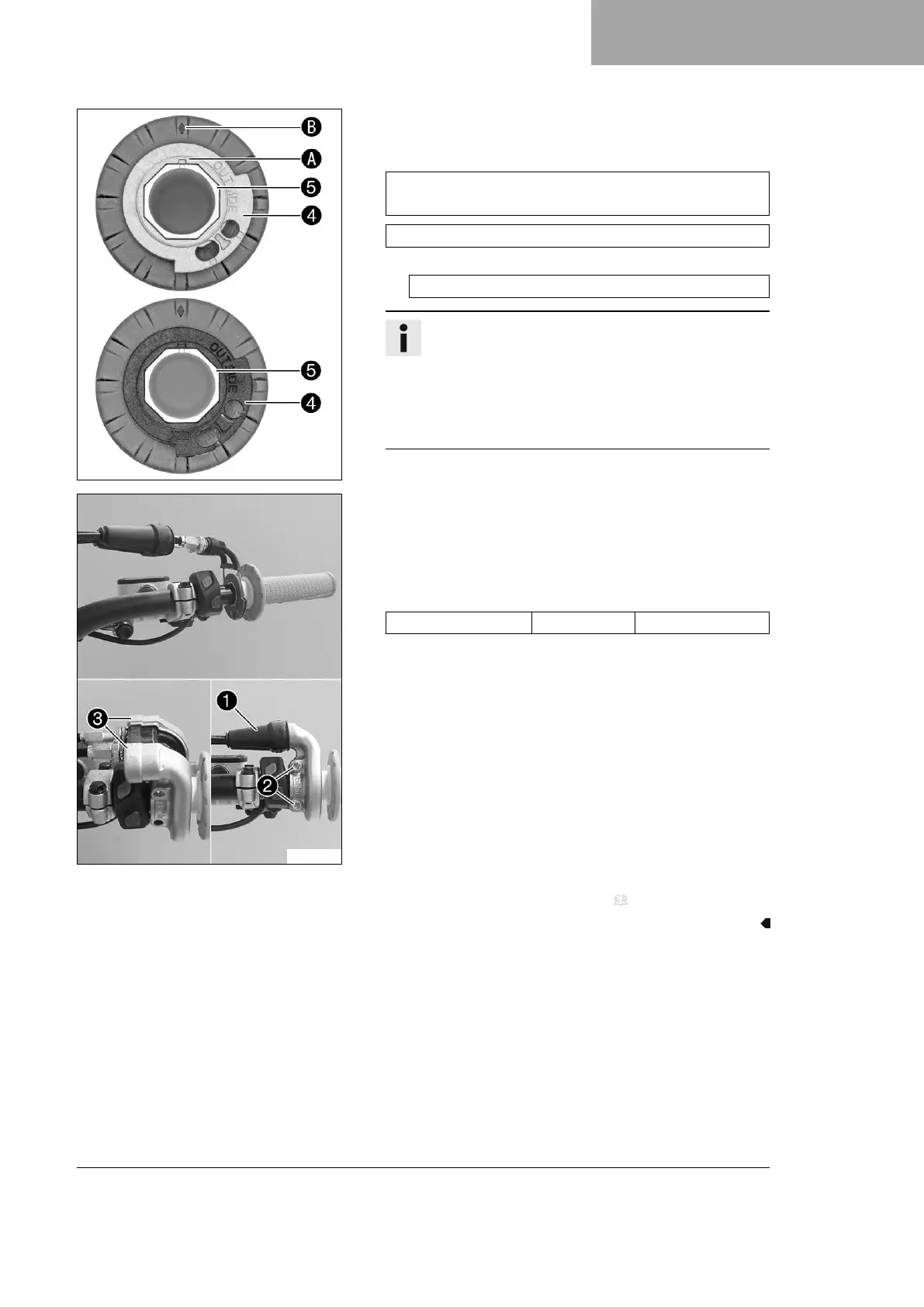

F03780-10
–
Remove guide plate
4
from handle tube
5
.
– Position the required guide plate on the grip tube.
Guideline
The label OUTSIDE must be visible. Marking
A
must be
positioned at marking
B
.
Black guide plate (A46002014000)
Alternative 1
Gray guide plate (A48002014000)
Info
The gray guide plate opens the throttle valve more
slowly.
The black guide plate opens the throttle valve more
quickly.
The black guide plate is already mounted when the
vehicle is delivered.
F03744-10
– Clean the outside of the handlebar and the inside of the grip
tube. Mount the grip tube on the handlebar.
– Attach the throttle cables to the guide plate and route cor-
rectly.
–
Position half-shells
3
, mount and tighten screws
2
.
Guideline
Screw, throttle grip M6 5 Nm (3.7 lbf ft)
–
Slide on sleeve
1
and check the throttle grip for ease of
movement.
Finishing work
– Check the play in the throttle cable. ( p. 109)
