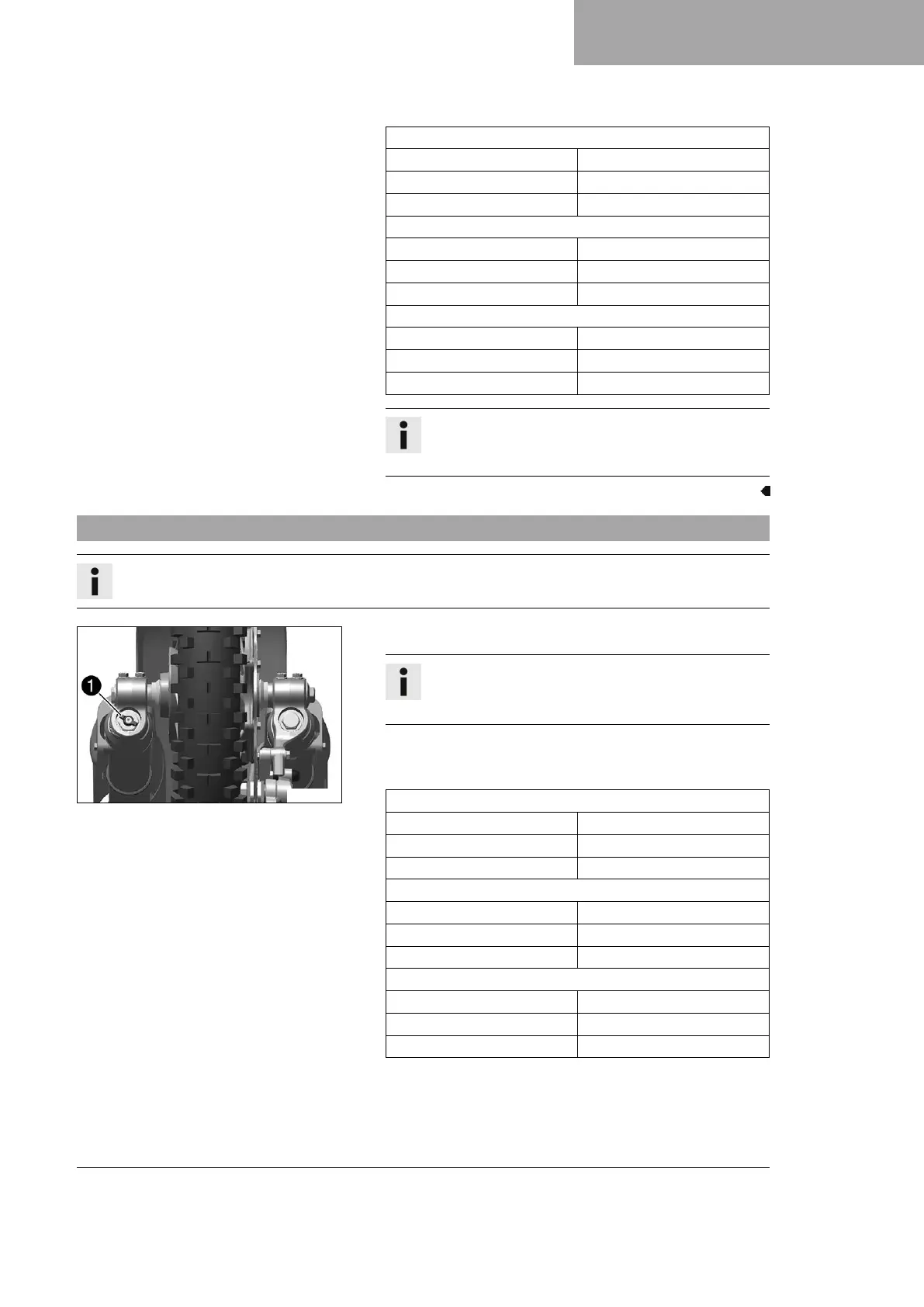

TUNING THE CHASSIS 10
45
Guideline
Compression damping (SXF EU/AR)
Comfort 17 clicks
Standard 12 clicks
Sport 7 clicks
Compression damping (SXF US)
Comfort 17 clicks
Standard 12 clicks
Sport 7 clicks
Compression damping (XCF US)
Comfort 17 clicks
Standard 12 clicks
Sport 7 clicks
Info
Turn clockwise to increase damping; turn counterclock-
wise to reduce damping during compression.
10.15 Adjusting the rebound damping of the fork
Info
The hydraulic rebound damping determines the fork suspension behavior.
F03633-10
Turn adjuster
1
clockwise all the way to the stop.
Info
Adjuster
1
is located at the lower end of the right fork
leg.
Turn counterclockwise by the number of clicks corresponding
to the fork type.
Guideline
Rebound damping (SXF EU/AR)
Comfort 17 clicks
Standard 12 clicks
Sport 7 clicks
Rebound damping (SXF US)
Comfort 23 clicks
Standard 18 clicks
Sport 13 clicks
Rebound damping (XCF US)
Comfort 23 clicks
Standard 18 clicks
Sport 13 clicks
