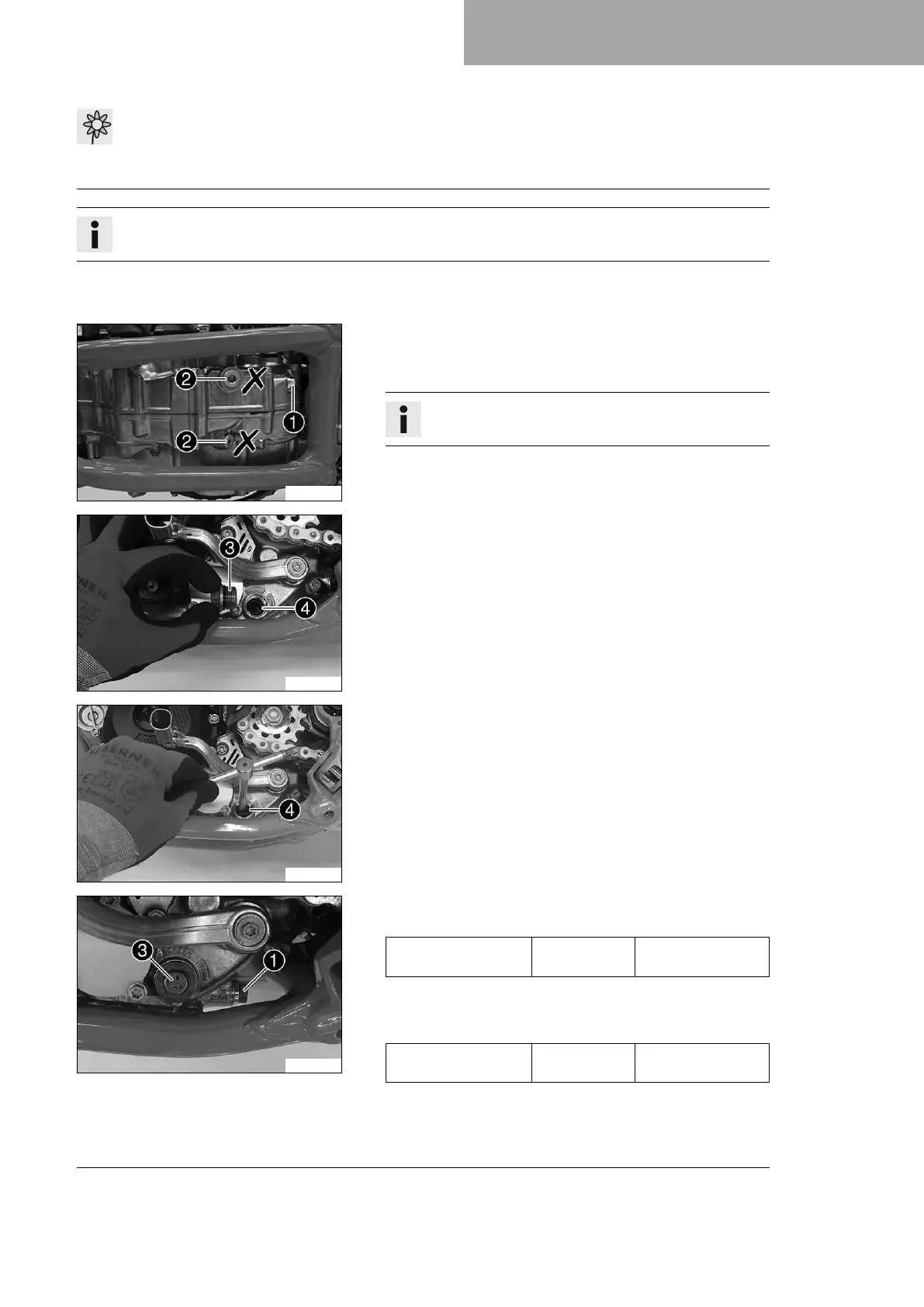

SERVICE WORK ON THE ENGINE 17
117
Note
Environmental hazard Hazardous substances cause environmental damage.
– Dispose of oils, grease, filters, fuel, cleaning agents, brake fluid, etc., correctly and in compliance with
the applicable regulations.
Info
Drain the engine oil while the engine is at operating temperature.
Preparatory work
– Park the motorcycle on a level surface.
H04991-10
Main work
– Position an appropriate container under the engine.
–
Remove oil drain plug
1
with the magnet and seal ring.
Info
Do not remove screws
2
.
H04992-10
–
Remove screw plug
3
with oil screen
4
and the O-rings.
– Allow the engine oil to drain completely.
– Thoroughly clean the parts and the sealing surfaces.
H04993-10
–
Position oil screen
4
with the O-rings on a pin wrench.
– Position the pin wrench through the drill hole of the screw plug
in the opposite section of the engine case.
– Push the oil screen all the way into the engine case.
H04994-10
–
Mount and tighten screw plug
3
with the O-ring.
Guideline
Screw plug, oil
screen
M20x1.5 15 Nm (11.1 lbf ft)
–
Mount and tighten oil drain plug
1
with the magnet and a
new seal ring.
Guideline
Oil drain plug with
magnet
M12x1.5 20 Nm (14.8 lbf ft)
