10 TUNING THE CHASSIS
48
F03781-10

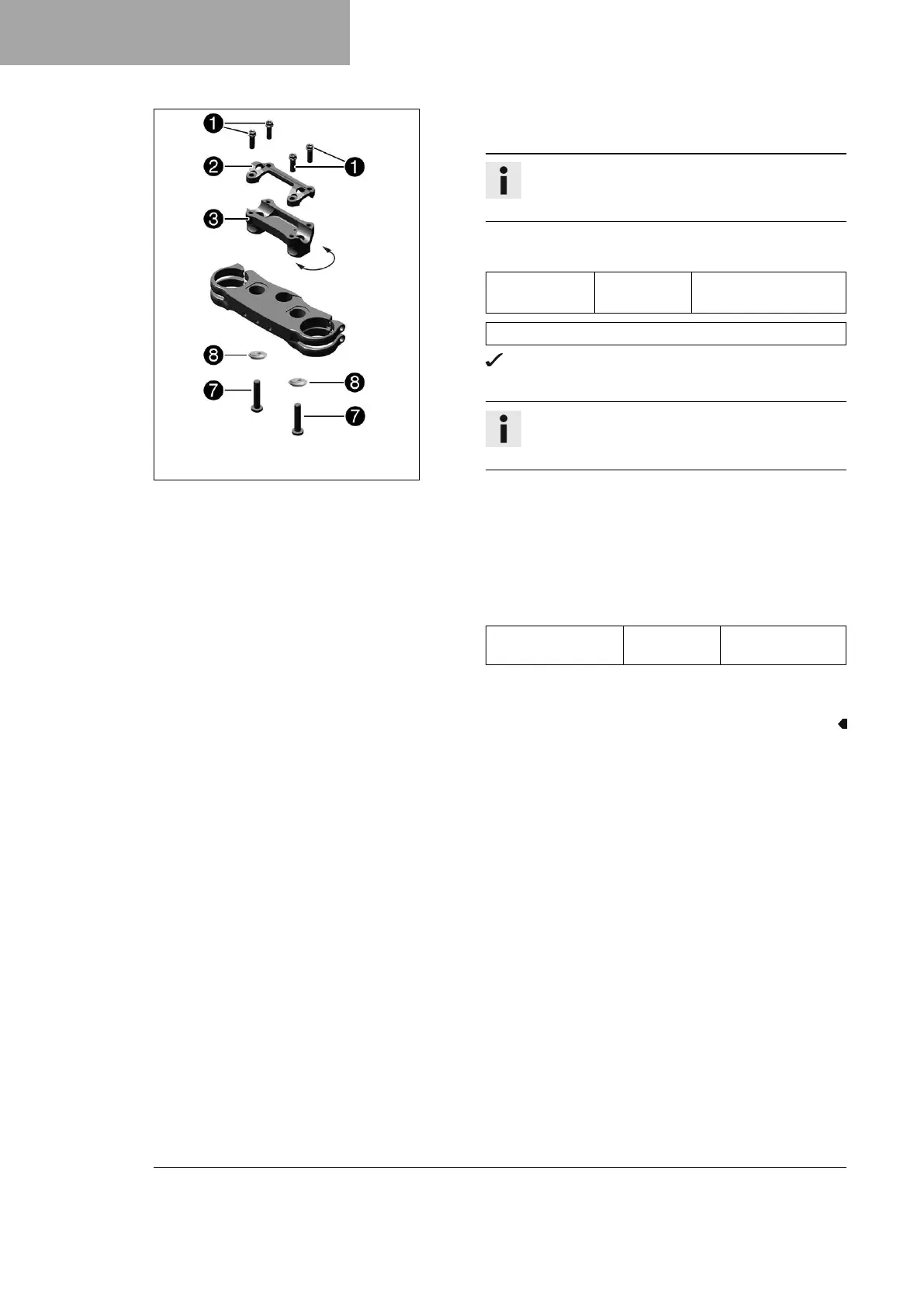

Adjusting the handlebar position with the handlebar clamp
– Place the handlebar support in the required position.
Info
The handlebar support is longer and higher on one
side.
–
Mount and tighten the screws
7
with the bushings
8
.
Guideline
Screw, handle-
bar support
M10 40 Nm (29.5 lbf ft)
Loctite
®
243™
Rigid handlebar support bushing (A46001038010)
The conical side of bushing faces downwards.
– Position the handlebar.
Info
Make sure the cables and wiring are positioned cor-
rectly.
–
Position handlebar clamp
2
.
–
Mount screws
1
, but do not tighten yet.
–
First bolt the handlebar clamp with screws
1
onto the
longer, higher side of the handlebar supports so that both
parts touch.
–
Tighten screws
1
evenly.
Guideline
Screw, handlebar
clamp
M8 20 Nm
(14.8 lbf ft)
Finishing work
– Mount the handlebar cushion.
