KTM F8201T5 User Manual

11 SERVICE WORK ON THE CHASSIS
54
S05332-11

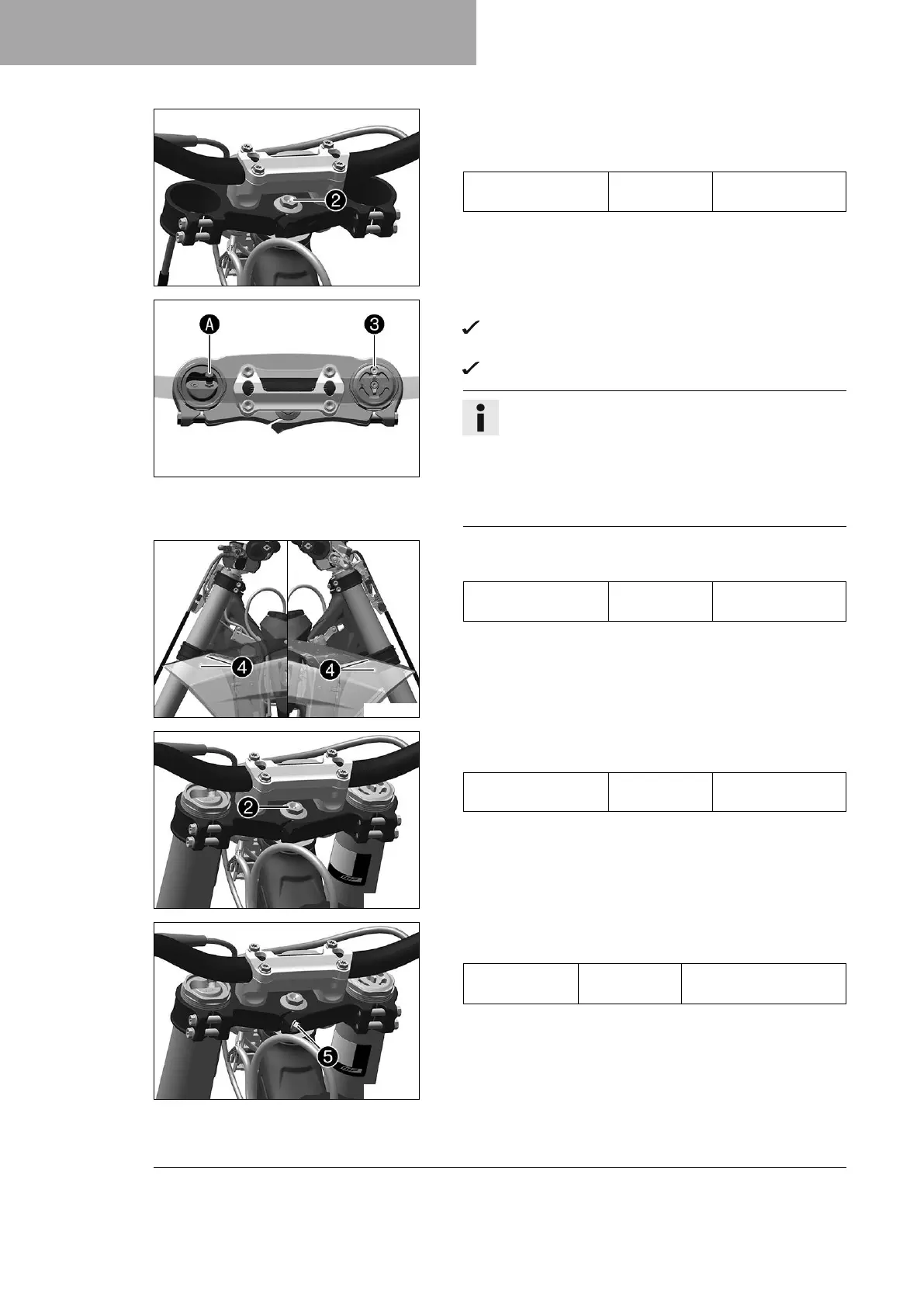

– Position the upper triple clamp and handlebar.
–
Mount screw
2
, but do not tighten it yet.
Guideline
Screw, top steering
head
M20x1.5 12 Nm (8.9 lbf ft)
F03764-10
–
Position the fork legs.
Air bleeder screw
3
of the right fork leg is positioned to
the front.
Valve
A
of the left fork leg faces the front.
Info
Grooves are milled into the side of the upper end of the
fork legs. The second milled groove (from the top) must
be flush with the upper edge of the upper triple clamp.
The air suspension is located in the left fork leg. The
pressure and rebound damping is located in the right
fork leg.
S05334-10
–
Tighten screws
4
.
Guideline
Screw, bottom triple
clamp
M8 12 Nm (8.9 lbf ft)
S05335-10
–
Tighten screw
2
.
Guideline
Screw, top steering
head
M20x1.5 12 Nm (8.9 lbf ft)
S05335-11
–
Mount and tighten screw
5
.
Guideline
Screw, top
steering stem
M8 20 Nm (14.8 lbf ft)
Loctite
®
243™
