SETUP 2
11
R00757-10

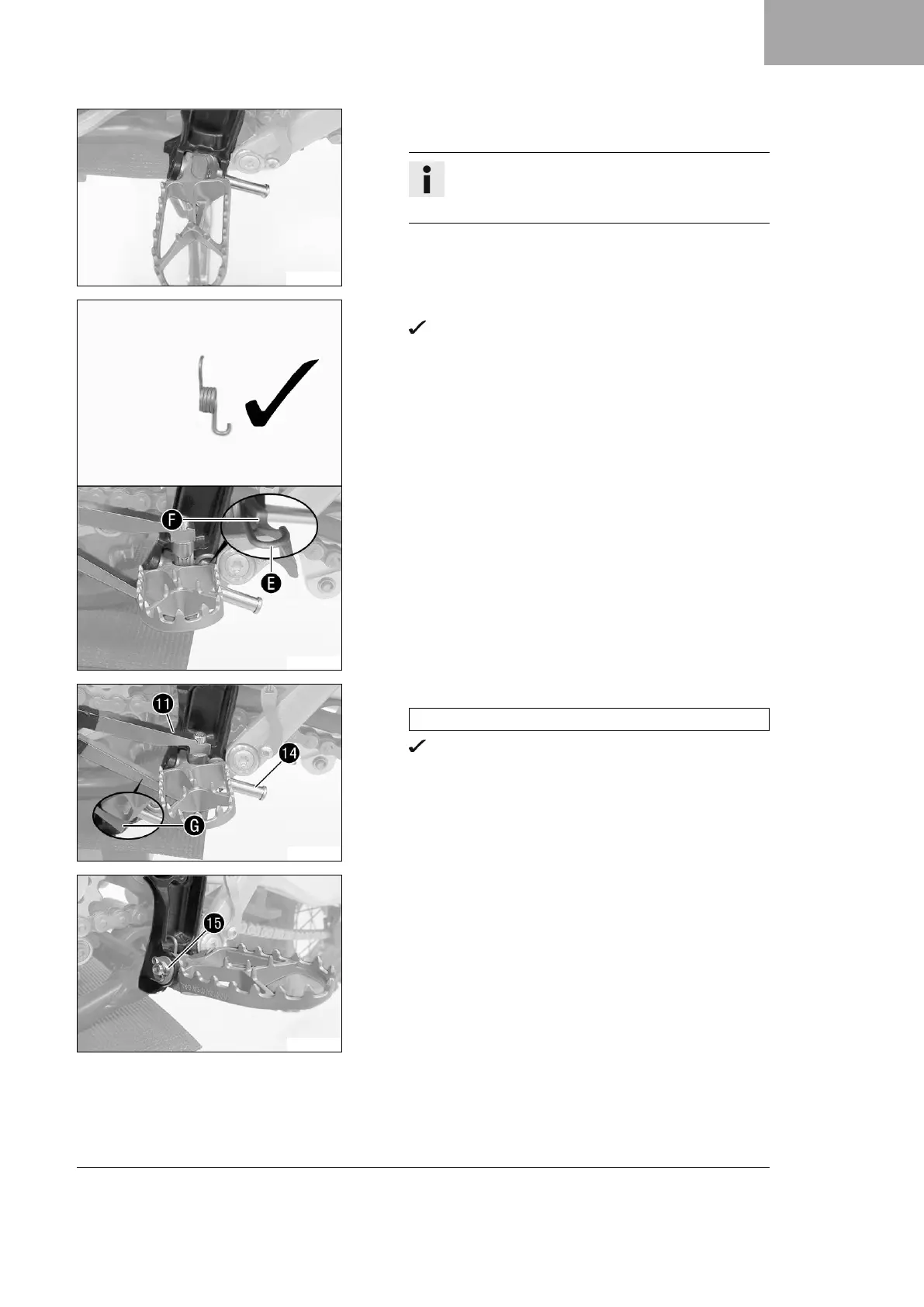

Left footrest (XC‑F US)
– Position the left footrest and pin.
Info
Only insert the pin to the extent that the spring can
still be mounted.
K00688-10
–
Position spring as shown.
Spring
E
engages in area
F
.
F01632-10
–
Press the spring with special tool
bl
.
Footrest spring plier (79029083000)
The special tool is applied to area
G
on the footrest.
–
Mount pin
bo
.
F01633-10
–
Mount the washer and splint
bp
.
