2 SETUP
12
F01634-10

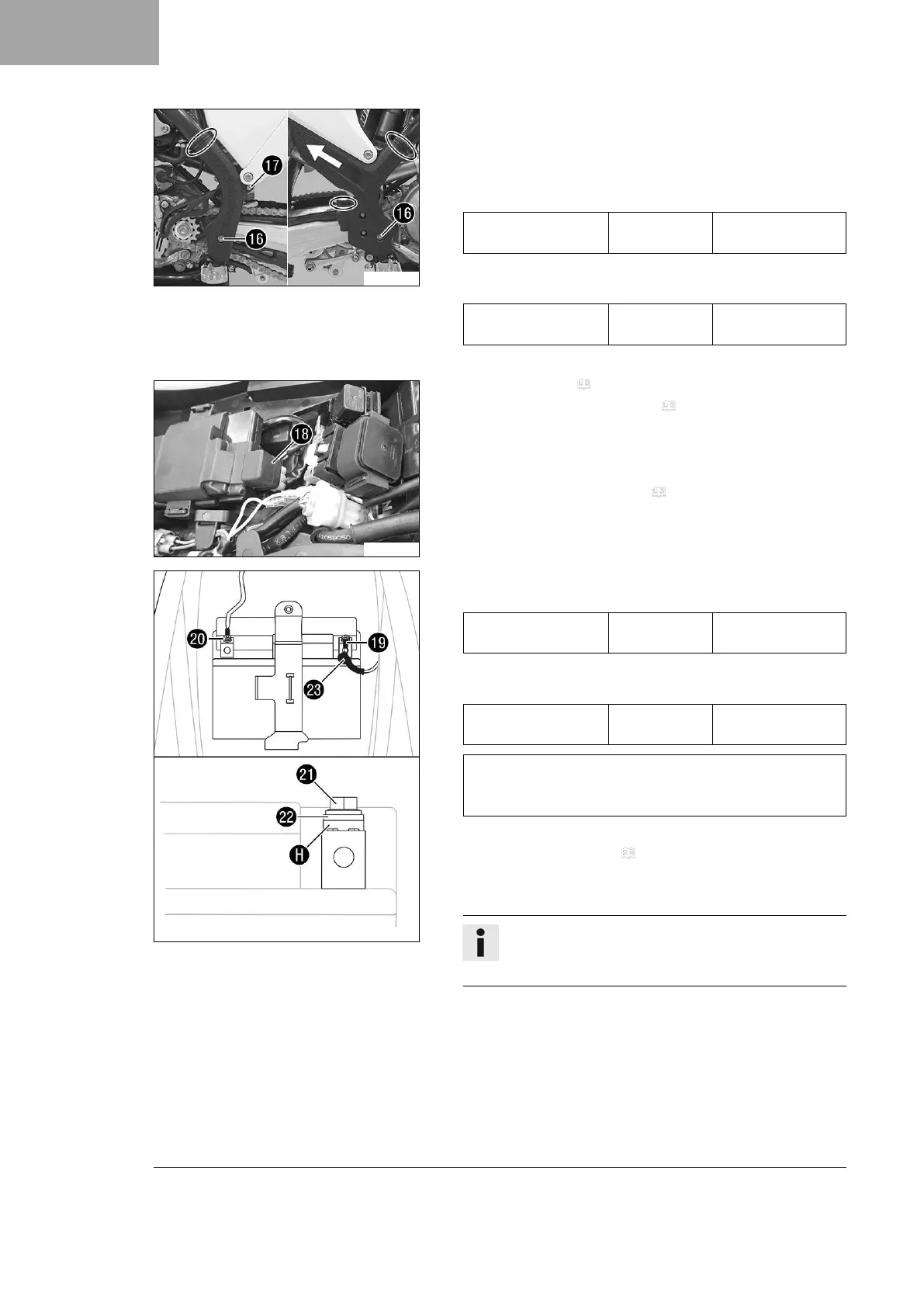

– Position the left frame protector.
– Insert the right frame protector from below and push it to the
rear.
–
Mount and tighten screws
bq
with washers.
Guideline
Screw, frame protec-
tor
M5 3 Nm (2.2 lbf ft)
–
Mount and tighten screw
br
.
Guideline
Screw, frame protec-
tor
M5 3 Nm (2.2 lbf ft)
– Mount the cable ties.
F01635-10
– Remove the seat. ( p. 16)
– Remove the air filter box cover. ( p. 17)
– Route the diagnostics connector and the positive cable
upwards towards the 12-V battery.
–
Position diagnostics connector in holder
bs
.
– Install the air filter box cover. ( p. 18)
F01636-10
–
Connect positive cable
bt
to the 12-V battery.
Guideline
Screw, battery termi-
nal
M5 2.5 Nm
(1.84 lbf ft)
–
Connect negative cable
ck
to the 12 V battery.
Guideline
Screw, battery termi-
nal
M5 2.5 Nm
(1.84 lbf ft)
Contact disks
H
must be mounted under screws
cl
and
cable sockets
cm
with the claws toward the battery termi-
nal.
–
Slide positive terminal cover
cn
over the positive terminal.
– Charge the 12-V battery. ( p. 20)
– Unpack and mount the KTM PowerParts included in the deliv-
ery (optional).
Info
Read the accompanying KTM PowerParts fitting instruc-
tions.
