12 SERVICE WORK ON THE CHASSIS 88
L02192-10
Main work
(RC 200)
–
Loosen nut
.
–
Loosen nuts
.
–

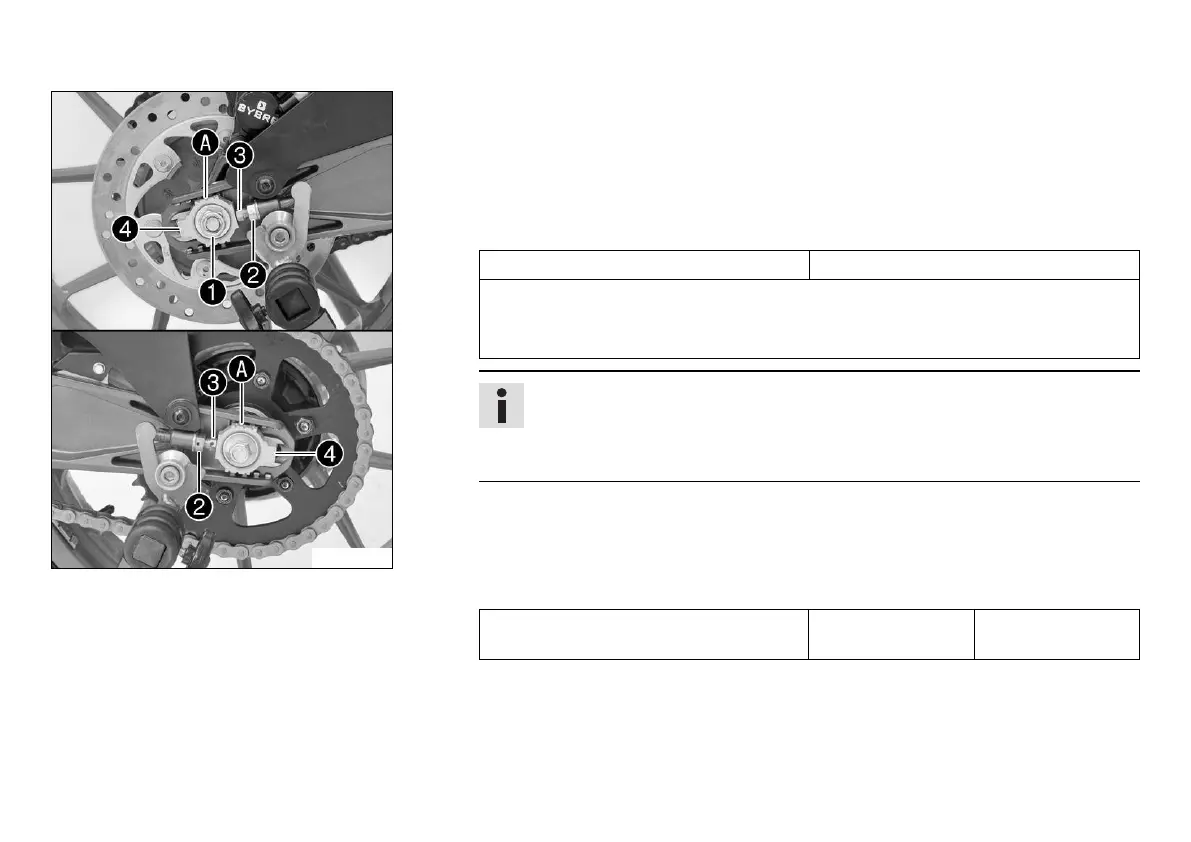

Adjust the chain tension by turning adjusting screws
on the left and right.
Guideline
Chain tension 5… 7 mm (0.2… 0.28 in)
Turn adjusting screws
on the left and right so that the markings on the left
and right chain adjusters
are in the same position in relation to reference
marks
. The rear wheel is then correctly aligned.
Info
The upper chain section must be taut.
Chain wear is not always even, so you should check the setting at different
chain positions.
–
Tighten nuts
.
–
Make sure that chain adjusters
are fitted correctly on adjusting screws
.
–
Tighten nut
.
Guideline
Nut, rear wheel spindle M14x1.5 90 Nm
(66.4 lbf ft)
