3.3 6.571T.XXX.X0X:IncrementalInputA,B

Theunitprovidestwoinputsatterminal5and7forHTLsignals.

Thecharacteristicsoftheincrementalinput(PNP,NPN,NamurorTri‐State)canbesetin

theGENERALMENU.



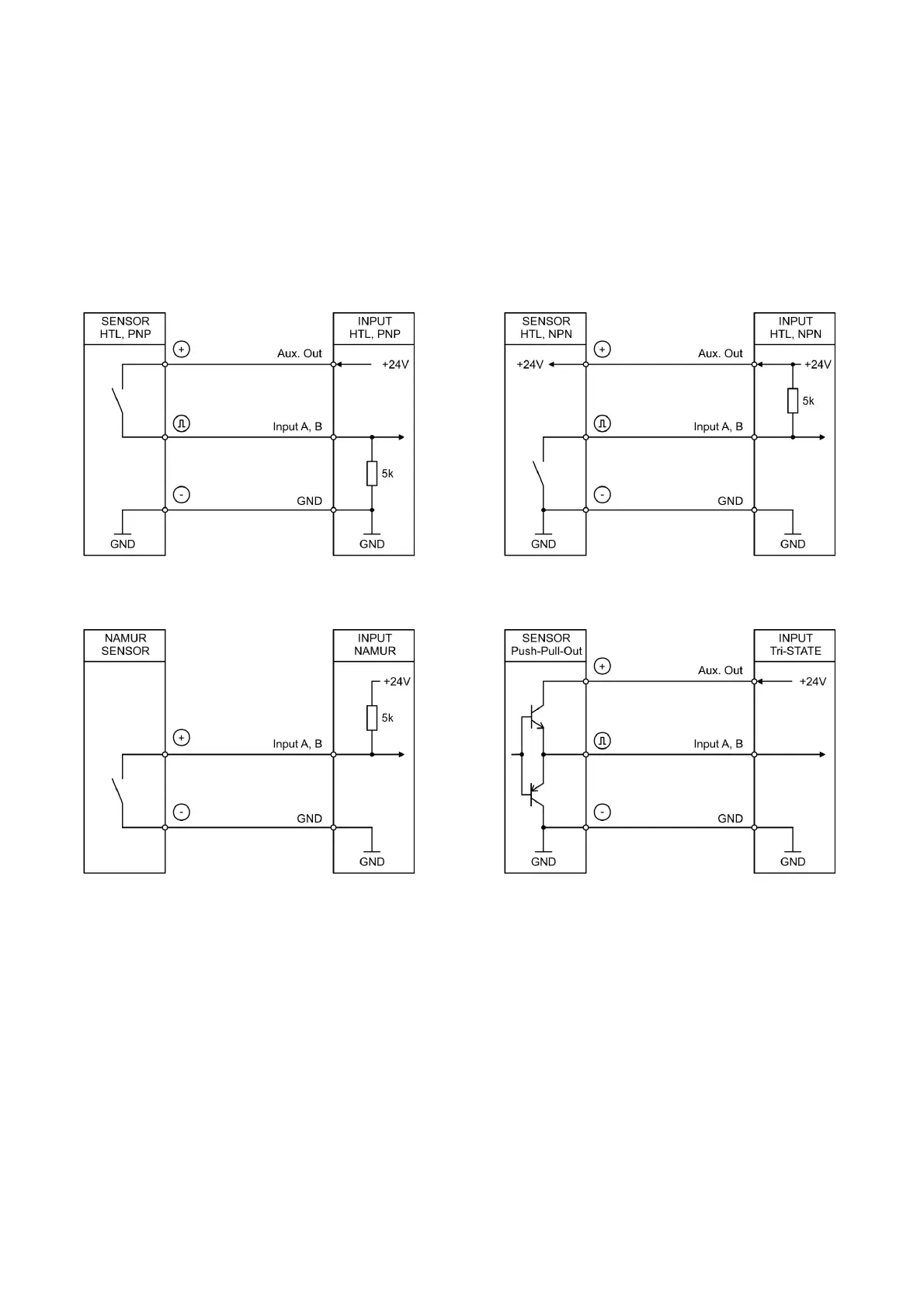

Wiringoftheincrementalinputs: 



PNPNPN



Namur



 Tri‐State



UnconnectedPNPinputsarealways“LOW”andunconnectedNPNinputsarealways

“HIGH”.

Allinputsaredesignedtoreceiveimpulsesfromelectricalimpulsesources.



Noticeformechanicalswitchingcontacts:

Whenexceptionallymechanicalcontactsareused,pleaseconnectanexternalcapacitor

betweenGND(‐)andthecorrespondinginput(+).A

capacityof10µFwillreducetheinput

frequencyto20Hzandmiscountingduetocontactbouncingwillbe eliminated.


