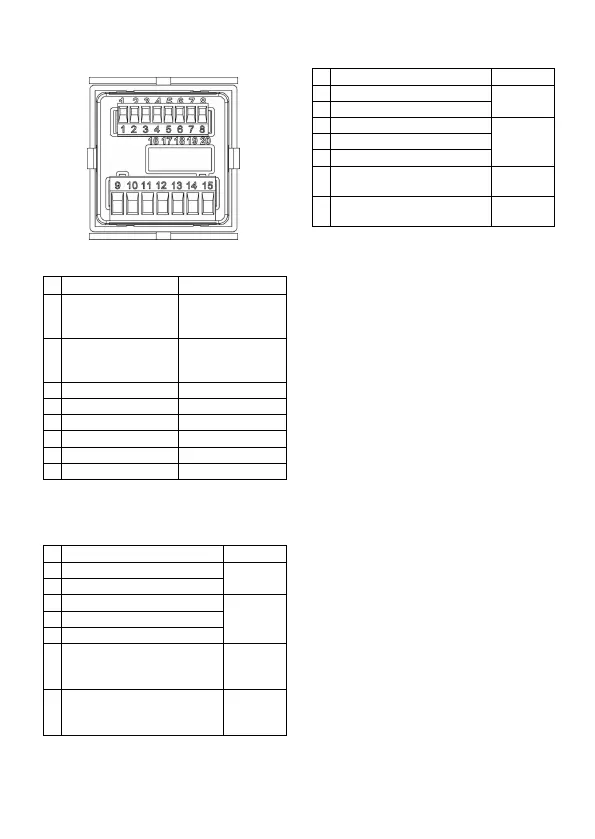

9 Connections
9.1 Signal and Control Inputs
N°
Designation Function
1 AC: 24 VDC/80 mA
DC: U
B connected
through
Sensor supply
voltage
2 GND (0 VDC) Common connection
Signal and Control
inputs
3 INP A Signal input A
4 INP B Signal input B
5 RESET Reset input
6 LOCK Keypad lock
7 GATE Gate input
8 MPI User input
9.2 Supply voltage and Outputs
9.2.1 Version with relays
N°
Designation Function
9 Relay contact C.1
Output 1
10
Relay contact N.O.1
11
Relay contact C.2
Output 2
12
Relay contact N.O.2
13
Relay contact N.C.2
14
AC: 100 … 240 VAC ± 10% N~
AC: 24 VAC N~
DC: 10..30 VDC
Supply
voltage
15
AC: 100 … 240 VAC ± 10% L~
AC: 24 VAC L~
DC: GND (0 VDC)
Supply
voltage
9
.2.2 Version with Optocouplers
N°
Designation Function
9 Collector 1
Output 1
10
Emitter
11
Emitter 2
Output 2
12
Not connected
13
Collector 2
14
AC: 100 … 240 VAC ± 10% N~
DC: 10..30 VDC
Supply
voltage
15
AC: 100 … 240 VAC ± 10% L~
DC: GND (0 VDC)
Supply
voltage
10 Technical Data
10.1 General Data
Display LCD positive or negative,
backlit
2 x 6-digit
Digit height upper line 9 mm
lower line 7 mm
special characters 2 mm
Overload/ Blinking, 1 s
Underload Counter loses up to 1 decade
no pulses
Data retention > 10 years, EEPROM
Operation 8 keys
10.2 Pulse counter
Count frequency max. 55 kHz (see section 13.
frequencies typ.)
Response time of the outputs:
Relays
Add/Sub/Trail < 13 ms
With automatic repeat < 13 ms
A/B ; (A-B)/A < 34 ms
Optocouplers
Add/Sub/Trail < 1 ms
With automatic repeat < 1 ms
A/B ; (A-B)/A < 23 ms
10.3 Tacho/Frequency meter
Frequency range 0,01 Hz to 65 kHz (see
section 13. frequencies typ.)
In case of frequencies
<10 Hz, the waiting time must
be increased accordingly to
obtain the display of a value.
Measuring ≤ 76.3 Hz Time interval
principle (period measurement)
> 76.3 Hz Gate time
Gate time approx.13.1 ms
Measuring error < 0.1% per channel
