Kubler Codix 924 - Pulse Counting Input Modes; Basic Pulse Counting Modes

14 Input modes: Pulse counting

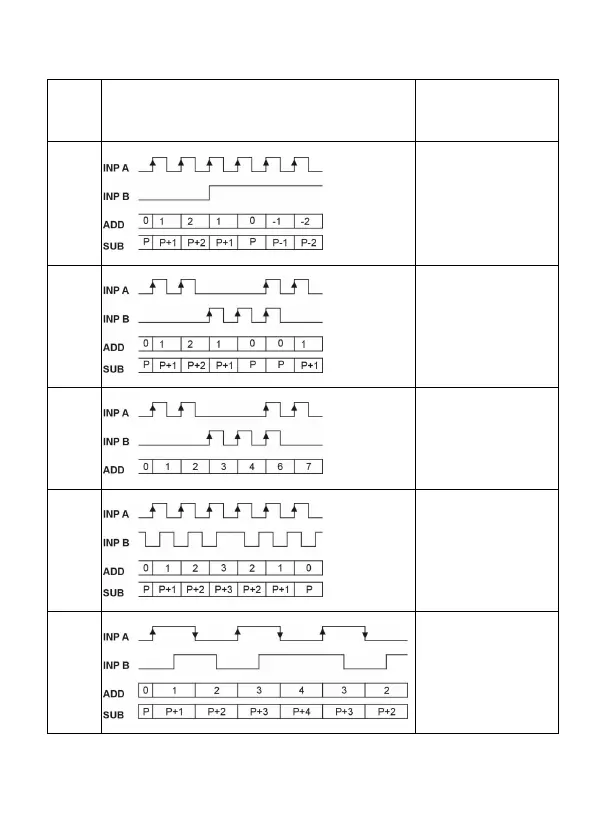

Function Diagram
Note: No counting when GATE input is active
P = Preset
PNP: Count on rising edge
NPN: Count on falling edge
Cnt.Dir
Inp A: Count input
Inp B: Count direction
Add: Display 0 --> Preset
Sub: Display Preset -> 0
Up.Dn
Inp A: Count input add
Inp B: Count input sub
Add: Display 0 --> Preset
Sub: Display Preset -> 0
Up.Up
Inp A: Count input 1 add
Inp B: Count input 2 add
Add: Display 0 --> Preset
Quad
A 90° B
Inp A: Count input
Count on one edge
Inp B: Reverse direction
Add: Display 0 --> Preset
Sub: Display Preset -> 0
Quad 2
A 90° B
Inp A: Count input
Count on rising and on falling
edges
Inp B: Reverse direction
Add: Display 0 --> Preset
Sub: Display Preset -> 0
