Kubler Codix 924 - Quadrature Pulse Counting Modes

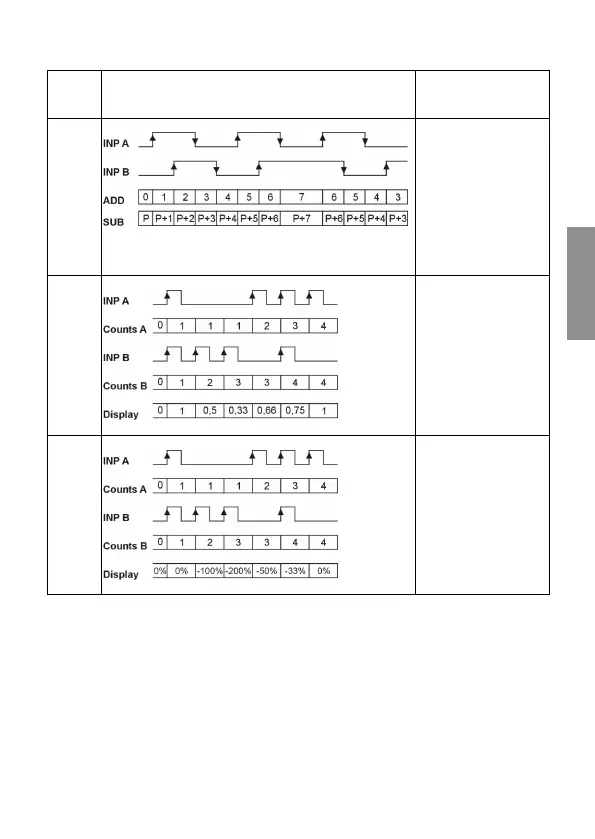

Function Diagram
Note: No counting when GATE input is active
PNP: Count on rising edge
NPN: Count on falling edge
Quad 4
A 90° B
Inp A: Count input
Count on rising and on
falling edges
Inp B: Count input
Count on rising and on
falling edges,
Reverse direction
Add: Display 0 --> Preset
Sub: Display Preset -> 0
A / B
Inp A: Count input 1
Inp B: Count input 2
Formula:
A / B
(A-B)/A
Inp A: Count input 1
Inp B: Count input 2
Formula:
(A – B)/A x100
e
n
g
l
i
s
h
