TRANSMISSION
B2301, B2601, WSM
2-M14
4. SPEED SET DEVICE
[1] SPEED SET LINKAGE
(1) Speed Set
The speed set device mainly consists of HST pedal holding section and HST pedal releasing section.
When the HST pedal (1) is see to the desired position, the lever (2) turns counter clockwise.
The speed set lever (3) to the "ON" position.
The speed set holder (4) turns counter clockwise.
On the other hand, sine lever engage with tooth (6) of speed set holder (4), the HST pedal (1) is held at the desired
set position until the brake pedals (5) will be depressed by an operator.
9Y1211156TRM0011US0

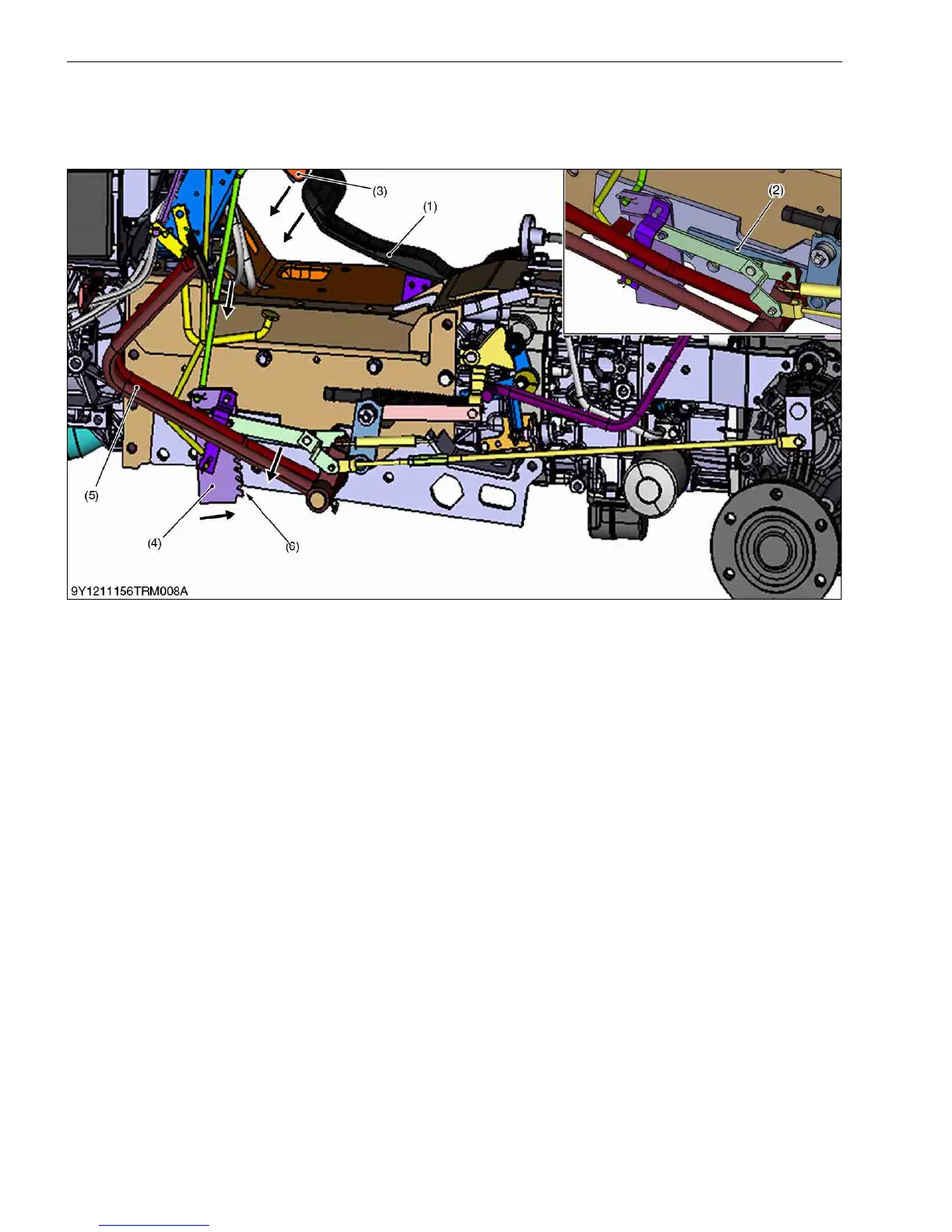

(1) HST pedal
(2) Lever
(3) Speed Set Lever
(4) Speed Set Holder
(5) Brake Pedal (6) Tooth
KiSC issued 11, 2014 A
