ENGINE
B2301, B2601, WSM
1-S25

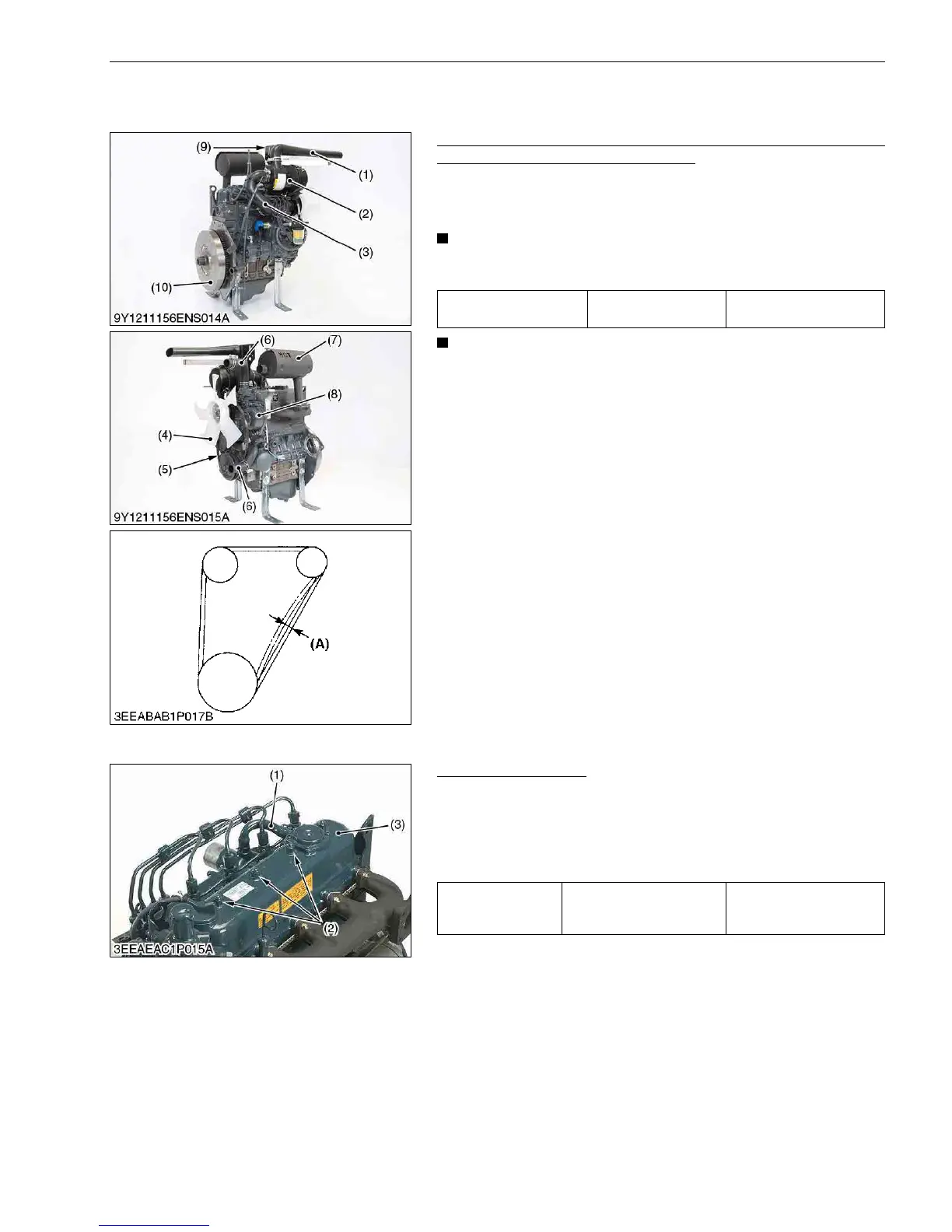

[3] DISASSEMBLING AND ASSEMBLING
(1) External Components
Fan, Water Hose, Fan Belt, Dynamo, Muffler, Air Cleaner, Air
Cleaner Bracket, Inlet Hose and etc.
1. Remove the external components as shown in the picture.
(When reassembling)
• Check to see that there are no crack on the fan belt surface.
• When remove the compressor, condenser and receiver, be
careful not to damage the hose bind.
9Y1211156ENS0032US0
(2) Cylinder Head and Valve and Oil Pan
Cylinder Head Cover
1. Disconnect the breather hose (1).
2. Remove the head cover nut (2).
3. Remove the cylinder head cover (3).
(When reassembling)
• Check to see if the cylinder head cover gasket is not damaged.
9Y1211156ENS0033US0
Fan belt deflection (A) Factory specification
7.0 to 9.0 mm
0.28 to 0.35 in.
(1) Inlet Hose
(2) Air Cleaner
(3) Inlet Hose
(4) Fan
(5) Fan Belt
(6) Water Hose
(7) Muffler
(8) Dynamo
(9) Air Cleaner Bracket
(10) Steel Plate
(A) Deflection
Tightening torque Cylinder head cover nut
7 to 8 N·m
0.7 to 0.9 kgf·m
5 to 6 lbf·ft
(1) Breather Hose
(2) Head Cover Nut
(3) Cylinder Head Cover
To Next Page
