GENERAL
B2301, B2601, WSM
G-1
1. TRACTOR
IDENTIFICATION
When contacting your local KUBO
TA distr
ibutor, always specify
engine serial number
, tractor serial number and hour mete
r reading.

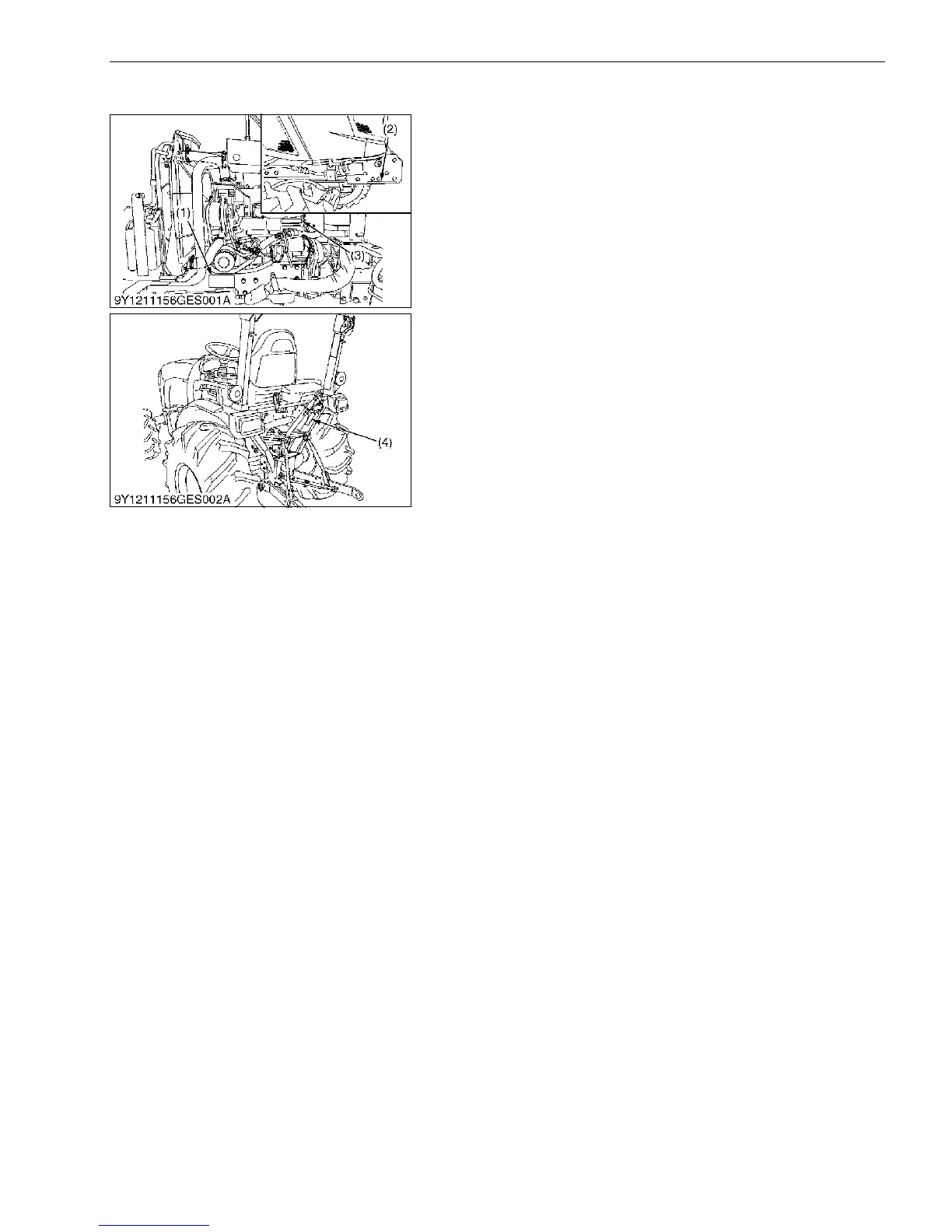

9Y1211156GEG0001US0
(1)
Tractor Identification Plate
(2)
Tractor Serial Number
(3)
Engine Serial Number
(4)
ROPS Identification Plate
(ROPS Serial Number)
KiSC issued 11, 2014 A
15
17
Table of Contents
Information
4
Table of Contents
4
Safety First
5
Safety Decals
8
Specifications
11
Traveling Speeds
12
Dimensions
13
General
15
1 Tractor Identification
16
2 General Precautions
17
3 Handling Precautions for Electrical Parts and Wiring
18
Wiring
18
Battery
20
Fuse
20
Connector
20
Handling of Circuit Tester
21
Color of Wiring
22
4 Lubricants, Fuel and Coolant
23
5 Tightening Torques
26
General Use Screws, Bolts and Nuts
26
Stud Bolts
26
Metric Screws, Bolts and Nuts
27
American Standard Screws, Bolts and Nuts with Unc or Unf Threads
27
Plugs
27
6 Maintenance Check List
28
7 Check and Maintenance
30
Daily Check
30
Check Points of Every 50 Hours
34
Check Points of Every 100 Hours
36
Check Points of Every 200 Hours
40
Check Points of Every 400 Hours
43
Check Point of Every 800 Hours
45
Check Point of Every 1500 Hours
45
Check Point of Every 3000 Hours
45
Check Point of Every 1 Year
45
Check Points of Every 2 Years
46
Others
48
8 Special Tools
50
Special Tools for Engine
50
Special Tools for Tractor
57
9 Tires
60
Tire Pressure
60
Wheel Adjustment
61
Front Wheels
61
Rear Wheels
63
Ballast
65
10 Implement Limitations
67
Servicing
74
1 Troubleshooting
75
2 Servicing Specifications
79
3 Tightening Torques
85
Tractor Section
85
Engine Section
85
4 Checking, Disassembling and Servicing
86
Checking and Adjusting
86
Engine Body
86
Cooling System
88
Lubricating System
88
Fuel System
91
Preparation
95
Draining Lubricants and Coolant
95
Separating Engine from Clutch Housing
97
Separating Engine from Front Axle Frame
98
Disassembling and Assembling
99
Cylinder Head and Valve and Oil Pan
99
External Components
99
Gear Case
102
Piston and Connecting Rod
106
Crankshaft
109
Servicing
111
Cylinder Head and Valves
111
Idle Gear and Camshaft
116
Piston and Connecting Rod
118
Crankshaft
121
Cylinder
125
Oil Pump
125
Mechanism
128
1 Structure
129
2 Front Case
130
3 Hydrostatic Transmission
131
Structure
131
Pump and Motor
133
Oil Flow and Valves
134
Control Linkage
141
4 Speed Set Device
142
Speed Set Linkage
142
Speed Set
142
Speed Set Release
143
5 Range Gear Shift Section
144
6 Front Wheel Drive Section
145
7 Pto System
146
Structure
146
Rear Pto Section
147
Rear Pto / MID-Pto Section
148
MID-Pto Section
149
Independent Pto
150
Hydraulic Circuit
150
Independent PTO Control Valve
150
Independent PTO Clutch
151
Independent PTO Lever "Engaged
152
Independent PTO Lever "Disengaged
153
8 Differential Gear System
154
Differential Function
154
Differential Lock
155
Servicing
156
Troubleshooting
157
Servicing Specifications
161
Tightening Torques
163
Checking, Disassembling and Servicing
164
Checking and Adjusting
164
Hst
164
Independent PTO Control Valve
169
Preparation
170
Dismounting the Step and Floor Seat
170
Disassembling and Assembling
176
Front Case
176
Separating Engine and Clutch Housing
176
Hydraulic Transmission (HST)
177
Bevel Pinion Shaft
181
PTO Clutch Case
181
Sub Gear Shaft
182
Front Wheel Drive Shaft
183
Independent PTO Clutch Shifter
185
Independent PTO Clutch
186
MID-PTO Section
190
Differential Gear Section
192
Servicing
194
Hst
194
Independent PTO Clutch
196
Transmission Case
197
Differential Gear
198
Rear Axle
201
Servicing
204
1 Troubleshooting
205
2 Tightening Torques
206
3 Diassembling and Servicing
207
Diassembling and Assembling
207
Separating Rear Axle Case
207
Disassembling Rear Axle Case
208
Servicing
214
Troubleshooting
215
Servicing Specifications
216
Tightening Torques
217
Checking, Disassembling and Servicing
218
Checking and Adjusting
218
Disassembling and Assembling
218
Separating Rear Axle Case
219
Disassembling Rear Axle Case
220
Front Axle
223
Servicing
226
Troubleshooting
227
Servicing Specifications
228
Tightening Torques
229
Checking, Disassembling and Servicing
230
Checking and Adjusting
230
Disassembling and Assembling
231
Separating Front Axle Assembly
231
Disassembling Front Axle Assembly
232
Servicing
238
Mechanism
243
Hydraulic Circuit
244
Steering Controller
245
Steering Cylinder
246
Hydraulic Pump
247
Servicing
248
Troubleshooting
249
Servicing Specifications
251
Tightening Torques
252
Checking, Disassembling and Servicing
253
Checking
253
Hydraulic Pump for Power Steering
253
Relief Valve
253
Disassembling
254
Power Steering Controller
254
Separating Power Steering Controller
254
Power Steering Cylinder
255
Servicing
257
Power Steering Cylinder
257
Hydraulic System
258
Mechanism
259
1 Hydraulic Circuit
260
2 Hydraulic Pump
261
3 Hydraulic Circuit
262
Relief Valve
263
Position Control Valve
264
Structure
264
Operation
265
Feedback Linkage for Position Control
267
4 Front Loader Control Valve
268
Structure
268
Operation
269
5 Remote Control Valve (if Equipped)
276
6 Hydraulic Outlet
277
Servicing
278
1 Troubleshooting
279
2 Servicing Specifications
280
4 Checking, Disassembling and Servicing
282
Checking and Adjusting
282
Hydraulic Pump (for Power Steering, PTO Clutch and HST)
284
3-Points Hitch Relief Valve
286
Lift Arm
286
Disassembling and Assembling
287
Hydraulic Pump
287
3-Point Hitch
288
Separating Hydraulic Cylinder from Tractor Body
288
3-Points Hitch: Hydraulic Cylinder
290
Front Loader Control Valve Assembly (if Equipped)
293
Remote Control Valve (if Equipped)
296
Servicing
296
Electrical System
298
Mechanism
299
2 Engine Starting System and Stopping System
301
Opc System Circuit
301
Controller
302
Engine Starting
304
Safety Switch
305
PTO Clutch Lever Switch
305
PTO Select Lever Switch
305
HST Pedal Switch (HST Model)
306
Seat Switch
306
Starter
307
Engine Stop Solenoid
307
Glow Plug
308
3 Charging System
309
4 Lighting System
310
Head Light
310
Turn Signal Light
310
Hazard Light
311
5 Instrument Panel
312
Easy Checker
312
Switches and Sensors
312
Servicing
314
1 Troubleshooting
315
2 Servicing Specifications
322
3 Tightening Torques
323
4 Checking and Adjusting
324
Battery
324
Fuse
325
Relays
326
Starting System
327
Key Switch
327
Safety Switches
328
Engine Stop Solenoid
329
OPC Controller
329
Starter
329
Glow Plug
330
Charging System
331
AC Dynamo
331
Regulator
331
Lighting System
332
Combination Switch
332
Flasher Unit
334
Warning Lamp, Indicator Lamp and Gauge
334
Instrument Panel
334
Coolant Temperature Sensor
335
Engine Oil Pressure Switch
335
Fuel Sensor
336
5 Disassembling and Assembling
337
Starter
337
Ac Dynamo
338
6 Servicing
339
Starter
339
