TRANSMISSION
B2301, B2601, WSM
2-S27
(7) Front Wheel Drive Shaft
4WD Shaft

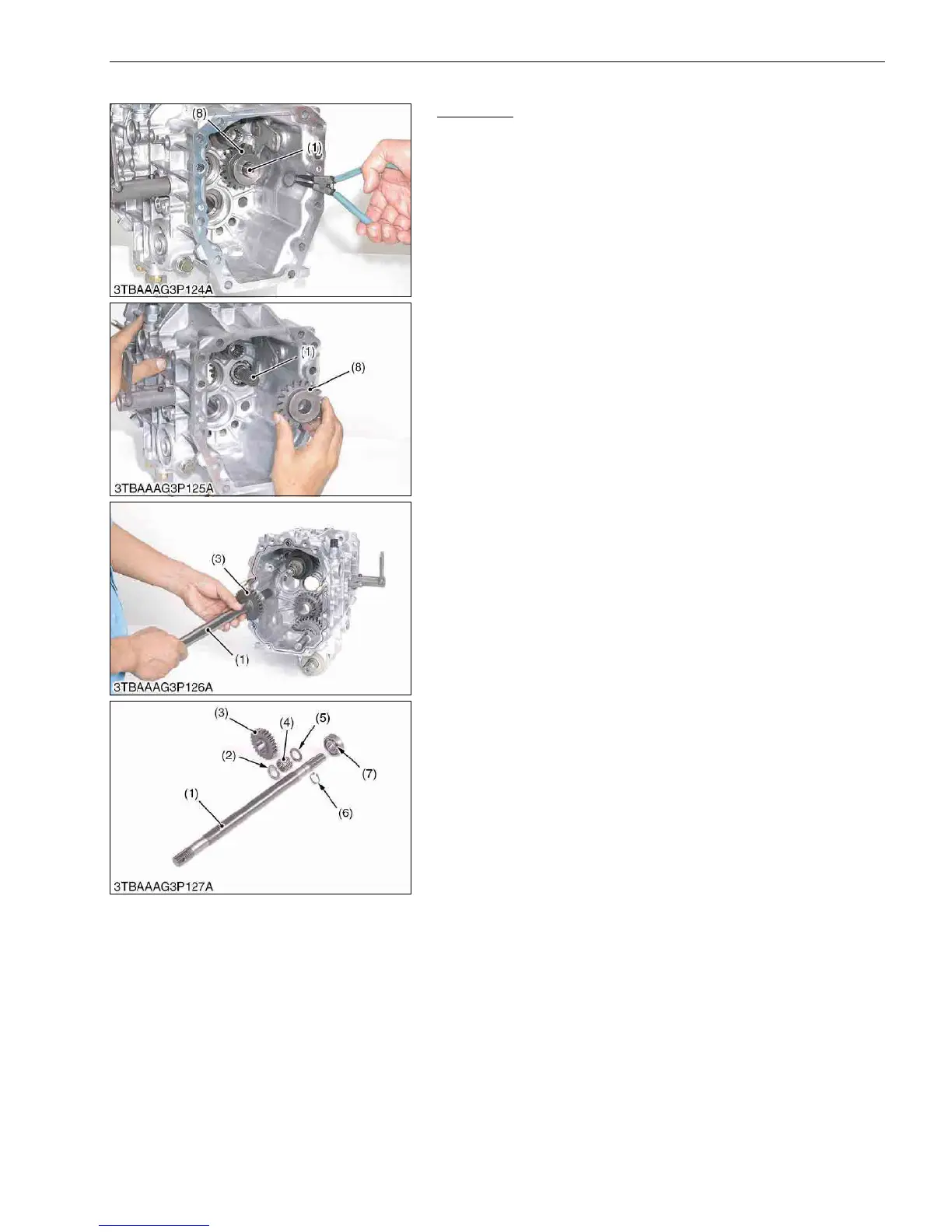

1. Remove the circlip from the 4WD shaft (1).
2. Remove the 4WD gear (8) from the 4WD shaft (1).
3. Remove the 4WD shaft (1) with the 26T gear (3).
4. Remove the 26T gear (3) and the ball bearing (7).
9Y1211156TRS0035US0
(1) 4WD Shaft
(2) Collar
(3) 26T Gear
(4) Needle Bearing
(5) Collar
(6) Circlip
(7) Ball Bearing
(8) 4WD Gear (20T)
