TRANSMISSION
B2301, B2601, WSM
2-S12
Adjusting Neutral
1. Disengage the front wheel drive lever. (Drive only rear wheels.)
2. Lift the rear of the tractor so that the rear wheels are off the
ground and operate the engine at low idling and drive only rear
wheels.
3. Slightly loosen the neutral adjuster setting screw (2).
4. Rotate the neutral adjuster (1) clockwise so the rear wheels turn
reverse.
5. Then rotate it counterclockwise until wheels stop completely.
6. Put a mark on the center frame aligning the groove (3) on
neutral adjuster.
7. Rotate the neutral adjuster (1) counterclockwise so the rear
wheels turn forward.
8. Then rotate it clockwise until wheels stop completely.
9. Put a mark on the center frame aligning the groove (3) on
neutral adjuster.
10. Hold the neutral adjuster so its groove is at the middle of the
marks and tighten the setting screw (2).
• When the wheels tend to turn forward, rotate neutral
adjuster clockwise.
• When the wheels tend to turn reverse, rotate neutral
adjuster counterclockwise.
9Y1211156TRS0008US0

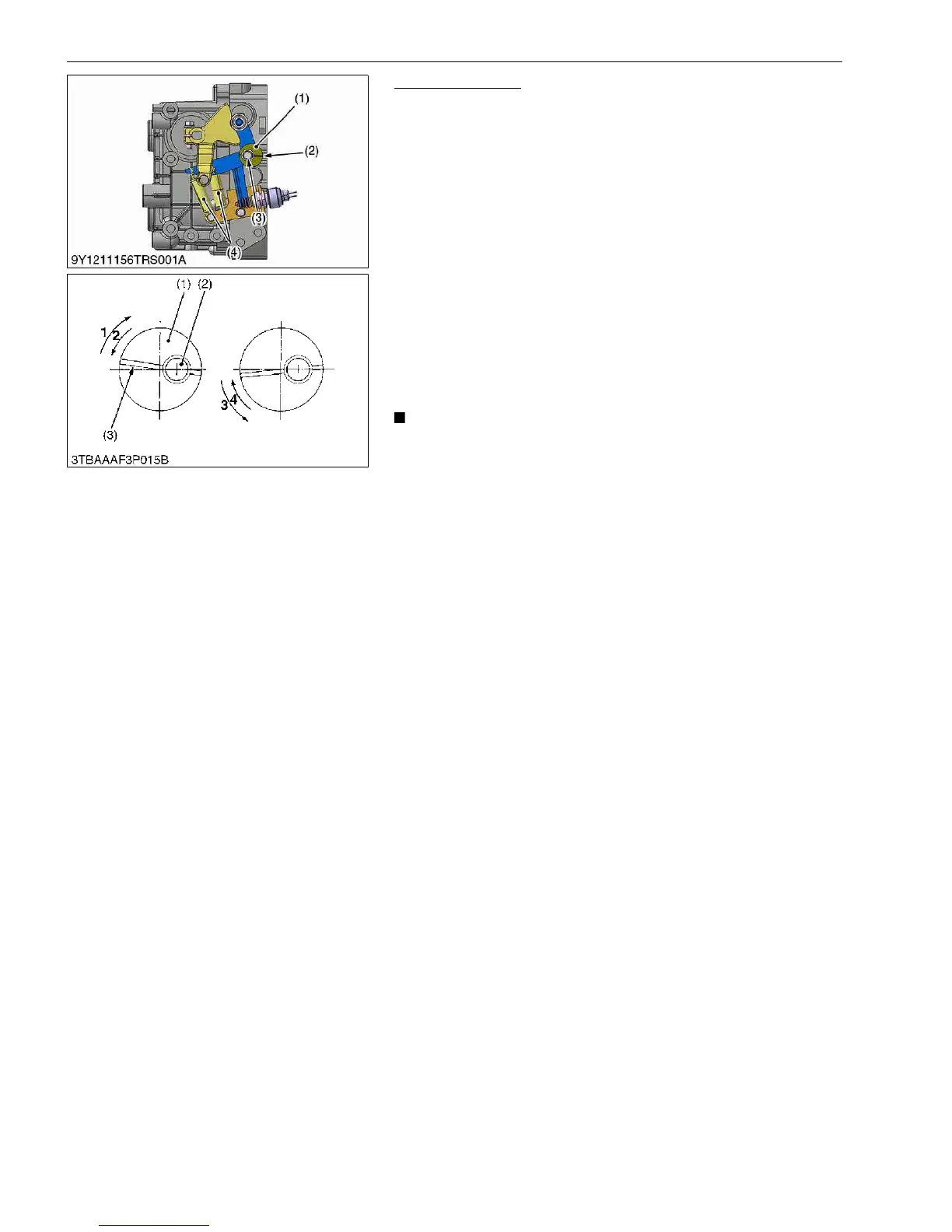

(1) Neutral Adjuster
(2) Neutral Adjuster Setting Screw
(3) Groove
(4) Neutral Spring
1: Neutral Adjustment Stage 1
2: Neutral Adjustment Stage 2
3: Neutral Adjustment Stage 3
4: Neutral Adjustment Stage 4
