STEERING
B2650HSDC, B3350HSDC, WSM
6-S6

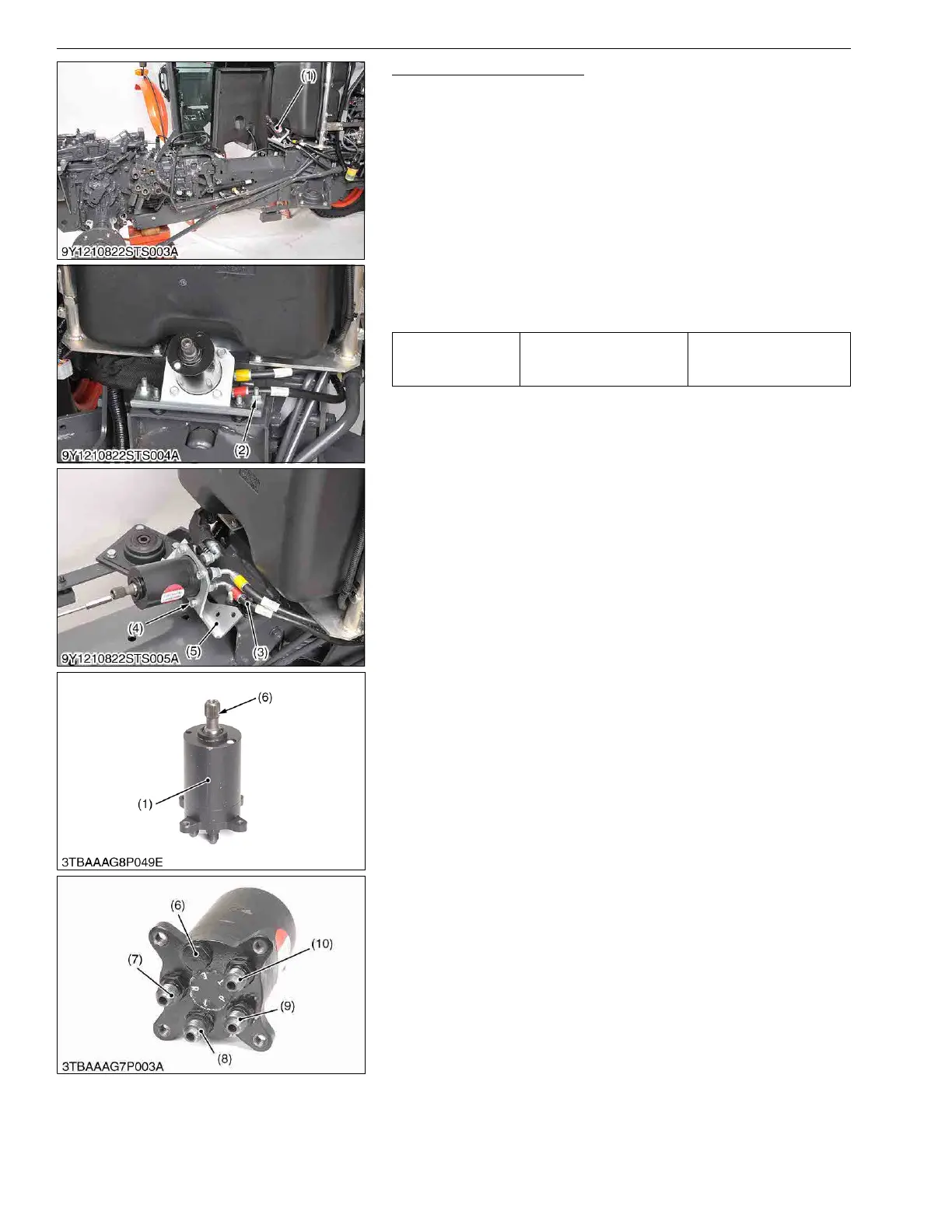

Power Steering Controller
1. Remove the nuts (2).
2. Disconnect the power steering hoses (3) from the power
steering controller (1).
3. Remove the power steering controller mounting bolts (4) from
the stay.
(When reassembling)
• Connect the power steering hoses (3) to the power steering
controller (1) securely.
• If oil leaking from the power steering controller (1) is found,
replace the power steering controller (1). O-ring in the power
steering controller (1) is not supplied as a spare part.
• Align the power steering controller shaft (6) to the universal joint
securely.
9Y1210822STS0007US0
Tightening torque
Power steering controller
for hoses
24 to 28 N·m
2.5 to 2.8 kgf·m
17 to 20 lbf·ft
(1) Power Steering Controller
(2) Nut
(3) Power Steering Hose
(4) Power Steering Mounting Bolt
(5) Stay
(6) Power Steering Shaft
(7) Relief Valve
(8) Adaptor (to Right Cylinder)
(9) Adaptor (to Left Cylinder)
(10) Adaptor (to Hydraulic Pump)
(11) Adaptor (to Oil Cooler)
To Next Page
