ELECTRICAL SYSTEM
B2650HSDC, B3350HSDC, WSM
8-S10

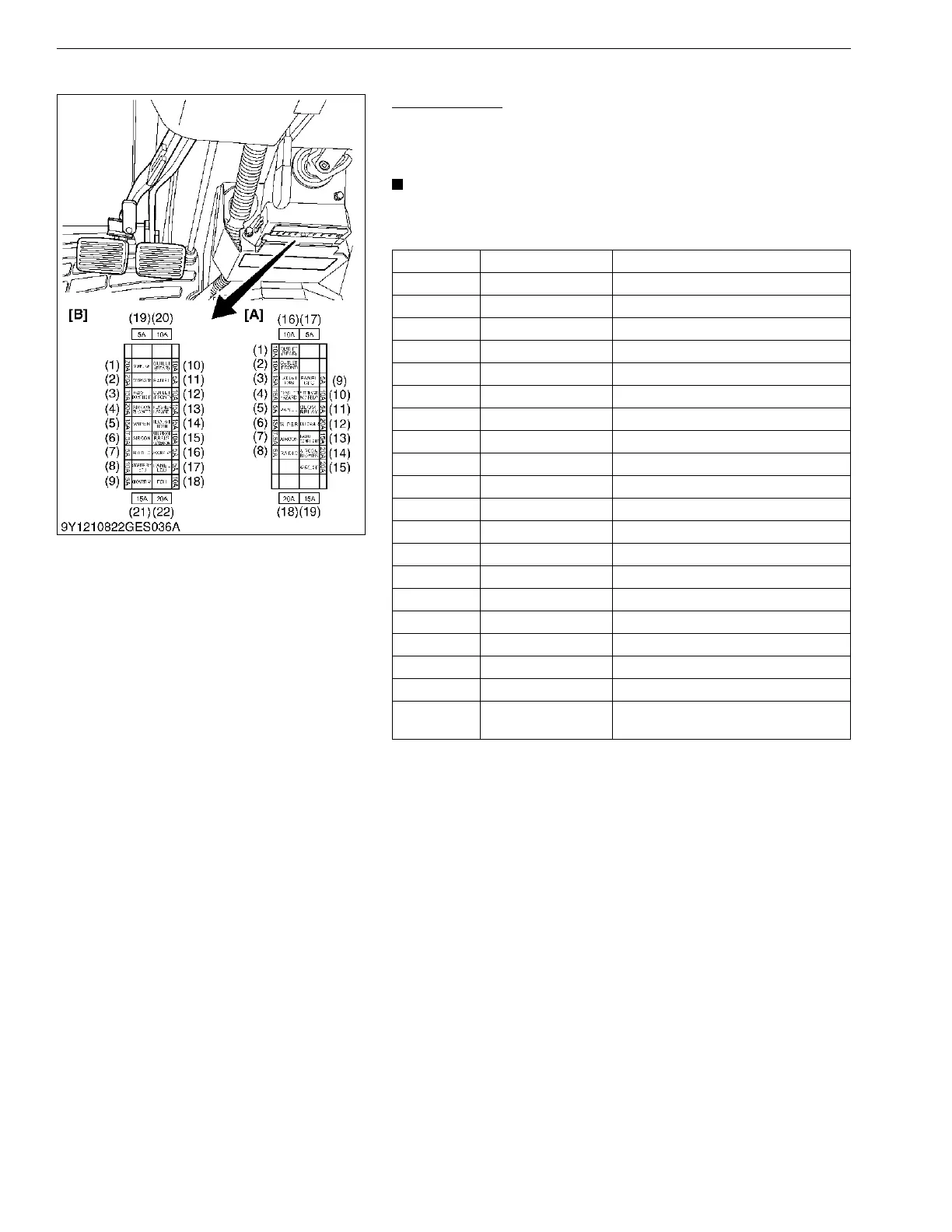

[2] FUSE
Checking Fuse
1. Check the fuse.
2. If any of the fuses is blown, replace it with the one having same
capacity.
• If a fuse is blown, check the cause and be sure to replace it
with the one having same capacity.
[B2650]
(To be continued)
Fuse No. Capacity (A) Protected circuit
(1) 10 Outlet (Rear)
(2) 10 Outlet (Front)
(3) 15 Head Light / Horn
(4) 15 Flasher / Hazard
(5) 5 Panel
(6) 15 Wiper
(7) 7.5 Aircon
(8) 5 Radio
(9) 5 Panel / OPC
(10) 10 Alternator / ACC Relay
(11) 5 Glow Relay
(12) 20 Defogger
(13) 15 Radio / Dome Light
(14) 20 Aircon Blower
(15) 20 Work Light
(16) 10 Spare Fuse
(17) 5 Spare Fuse
(18) 20 Spare Fuse
(19) 15 Spare Fuse
(25) Slow blow fuse
Check circuit against wrong battery
connection
[A] B2650 [B] B3350
To Next Page
