5.5
ELECTRICAL SYSTEM
68
mm
STROKE
SERIES
WSM,
01
160
Factory
spec.
Pinion clearance
0
1
09P045
-I
0.5
to
2.0
mm
0.020
to
0.079
in.
0109F094

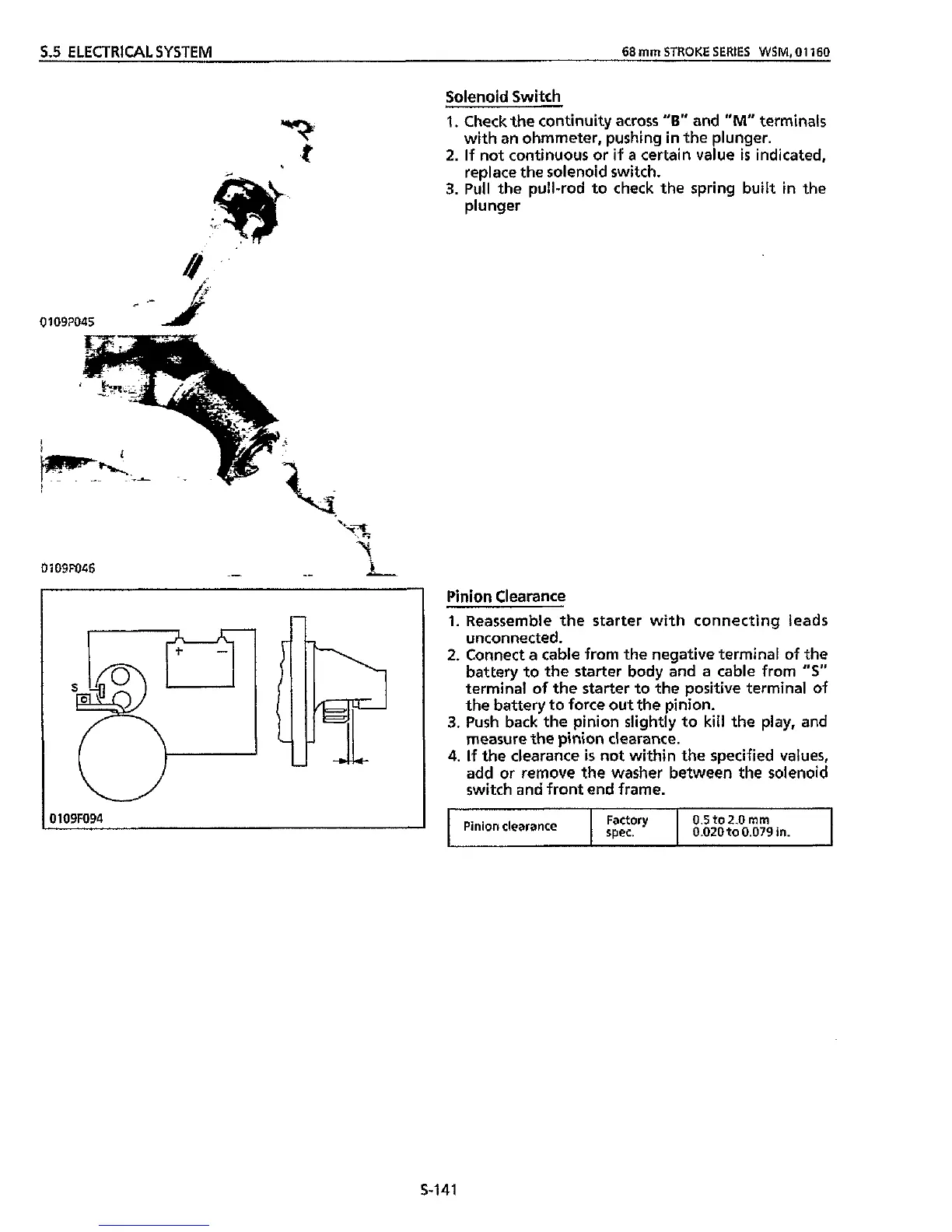

Solenoid
Switch
1.
Check the continuity across
"6"
and
"MI'
terminals
2.
If
not continuous or
if
a
certain value
is
indicated,
3.
Pull the pull-rod to check the spring built
in
the
with an ohmmeter, pushing in the plunger.
replace
the
solenoid switch.
plunger
Pinion Clearance
1.
Reassemble
the
starter
with
connecting leads
unconnected.
2.
Connect a cable from the negative terminal of the
battery to the starter body and a cable from
"S"
terminal of
the
starter
to
the positive terminal of
the
battery to force out the pinion.
3.
Push back the pinion slightly to kill
the
play, and
measure the
pinion
clearance.
4.
If
the
clearance
is
not within the specified values,
add
or
remove
the
washer between
the
solenoid
switch and front end frame.
S-141
