INSTRUMENT PANEL AND CONTROL ELEMENTS

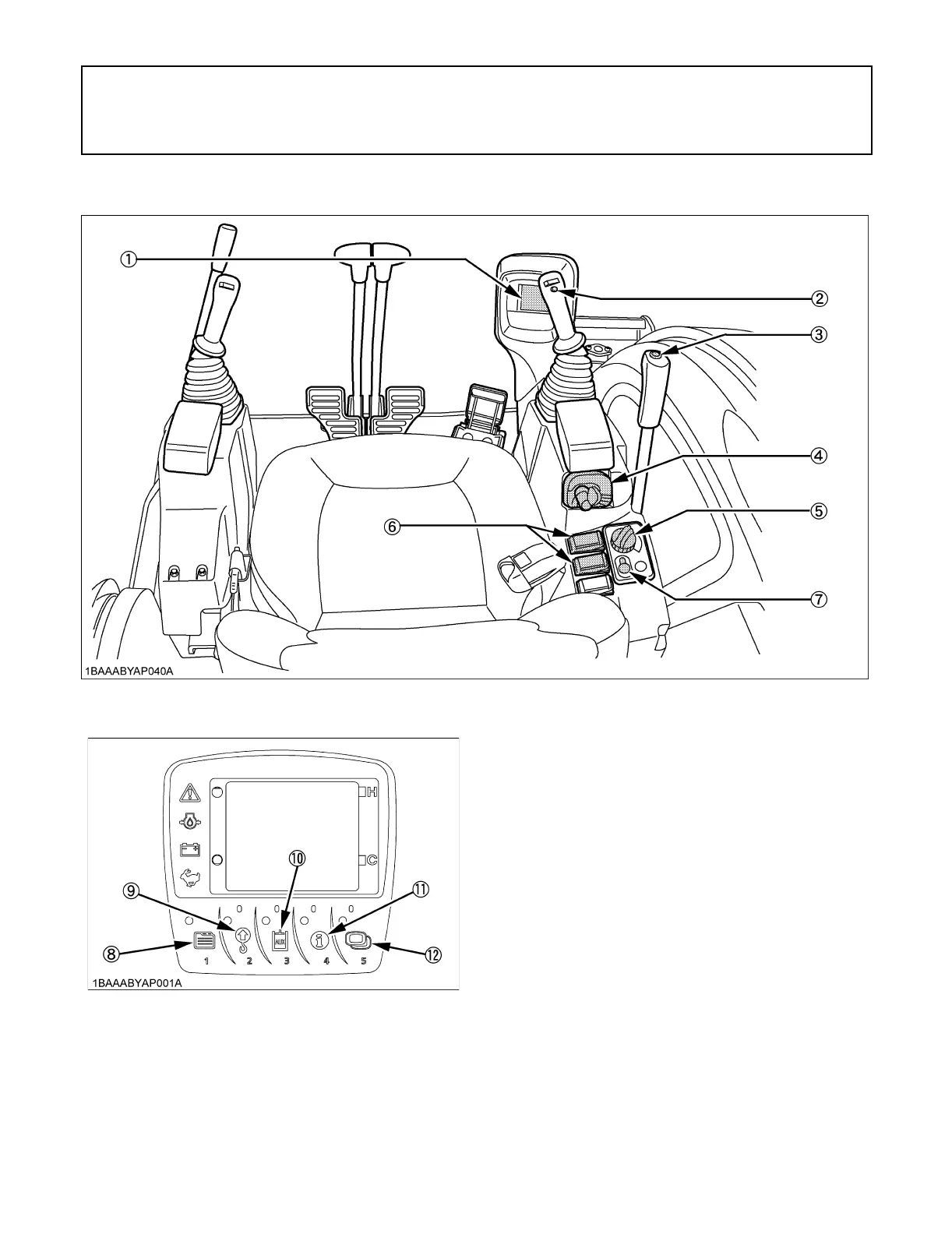

B Instrument Panel, Switch
(1) LCD display
(2) Horn switch
(3) Travel speed switch
(4) Starter switch
(5) Throttle potentiometer
(6) Working light switch
(7) Auto idle control switch
Ref. page
Starter switch............................................................. 7
LCD display................................................................ 9
Fuel gauge
Water temperature gauge
Hour meter
Engine tachometer
Glow lamp
User setting switch
Overload warning switch
AUX port enable switch
Information switch
Display selector switch............................................... 8
(8) User setting switch (Switch 1)
(9) Overload warning switch (Switch 2)
(10) AUX port enable switch (Switch 3)
(11) Information switch (Switch 4)
(12) Display selector switch (Switch 5)
Warning lamp............................................................. 12
Horn switch................................................................ 20
Working light switch................................................... 20
Auto idle control switch............................................... 21
Throttle potentiometer................................................ 21
Travel speed switch................................................... 21
