65MAINTENANCE
OPENING AND CLOSING OF COVERS
BOpening/Closing of the Fuel Tank Cover
Insert the key into the key slot and turn it clockwise to
unlock it. Then press the button to open the tank cover.
To close it, lower the tank cover and push it tightly.
Turn the key counterclockwise to lock the tank cover.
BOpening/Closing of the Engine Hood
To avoid personal injury or death:
A Do not open the engine hood with the engine
running unless in an emergency.
A Do not touch the exhaust muffler or the
exhaust pipe; serious burns can occur.
Insert the key into the key slot and turn it clockwise to
unlock it. And pull the catch to open the hood.
To close the hood, push down it until it locks
automatically.
Turn the key counterclockwise to lock the hood.
BOpening/Closing of the Side Cover
1. Open the engine hood.
2. Raise the catch lever to unlock the side cover.
3. Push the side cover all the way forward, and it will be
held by a link.
4. To close it, pull the side cover all the way back, and
pull down the catch lever to lock the side cover.

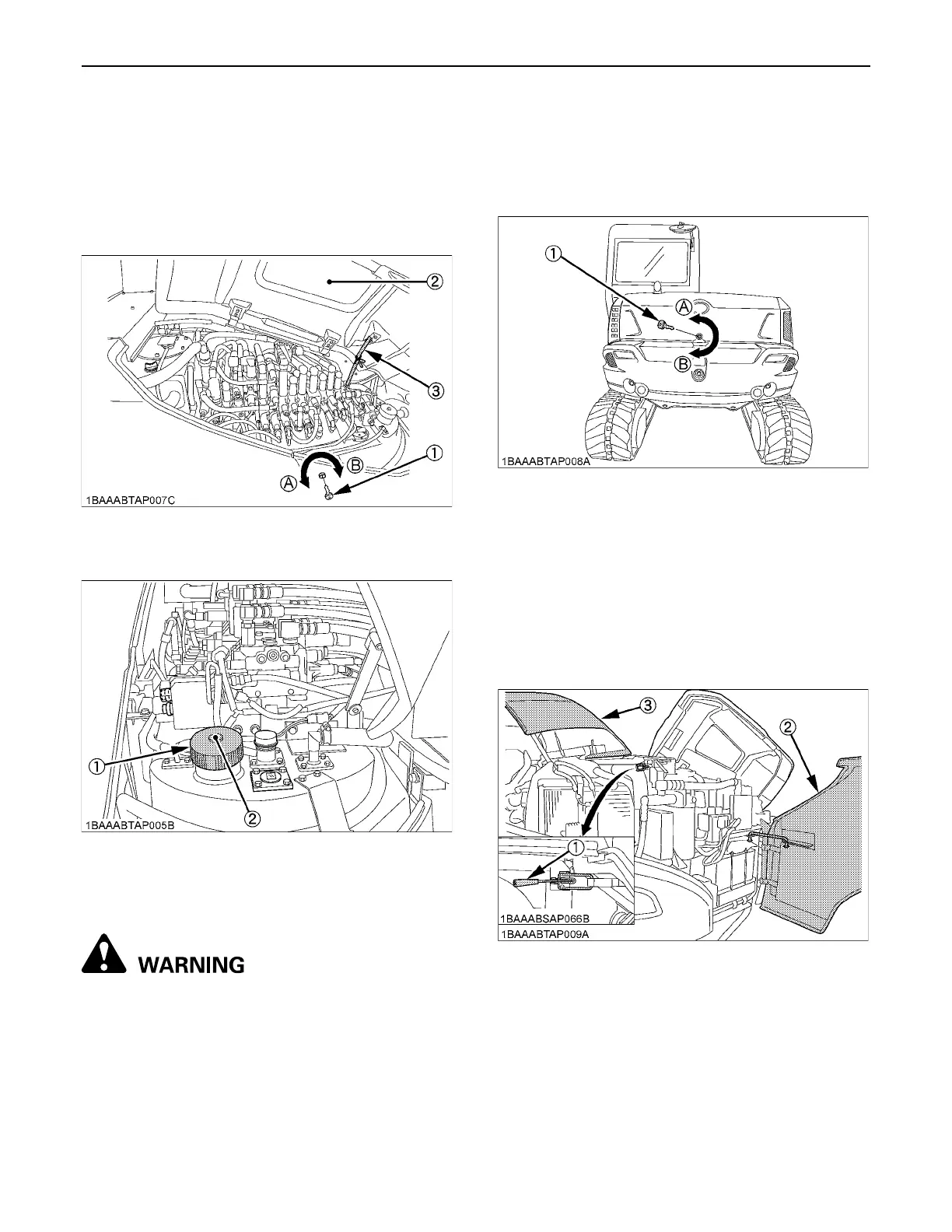

(1) Key
(2) Tank cover
(3) Stay
(A) "LOCK"
(B) "UNLOCK"
(1) Fuel tank cap
(2) Air vent
(1) Key holed (A) "LOCK"
(B) "UNLOCK"
(1) Catch lever
(2) Side cover
(3) Engine hood
