Kubota L3540 Workshop Manual

3-S96
L3540, L4240, L5040, L5240, L5740, WSM
TRANSMISSION

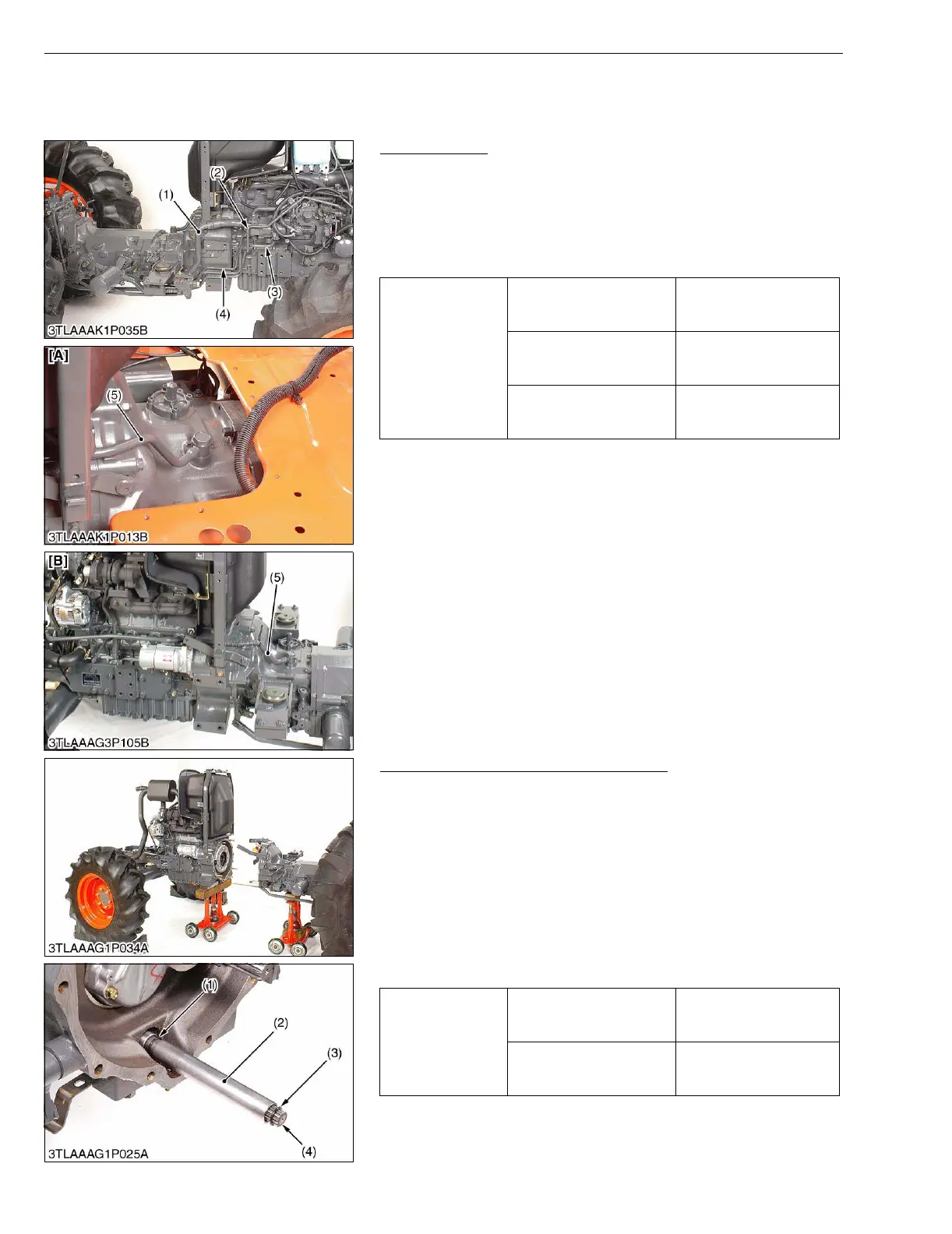

[3] HYDROSTATIC TRANSMISSION MODEL
(1) Clutch Housing
Hydraulic Pipe
1. Disconnect the suction pipe (1) from hydraulic pump.
2. Remove the main delivery pipe 1 (3) and main delivery pipe 2 (4).
3. Disconnect the power steering delivery pipe (2) from regulating
valve.
4. Disconnect the oil cooler pipe (5) from clutch housing case.
(When reassembling)
W1166634
Separating Engine and Clutch Housing
1. Place the disassembling stand under the engine and clutch
housing.
2. Remove the engine and clutch housing mounting screws and
nuts.
3. Separate the engine and clutch housing.
(When reassembling)
• Install the O-rings (1) (3) and collar (2) on the propeller shaft 2 (4)
as shown in the figure.
• Apply grease to the spline of clutch shaft.
• Apply liquid gasket (Three Bond 1211 or equivalent) to joint face
of the flywheel housing and clutch housing.
W1298437
Tightening torque
Joint screw for power
steering delivery pipe
39 to 49 N·m
4.0 to 4.9 kgf·m
29 to 36 lbf·ft
Joint screw for main
delivery pipe 2
39 to 49 N·m
4.0 to 4.9 kgf·m
29 to 36 lbf·ft
Joint screw for oil cooler
88 to 98 N·m
9.0 to 9.9 kgf·m
65 to 72 lbf·ft
(1) Suction Pipe
(2) Power Steering Delivery Pipe
(3) Main Delivery Pipe 1
(4) Main Delivery Pipe 2
(5) Oil Cooler Pipe
[A] ROPS Model
[B] CABIN Model
Tightening torque
Engine and clutch housing
mounting screw
78 to 90 N·m
7.9 to 9.2 kgf·m
58 to 66 lbf·ft
Engine and clutch housing
mounting nut
103 to 117 N·m
10.5 to 12.0 kgf·m
76.0 to 86.7 lbf·ft
(1) O-ring
(2) Collar
(3) O-ring
(4) Propeller Shaft 2
