Kubota L3540 Workshop Manual

6-S8
L3540, L4240, L5040, L5240, L5740, WSM
FRONT AXLE

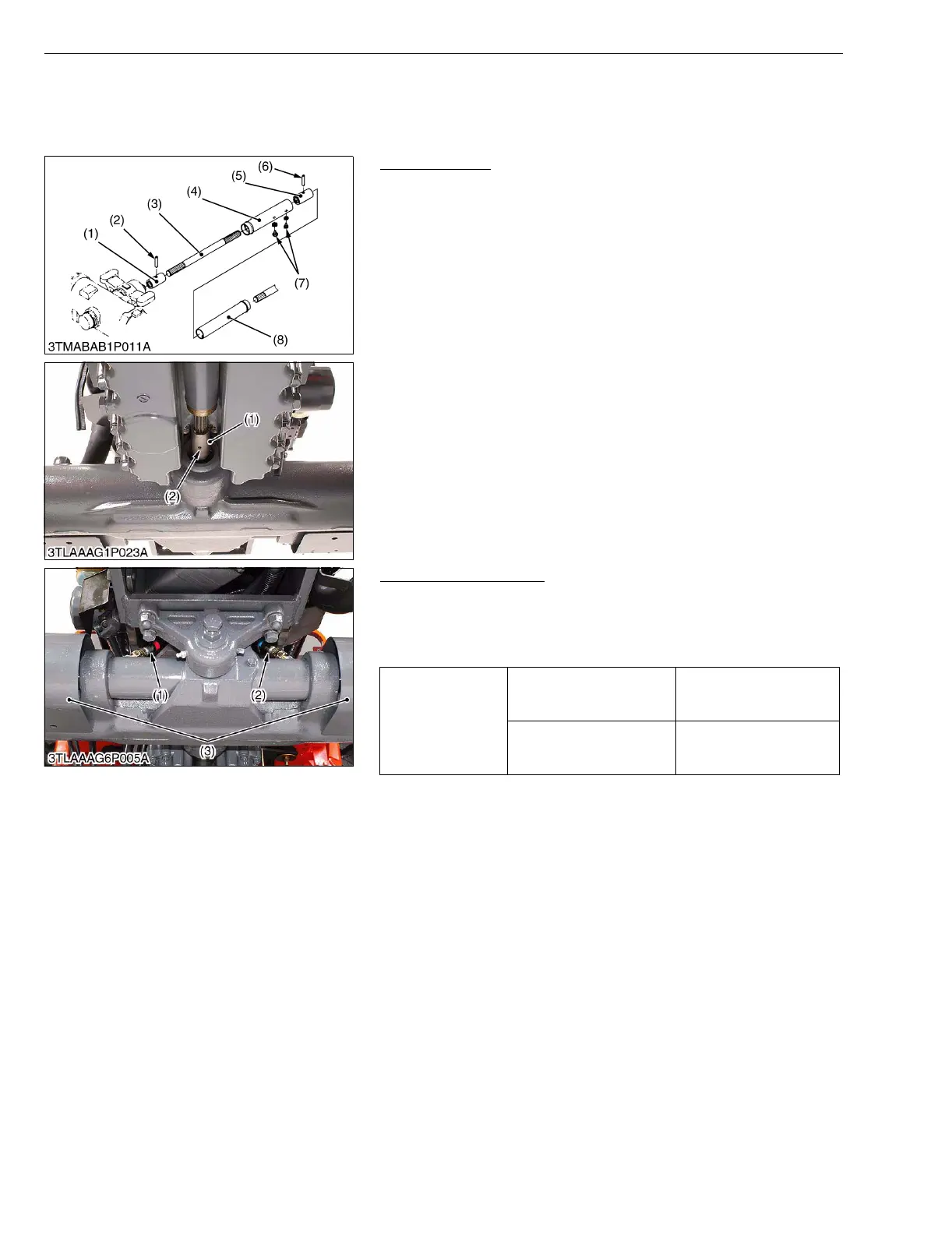

5. DISASSEMBLING AND ASSEMBLING
[1] SEPARATING FRONT AXLE ASSEMBLY
Propeller Shaft
1. Slide the propeller shaft cover (4) and (8) after removing the
screws (7).
2. Tap out the spring pins (2), (6) and slide the couplings (1), (5) and
then remove the propeller shaft with covers (4), (8).
(When reassembling)
• Apply grease to the splines of propeller shaft 1 (3).
W1035934
Power Steering Hoses
1. Disconnect the power steering hoses (1), (2) from steering
cylinder.
2. Remove the cylinder cover.
(When reassembling)
W10225690
(1) Coupling
(2) Spring Pin
(3) Propeller Shaft 1
(4) Propeller Shaft Cover
(5) Coupling
(6) Spring Pin
(7) Screws
(8) Propeller Shaft Cover
Tightening torque
Power steering hose
retaining nut
25 to 29 N·m
2.5 to 3.0 kgf·m
18 to 21 lbf·ft
Cylinder cover mounting
screw
61 to 70 N·m
6.2 to 7.2 kgf·m
45 to 52 lbf·ft
(1) Power Steering Hose, RH
(with Red Tape)
(2) Power Steering Hose, LH
(with Blue Tape)
(3) Cylinder Cover
KiSC issued 04, 2010 A

Kubota L3540 Specifications

General

Drive	4WD
Displacement	111.4 cu in (1.8 L)
Hydraulic System Type	Open center
3-Point Hitch Category	Category I
Tire Size (Rear)	12.4-24
Engine Type	Diesel
PTO Power	29.5 hp
Transmission	Hydrostatic
Number of Gears	3-range
Weight	2601 lbs (1180 kg)
Height	91.7 in (232 cm)
Tire Size (Front)	7-16
