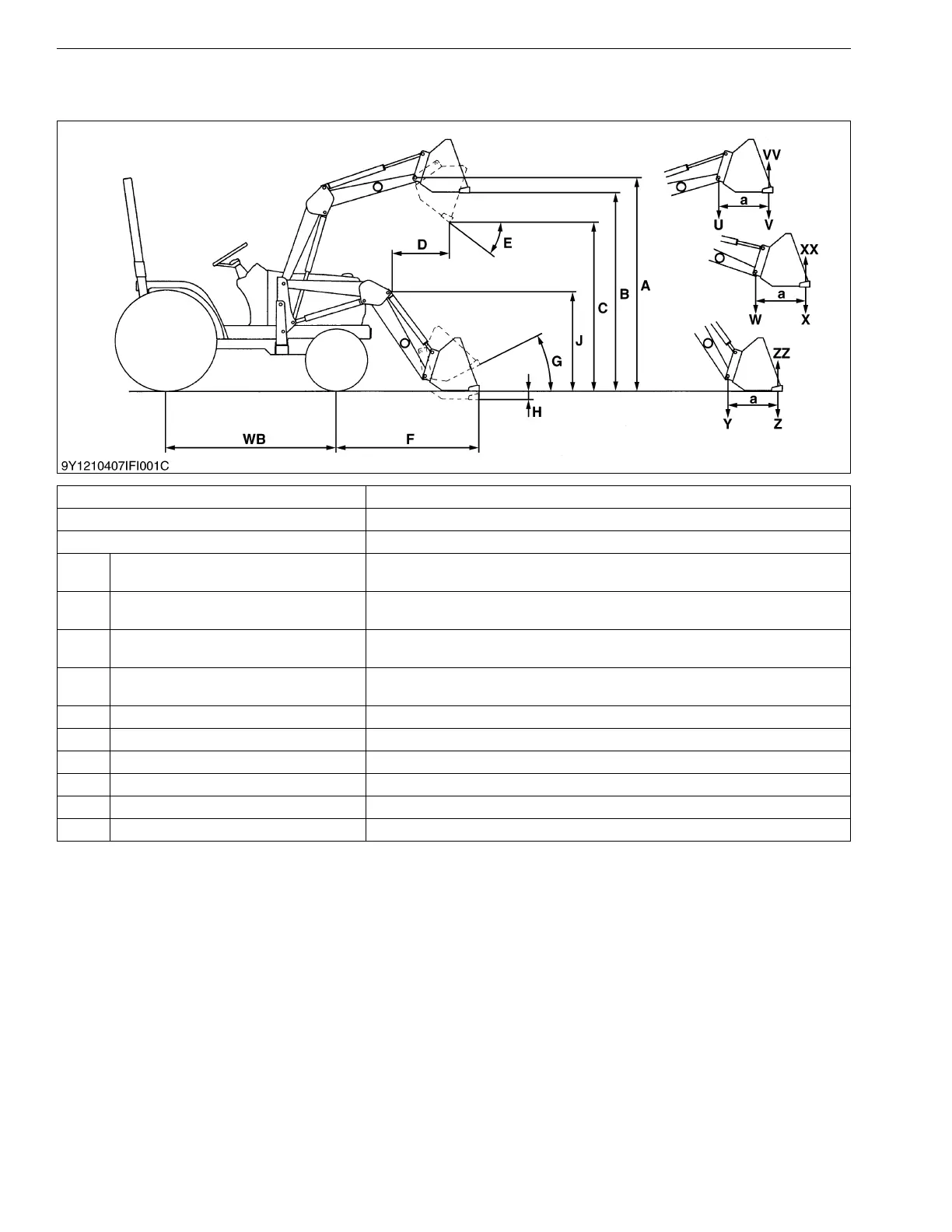

[3] DIMENSIONAL SPECIFICATIONS
(1) LA525
9Y1211014INI0009US0
Loader Model LA525
Tractor Model L2501, L3301, L3901
Bucket Type Rigid
A Maximum lift height (To bucket pivot pin)
2394 mm
(94.3 in.)
B Maximum lift height under level bucket
2224 mm
(87.6 in.)
C Clearance with bucket dumped
1936 mm
(76.2 in.)
D
Reach at maximum lift height
(Dumping Reach)
645 mm
(25.4 in.)
E Maximum dump angle 0.70 rad (40 °)
F Reach with bucket on ground 1618 mm (63.7 in.)
G Bucket roll-back angle 0.54 rad (31 °)
H Digging depth 176 mm (6.9 in.)
J Overall height in carry position 1302 mm (51.3 in.)
a Length 500 mm (19.7 in.)
KiSC issued 06, 2017 A

Kubota LA525 Specifications

General

Loader Model	LA525
Lift Capacity at Pivot Pin	1, 146 lbs (520 kg)
Breakout Force at Pivot Pin	2, 462 lbs
Dump Angle	45 degrees
Bucket Width	1, 500 mm (59 in)
Lift Capacity at Full Height	1, 146 lbs (520 kg)
Breakout Force at 500 mm forward	1, 700 kg (3, 748 lbs)
