FRONT LOADER
LA525, LA765, WSM
1-M8

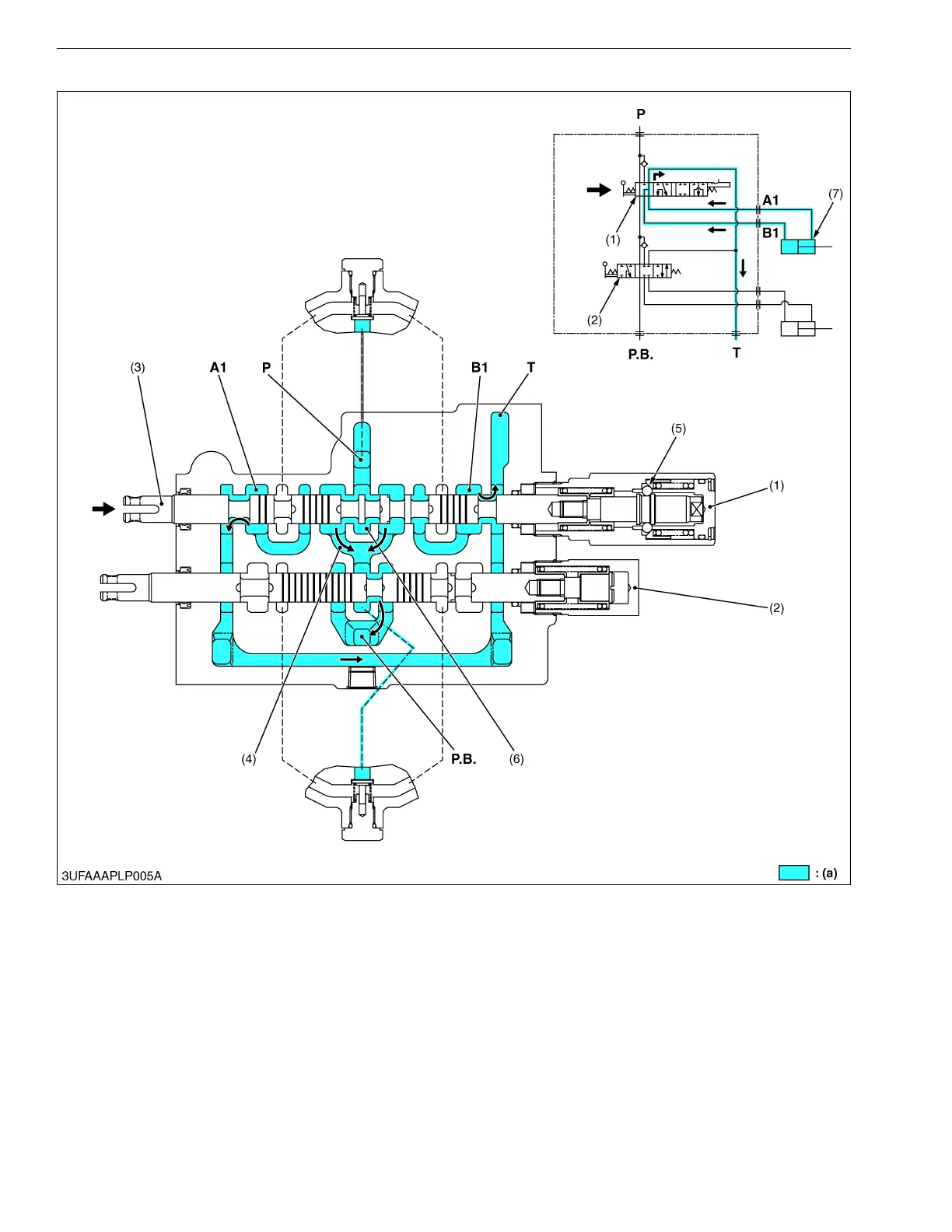

(4) Floating
1. When the hydraulic control lever is set to the "FLOAT" position, the spool (3) moves further to the right from the
"DOWN" position and is retained by the detent mechanism (5).
2. This makes oil passages among the A1 port, B1 port and T port. As a result, oil in the boom cylinder (7) flows
freely from the A1 port and B1 port through the T port to the transmission case.
3. Oil entering the P port flows to the bucket control section (2) through the neutral passage 1 (6) and PB passage
1 (4).
9Y1211014FLM0008US0
(1) Boom Control Section
(2) Bucket Control Section
(3) Spool
(4) PB Passage 1
(5) Detent Mechanism
(6) Neutral Passage 1
(7) Boom Cylinder
P: P Port
T: T Port
A1: A1 Port
B1: B1 Port
PB: PB Port
(a) Low Pressure
KiSC issued 06, 2017 A

Kubota LA525 Specifications

General

Loader Model	LA525
Lift Capacity at Pivot Pin	1, 146 lbs (520 kg)
Breakout Force at Pivot Pin	2, 462 lbs
Dump Angle	45 degrees
Bucket Width	1, 500 mm (59 in)
Lift Capacity at Full Height	1, 146 lbs (520 kg)
Breakout Force at 500 mm forward	1, 700 kg (3, 748 lbs)
