Kubota LA525 User Manual

FRONT LOADER
LA525, LA765, WSM
1-S15

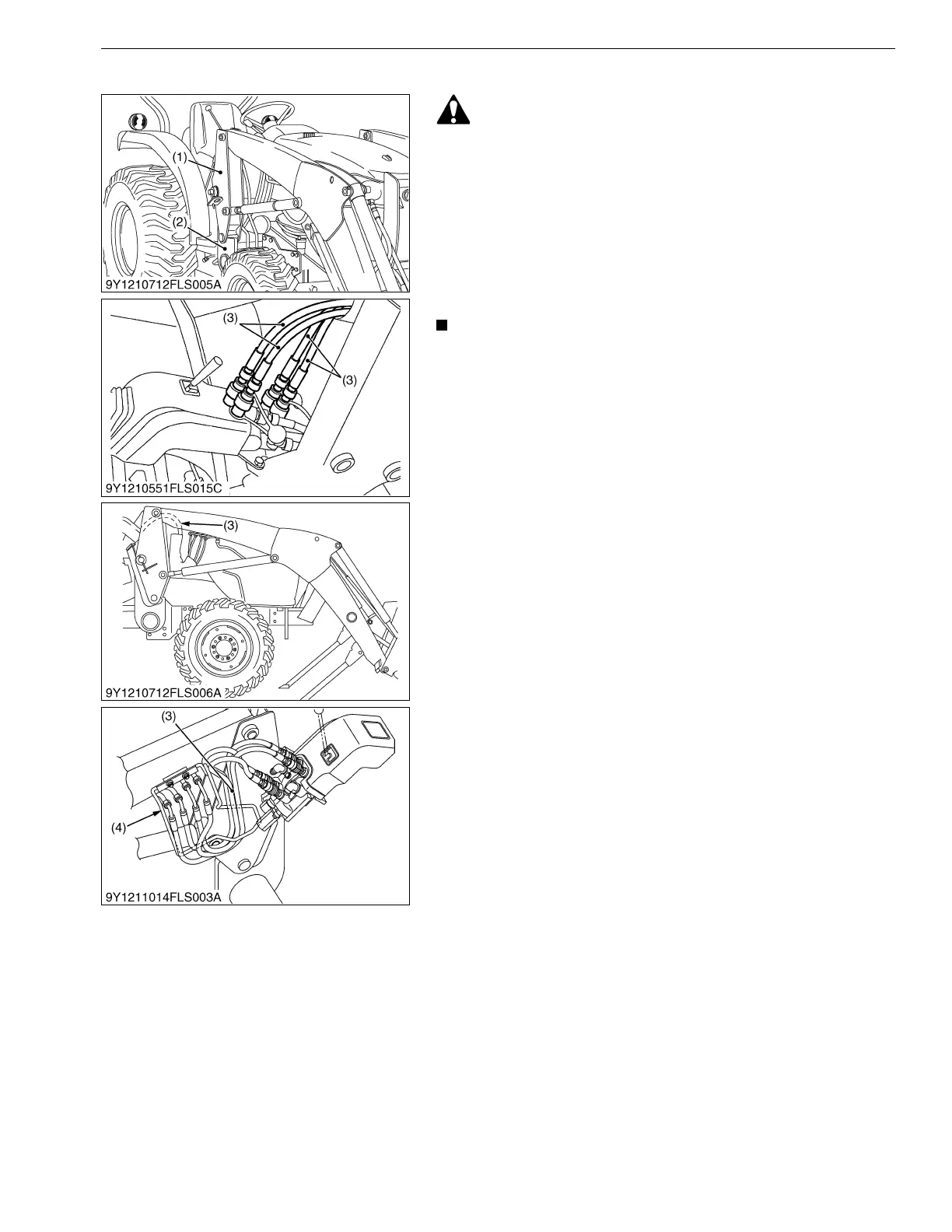

[2] ATTACHING THE LOADER
WARNING
To avoid serious injury:
• Before starting the engine and operating the control valve,
always stay in the operator's seat.
1. Slowly move the tractor between the loader side frames (1) until
the rear portion of both side frames touches the main frames (2)
as shown.
2. Stop the engine.
3. Connect the four hoses (3) with couplers to the fittings on the
control valve as shown with color marks. Then connect the
protective caps and plugs to each other.
NOTE
• Adjust the route of the hoses as shown.
(To be continued)
(1) Loader Side Frame
(2) Main Frame
(3) Hose
(4) Hose Guide
KiSC issued 06, 2017 A

Kubota LA525 Specifications

General

Loader Model	LA525
Lift Capacity at Pivot Pin	1, 146 lbs (520 kg)
Breakout Force at Pivot Pin	2, 462 lbs
Dump Angle	45 degrees
Bucket Width	1, 500 mm (59 in)
Lift Capacity at Full Height	1, 146 lbs (520 kg)
Breakout Force at 500 mm forward	1, 700 kg (3, 748 lbs)
