FRONT LOADER
LA525, LA765, WSM
1-S32

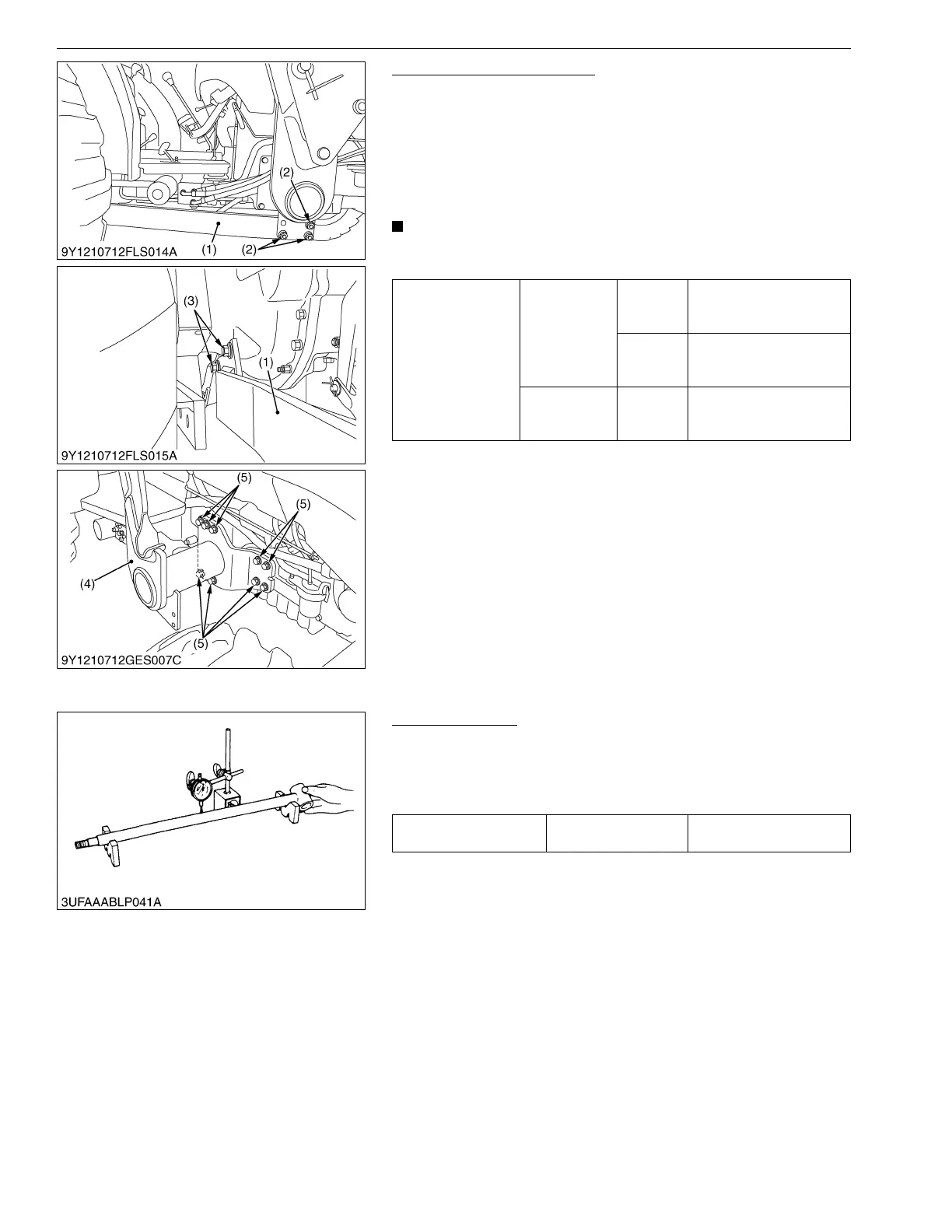

Sub Frame and Main Frame
1. Lift the main frame (4) by hoist to prevent falling during
disassembling.
2. Remove the sub frame mounting bolts (2), (3) and nuts, and
remove the sub frame (1).
3. Remove the main frame mounting bolts (5) and remove the
main frame (4).
(When reassembling)
NOTE
Do not firmly tighten any bolts and nuts until most
components are attached onto the tractor.
9Y1211014FLS0029US0
[3] SERVICING
Piston Rod Bend
1. Set the piston rod on V blocks.
2. Set a dial indicator on the center of the rod.
3. Turn the piston rod and read the dial indicator.
4. If the measurement is more than the allowable limit, replace it.
9Y1211014FLS0030US0
Tightening torque
Sub frame
mounting bolt
and nut
M16
226 N·m
23.0 kgf·m
166 lbf·ft
M12
90.2 N·m
9.20 kgf·m
66.5 lbf·ft
Main frame
mounting bolt
M16
226 N·m
23.0 kgf·m
166 lbf·ft
(1) Sub Frame
(2) Sub Frame Mounting Bolt (M16)
(3) Sub Frame Mounting Bolt (M12)
(4) Main Frame
(5) Main Frame Mounting Bolt
Piston rod bend Allowable limit
0.25 mm
0.0098 in.
KiSC issued 06, 2017 A
