Kubota LA525 User Manual

FRONT LOADER
LA525, LA765, WSM
1-S13

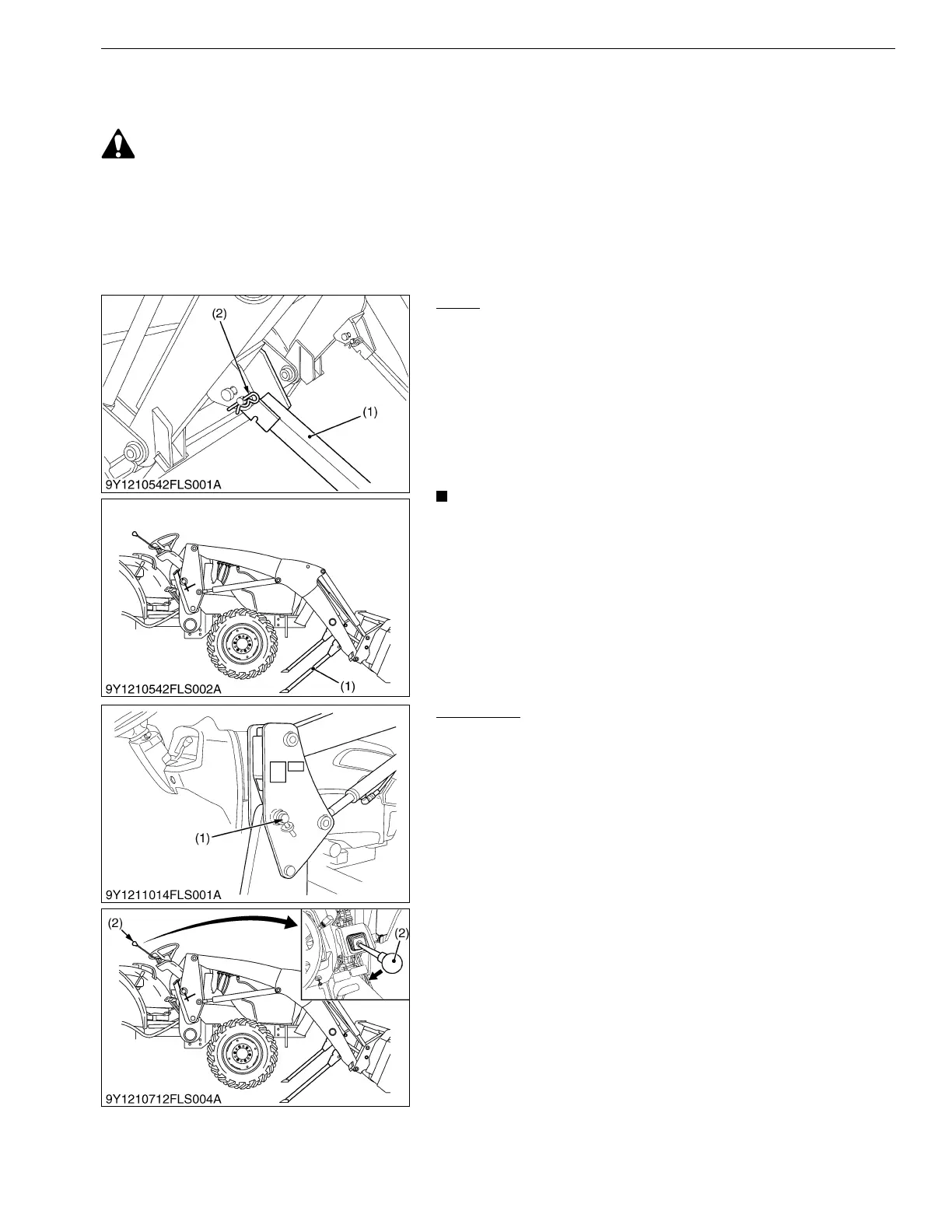

4. REMOVING THE LOADER
[1] REMOVING THE LOADER
WARNING
To avoid serious injury:
• Make sure an approved bucket is attached before removing the loader from the tractor.
• To remove the loader, use flat and hard ground, preferably concrete.
• If the ground surface is soft, set suitable planks on the ground for the bucket and stands.
• Before starting the engine or using the hydraulic control valve, always stay in the operator's seat.
• Make sure the bucket and stands are at ground level.
9Y1211014FLS0004US0
Stand
1. Lift the boom until the stands (1) can turn.
2. Stop the engine.
3. Remove the spring pins (2) holding the stands to the boom.
4. Move the stands outward and turn them until the hole in the
stand and pin on the boom are aligned. Then move the stands
inward and put the spring pin as shown.
5. Start the engine.
6. Dump the bucket approximately 20 degrees.
7. Lower the boom and lift the front wheels slightly.
IMPORTANT
• Lift the front wheels with the bucket. Do not try to lift them
with the stands.
8. Stop the engine.
9Y1211014FLS0005US0
Side Frame
1. Remove the mounting pins (1) from the loader main frame and
hold them on the side frames.
2. Start the engine and keep at idle. Slowly move the loader
control lever (2) to rollback position to lift the loader side
frames up and out of the receivers of the main frames as shown.
3. Stop the engine.
9Y1211014FLS0006US0
(1) Stand (2) Spring Pin
(1) Mounting Pin (2) Loader Control Lever
KiSC issued 06, 2017 A

Kubota LA525 Specifications

General

Loader Model	LA525
Lift Capacity at Pivot Pin	1, 146 lbs (520 kg)
Breakout Force at Pivot Pin	2, 462 lbs
Dump Angle	45 degrees
Bucket Width	1, 500 mm (59 in)
Lift Capacity at Full Height	1, 146 lbs (520 kg)
Breakout Force at 500 mm forward	1, 700 kg (3, 748 lbs)
