(See TROUBLESHOOTING on page 143.)
[LX2610/LX3310 ROPS model]
[LX3310 ROPS model]
[LX3310 ROPS model]
[LX2610/LX3310 ROPS model]
[LX3310 ROPS model]

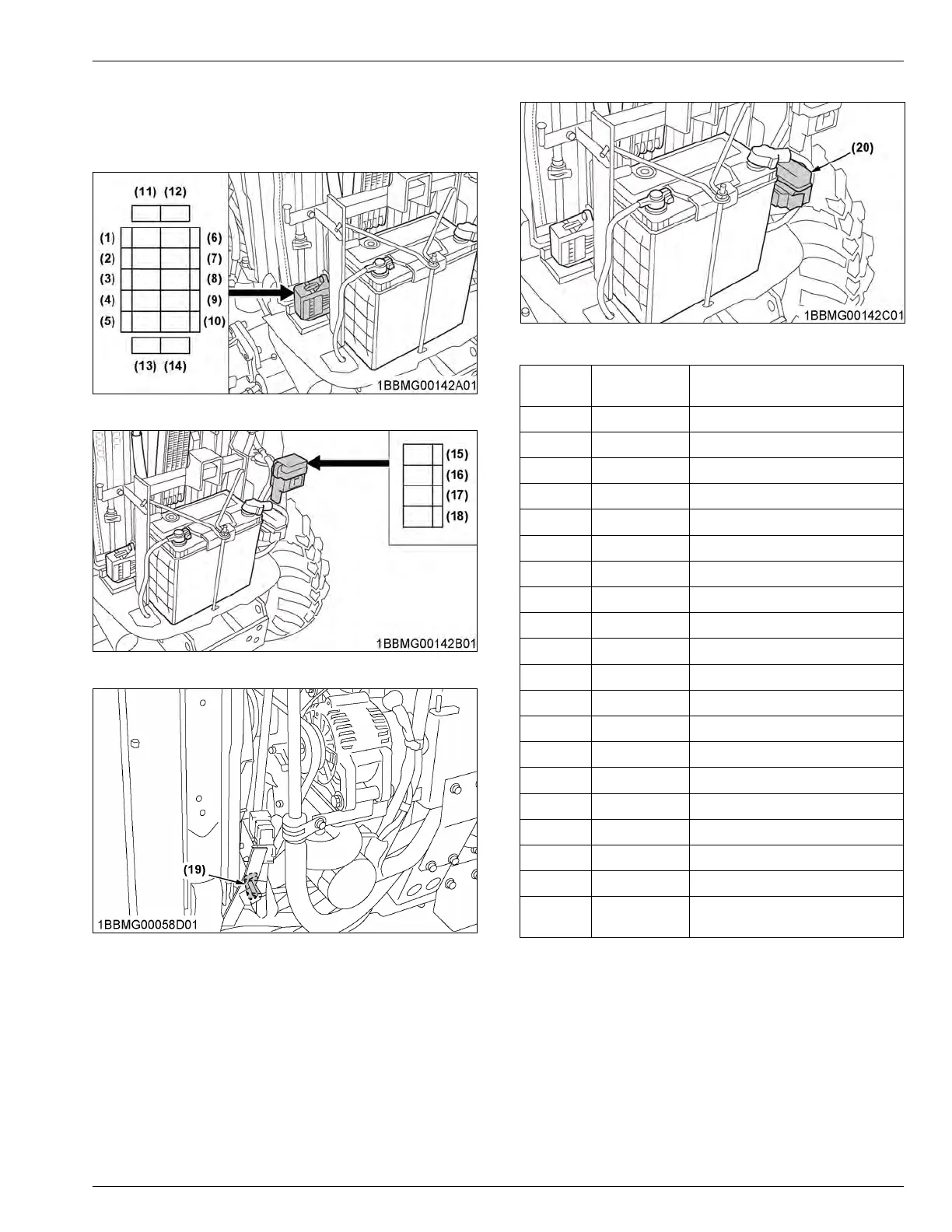

Fuse No.
Capacity
(A)
Protected circuit
(1) 10 Key switch
(2) 10 ECU
(3) 5 Panel, OPC
(4) 5 Alternator
(5) 10 ACC relay
(6) 5 ECU
(7) 15 Outlet (rear)
(8) 15 Outlet (right side)
(9) 5 Panel
(10) 15 Flasher, hazard
(11) 5 Spare fuse
(12) 10 Spare fuse
(13) 15 Spare fuse
(14) 30 Spare fuse
(15) 30 Engine ECU
(16) 5 EGR, air heater
(17) 5 Air flow sensor
(18) 5 Main ECU
(19) 30 Starter relay
(20) Slow blow
fuse
Check circuit against wrong battery
connection
SERVICE AS REQUIRED PERIODIC SERVICE
LX2610,LX3310
137

Kubota LX2610 Specifications

General

Engine Type	Diesel
Engine Horsepower	24.8 HP
PTO Horsepower	19.5 HP
Transmission Type	Hydrostatic
3-Point Hitch	Category I
Lift Capacity at 24 inches behind lift point	1, 323 lbs
Drive	4WD
Cylinders	3
Fuel Type	Diesel
PTO Speed	540 RPM
Hydraulic System Type	Open center
Width	54.9 inches
Height	87.4 inches
Number of Gears	3-range
Tire Size (Front)	25x8.50-14
Tire Size (Rear)	11.2-24
