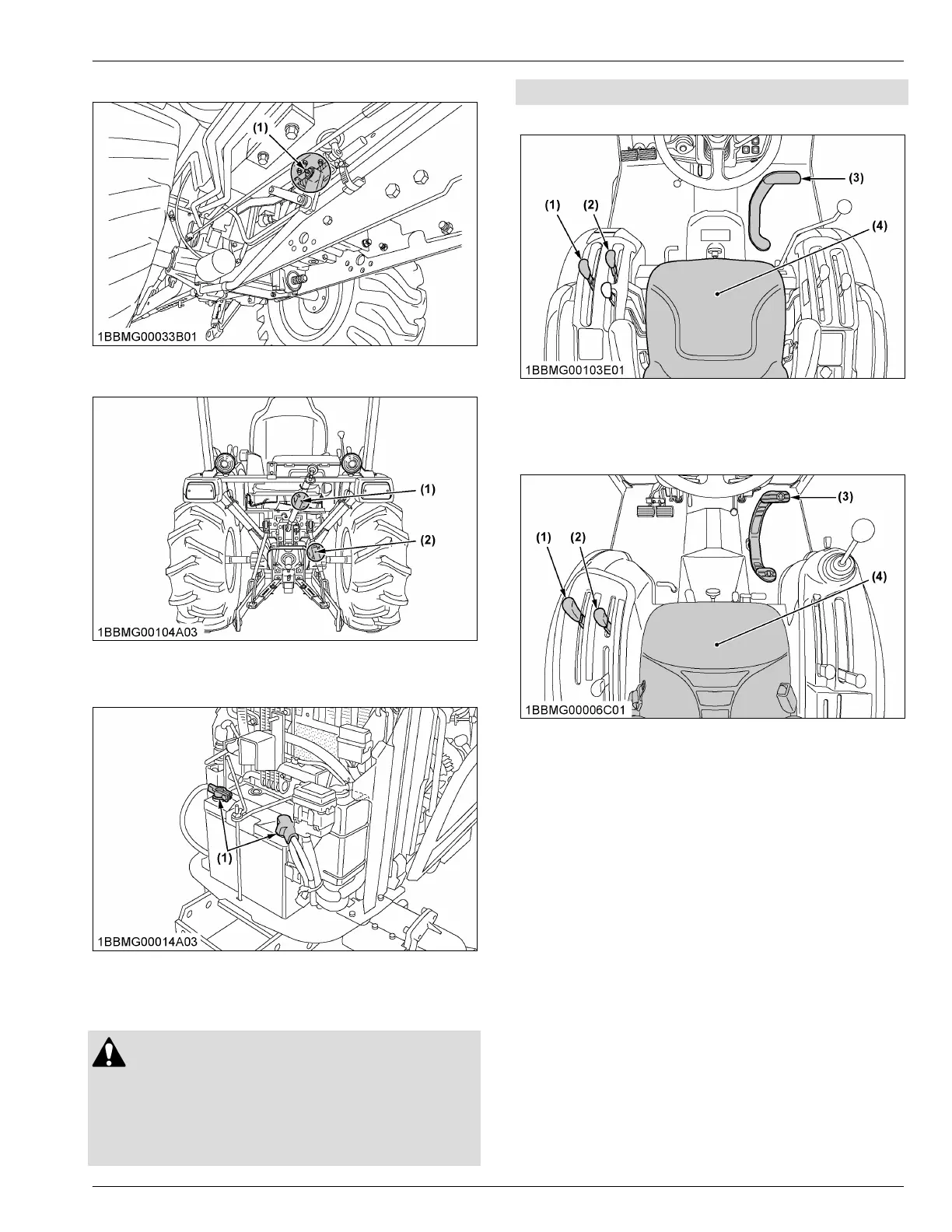

CAB model
(1) Grease fitting (speed control pedal)
All models
(1) Grease fitting (top link)
(2)
Grease fitting (lifting rod, right)
All models
(1) Battery terminals
2. Checking engine start system
WARNING
T
o avoid personal injury or death:
• Do not allow anyone near the tractor while
testing.
• If the tractor does not pass the test, do not
operate the tractor.
• Detach an implement before testing.
ROPS model
(1) Range gear shift lever
(2)
PTO clutch lever
(3) Speed control pedal
(4) Operator's seat
CAB model
(1) Range gear shift lever
(2)
PTO clutch lever
(3) Speed control pedal
(4) Operator's seat
Preparation before testing
1.
Sit on operator's seat.
2. Set the parking brake and stop the engine.
3. Shift the range gear shift lever to “NEUTRAL”
position.
4. Place the speed control pedal in “NEUTRAL”
position.
5. Shift the PTO clutch lever to “OFF” position.
Testing switch for the speed control pedal
1. Depress the speed control pedal.
2. Turn the key to “START” position.
3. The engine must not crank.
4. If it cranks, consult your local KUBOTA Dealer for
this service.
Testing switch for the PTO clutch lever
1. Place the speed control pedal in “NEUTRAL”
position.
2. Shift the PTO clutch lever to “ON” position.
EVERY 50 HOURS PERIODIC SERVICE
