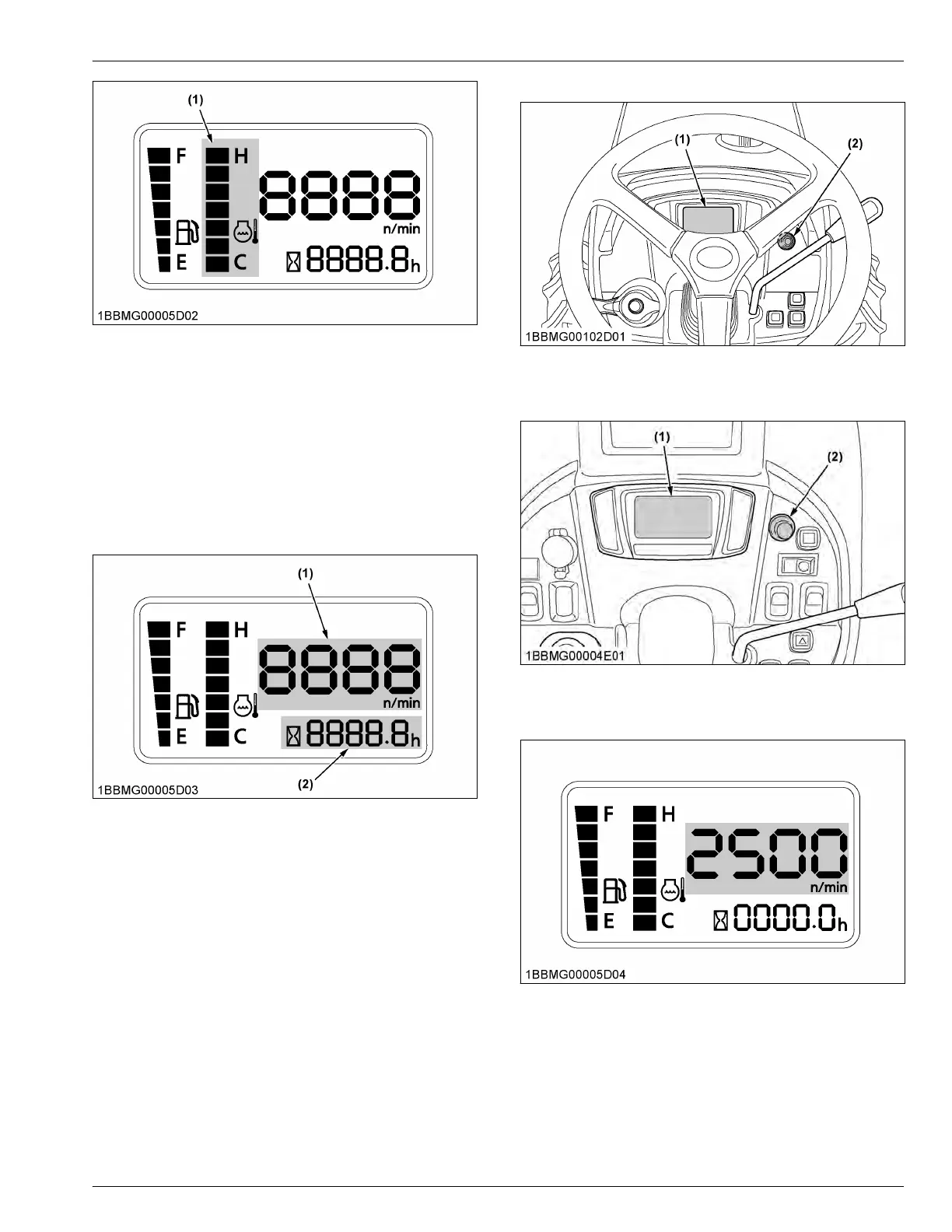

(1) Coolant temperature gauge
6. Hourmeter and tachometer
This meter gives readings for engine speed, PTO shaft
speed and the hours the tractor has been operated.
• The
tachometer indicates the engine speed and the
PTO shaft speed location on the dial.
• The hourmeter indicates in 5 digits the hours the
tractor has been used; the last digit indicates 1/10
of an hour.
(1) Engine revolution
(2)
Hours used
7. Changing display mode
1. The LCD monitor give several different displays.
2.
The LCD monitor displays “Engine rpm” normally.
3. The display switch is pressed, the display is
switched to “Rear PTO speed”, “Mid PTO speed”,
“Engine rpm”.
NOTE :
• Models that are not equipped with the “Mid
PTO” also display “Mid PTO speed”.
ROPS model
(1) LCD monitor
(2)
Display switch
CAB model
(1) LCD monitor
(2)
Display switch
Engine rpm
CHECK DURING DRIVING OPERATING THE TRACTOR
LX2610,LX3310
69

Kubota LX2610 Specifications

General

Engine Type	Diesel
Engine Horsepower	24.8 HP
PTO Horsepower	19.5 HP
Transmission Type	Hydrostatic
3-Point Hitch	Category I
Lift Capacity at 24 inches behind lift point	1, 323 lbs
Drive	4WD
Cylinders	3
Fuel Type	Diesel
PTO Speed	540 RPM
Hydraulic System Type	Open center
Width	54.9 inches
Height	87.4 inches
Number of Gears	3-range
Tire Size (Front)	25x8.50-14
Tire Size (Rear)	11.2-24
