STEERING
RTV1140CPX, WSM
6-S7

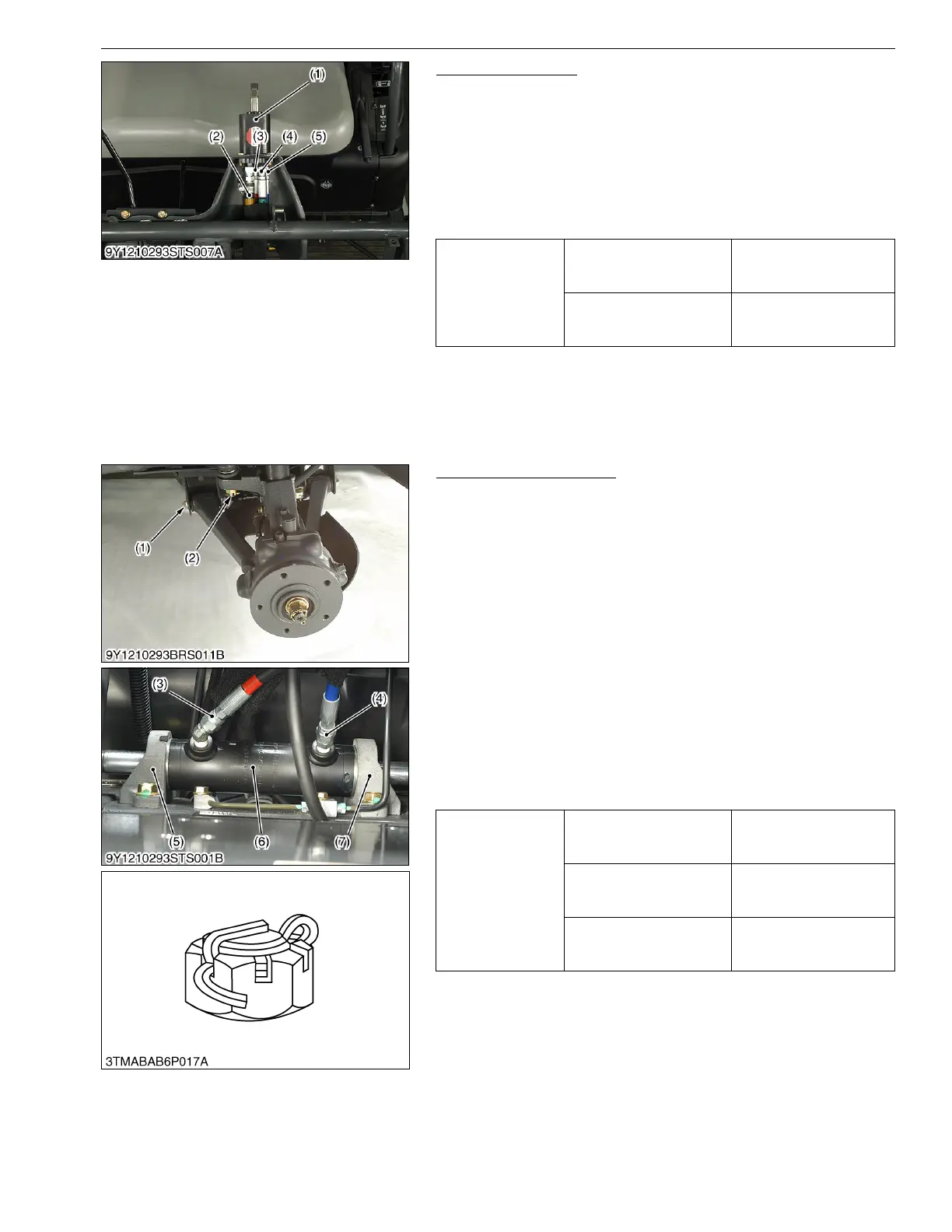

Steering Controller
1. Disconnect the power steering hoses (2), (3), (4), (5).
2. Remove the steering controller mounting screws and remove
the steering controller (1).
(When reassembling)
• Be sure to connect the power steering hoses to their original
position, and tighten them to the specified torque.
• If the oil leaks from power steering controller, replace it with a
new one.
9Y1210293STS0008US0
(2) Separating Power Steering Cylinder
Power Steering Cylinder
1. Place the stand under the frame.
2. Remove the front wheels.
3. Remove the cotter pin and remove the slotted nut (2) for tie-rod
end (1).
4. Disconnect the power steering cylinder hoses (3), (4).
5. Cut the cords clamp.
6. Remove the power steering cylinder bracket (5), (7) mounting
screws and remove the power steering cylinder (6) with tie-rod.
(When reassembling)
• When inserting the cotter pin, if the slots in the nut do not align
with the cotter pin hole in tie-rod end, tighten the nut clockwise
up to next alignment.
• If should be within 30 degree.
• Loosen once and tighten again when the slit goes past the
nearest hole.
• After tightening the these slotted nut to specified torques, install
a cotter pin as shown in the figure left.
9Y1210293STS0009US0
Tightening torque
Power steering hose
retaining nut
21.6 to 25.7 N·m
2.21 to 2.62 kgf·m
16.0 to 18.9 lbf·ft
Steering controller
mounting screw
23.5 to 27.4 N·m
2.40 to 2.79 kgf·m
17.4 to 20.2 lbf·ft
(1) Steering Controller
(2) Return Hose (Tank Port)
(3) Cylinder Hose RH (L Port)
(4) Delivery Hose (Pump Port)
(5) Cylinder Hose LH (R Port)
Tightening torque
Tie-rod slotted nut
50 N·m
5.1 kgf·m
37 lbf·ft
Power steering cylinder
hose retaining nut
21.6 to 25.7N·m
2.21 to 2.62 kgf·m
16.0 to 18.9 lbf·ft
Steering cylinder bracket
mounting screw
103 to 117 N·m
10.5 to 12.0 kgf·m
76.0 to 86.7 lbf·ft
(1) Tie-rod End RH
(2) Slotted Nut
(3) Power Steering Hose (RH)
(4) Power Steering Hose (LH)
(5) Steering Cylinder Bracket RH
(6) Power Steering Cylinder
(7) Steering Cylinder Bracket LH
KiSC issued 05, 2014 A
