STEERING
RTV1140CPX, WSM
6-S10
Hydraulic Pump

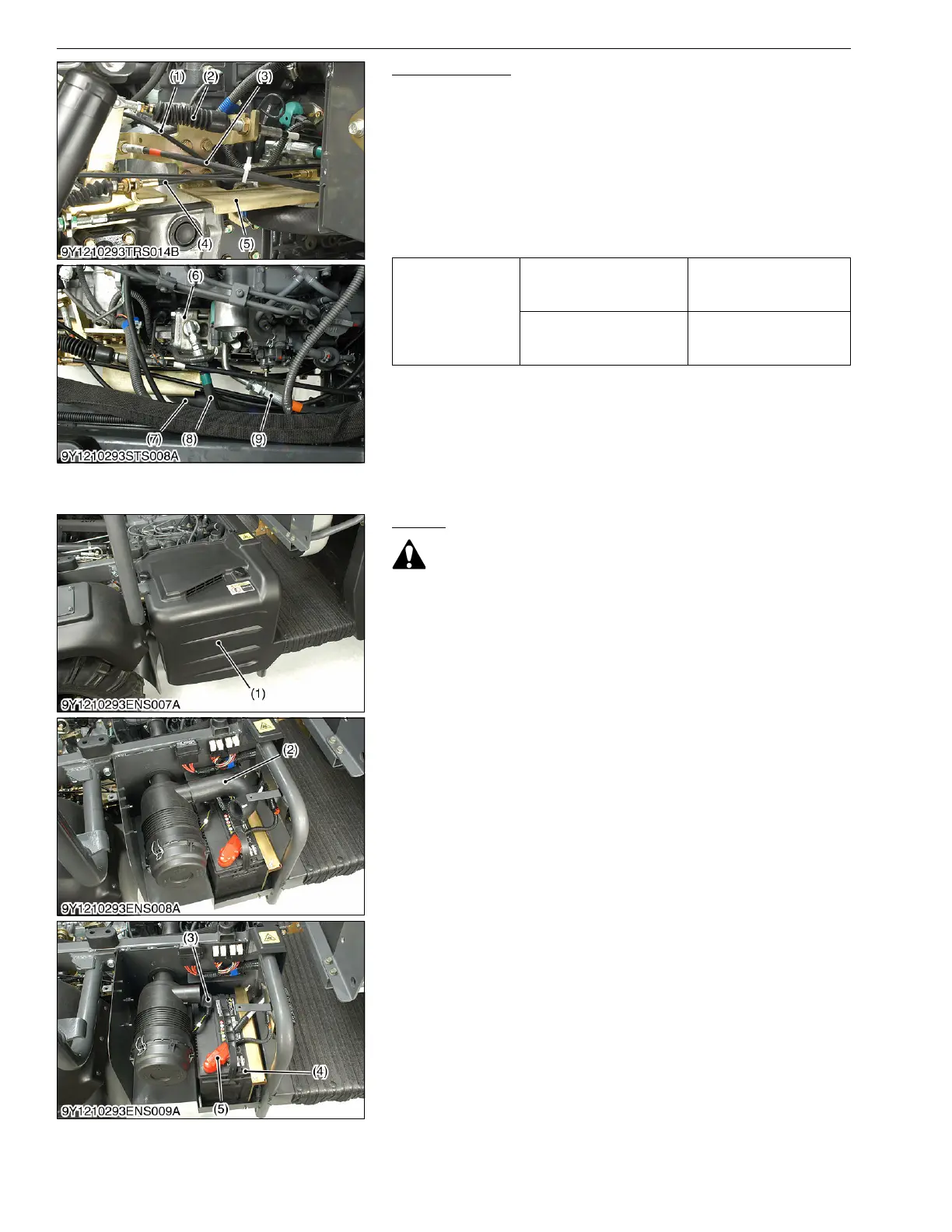

1. Disconnect the main shift cable (2), select cable (3), accelerator
wire (1) and foot throttle cable (4) from cable stay (5).
2. Remove the cable stay (5).
3. Disconnect the suction hose (7), power steering delivery hose
(8) and hydraulic control valve delivery hose (9).
4. Remove the hydraulic pump (6) from engine.
(When reassembling)
• Before disconnecting the cables, be sure to note their original
position.
9Y1210293STS0010US0
(4) Removing Power Steering Hose
Battery
CAUTION
• When disconnecting the battery cables, disconnect the
negative cable from the battery first. When connecting,
connect the positive cable to the battery first.
1. Set the seat to 1 row.
2. Remove the battery cover (1).
3. Remove the air cleaner hose (2).
4. Disconnect the negative cable (3) from the battery (4).
9Y1210293ENS0025US0
Tightening torque
Power steering delivery
hose retaining nut
21.6 to 25.7 N·m
2.21 to 2.62 kgf·m
16.0 to 18.9 lbf·ft
Hydraulic control valve
delivery hose retaining nut
21.6 to 25.7 N·m
2.21 to 2.62 kgf·m
16.0 to 18.9 lbf·ft
(1) Accelerator Wire
(2) Main Shift Cable
(3) Select Cable
(4) Foot Throttle Cable
(5) Cable Stay
(6) Hydraulic Pump
(7) Suction Hose
(8) Power Steering Delivery Hose
(9) Hydraulic Control Valve Delivery
Hose
(1) Battery Cover
(2) Air Cleaner Hose
(3) Negative Cable
(4) Battery
(5) Positive Cable
