HYDRAULIC SYSTEM
RTV1140CPX, WSM
7-M3
3. HYDRAULIC PUMP
The hydraulic pump has the front pump and the rear
pump. The front pump supplies the oil to the cargo bed
lift system. The rear pump supplies the oil to the power
steering system.

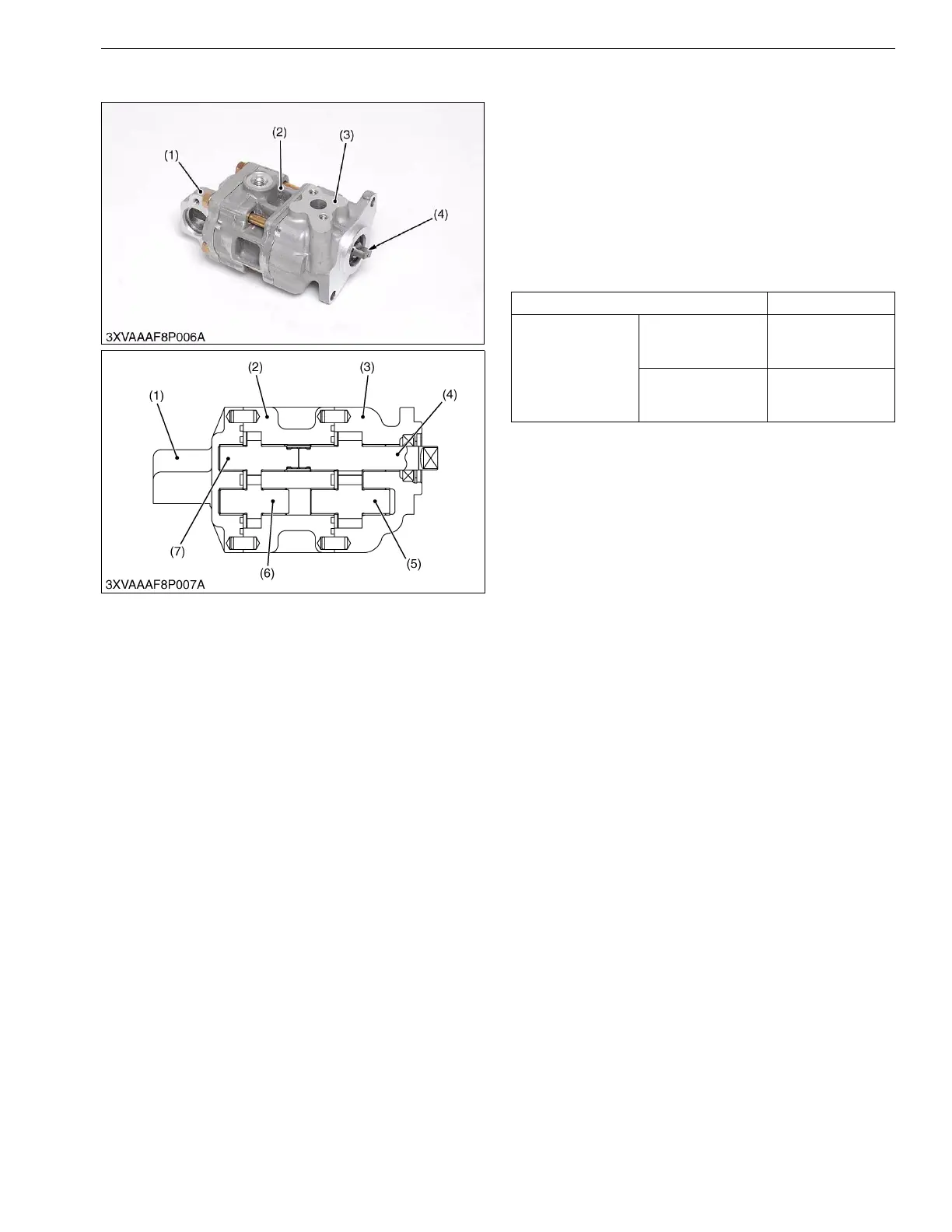

The hydraulic pump is composed of the casings (2)
(3), cover (1) and four spur gears (drive gears (4), (7)
and driven gears (5), (6)).
Hydraulic pump is driven by the governor shaft in the
engine.
Maximum displacement is as follows.
9Y1210293HYM0003US0
Displacement
Factory
specification
Front Pump
20.5 L/min
5.42 U.S.gals/min
4.51 Imp.gals/min
Rear Pump
12.1 L/min
3.20 U.S.gals/min
2.66 Imp.gals/min
(1) Cover
(2) Casing (for Rear Pump)
(3) Casing (for Front Pump)
(4) Drive Gear (for Front Pump)
(5) Driven Gear (for Front Pump)
(6) Driven Gear (for Rear Pump)
(7) Drive Gear (for Rear Pump)
