ENGINE
B2050, B2350, B2650, B3150, WSM
1-S24

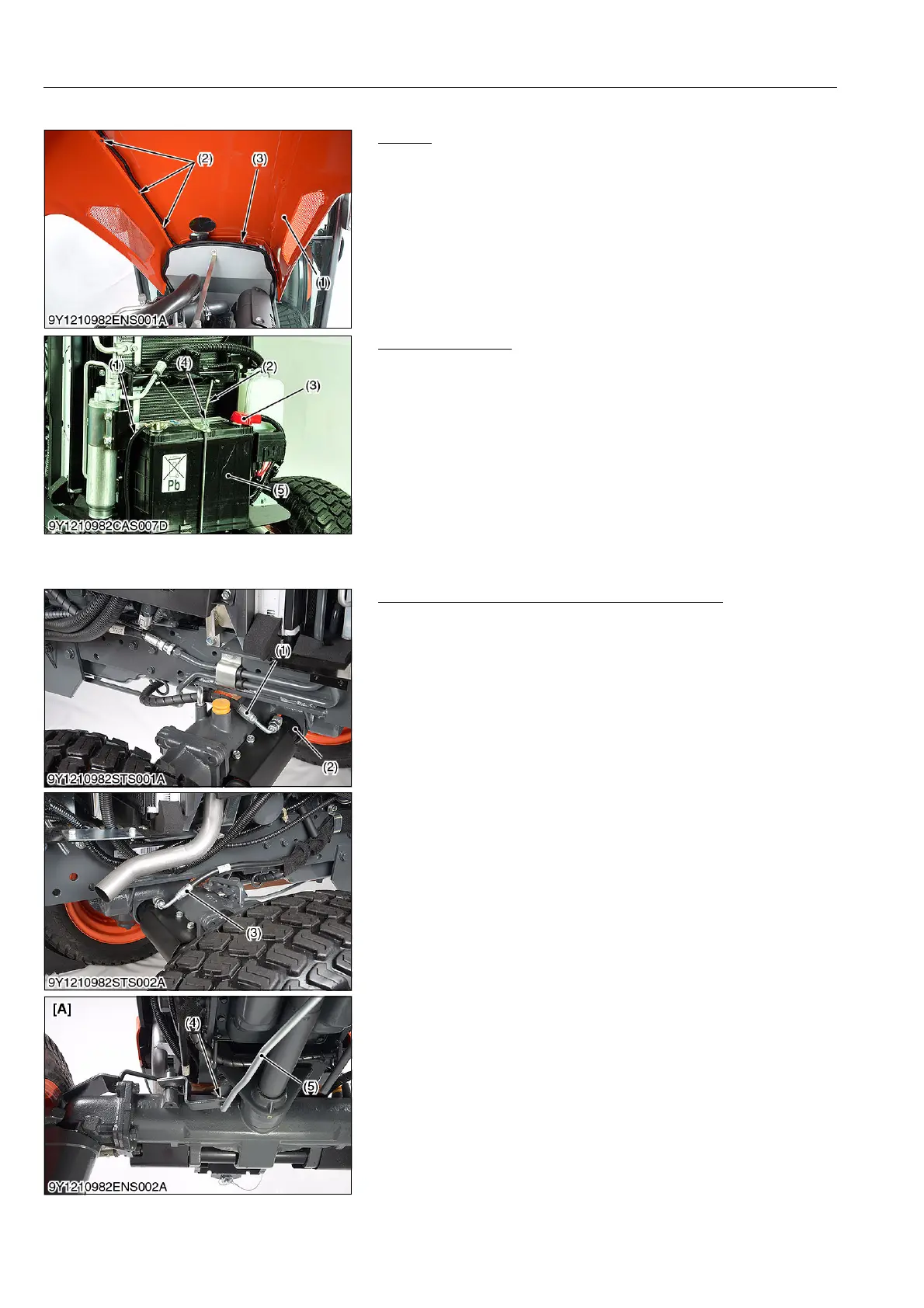

(2) Separating Engine from Clutch Housing (CABIN)
Bonnet
1. Open the bonnet (1) and disconnect the battery negative cable.
2. Disconnect the connector for head light and remove the clamp
(2).
3. Remove the snap pin (3).
4. Remove the bonnet (1) and side cover.
9Y1210982ENS0113US0
Removing Battery
1. Removing the wing nut (4).
2. Remove the battery retainer (2).
3. Disconnect the battery negative cable (1) from the battery (5).
4. Disconnect the battery positive cable (3) from the battery (5).
5. Remove the battery (5).
(When reassembling)
• Connect the battery positive cable first.
• Connect the battery negative cable second.
9Y1210982ENS0026US0
Hydraulic Hoses from Power Steering Cylinder
1. Disconnect the hydraulic hoses (1), (3) from the power steering
cylinder (2).
2. Removing the snap pin (4) and disconnect the bi-speed rod (5).
9Y1210982CLS0007US0
(1) Bonnet
(2) Clamp
(3) Snap Pin
(1) Battery Negative Cable
(2) Battery Retainer
(3) Battery Positive Cable
(4) Wing Nut
(5) Battery
(1) Hydraulic Hose (R.H.)
(2) Power Steering Cylinder
(3) Hydraulic Hose (L.H.)
(4) Snap Pin
(5) Bi-Speed Rod
[A] Bi-Speed Turn Model
