BRAKES
B2050, B2350, B2650, B3150, WSM
5-S8

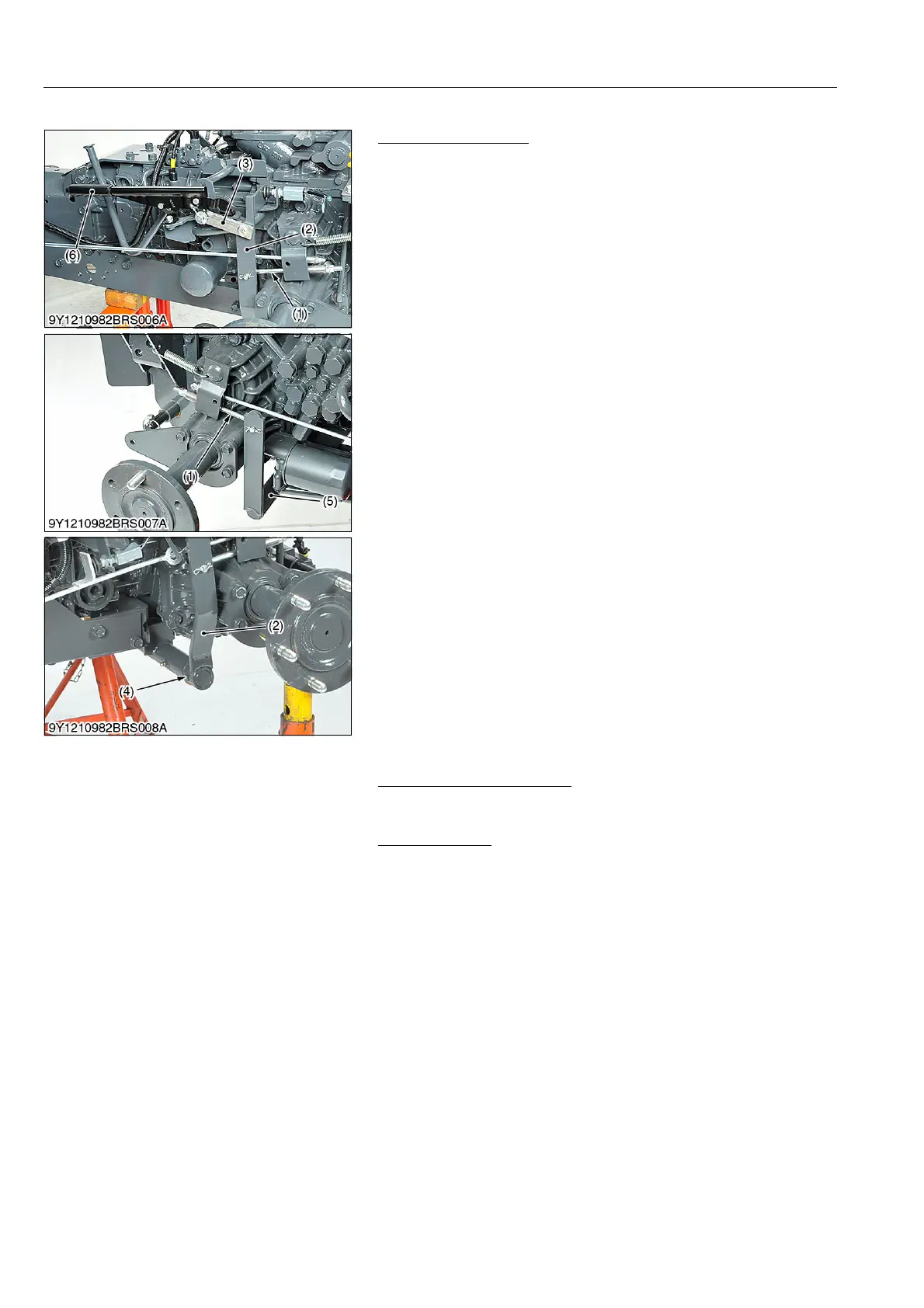

(4) Parking Brake Lever
Parking Brake Lever
1. Disconnect the parking brake rod (1) from parking brake arm
(2).
2. Disconnect parking brake lever plate (3) from parking brake arm
(2).
3. Remove the pin (4), parking brake arm (2) and parking brake
shaft (5),
4. Remove the parking brake lever (6) and parking brake lever
plate (3).
(When reassembling)
• Apply grease to the brake pedal shaft.
• Be sure to adjust the brake pedal free travel and parking brake
lever travel.
9Y1210982BRS0024US0
(5) Separating Rear Axle Case
Draining Transmission Oil
1. See page 3-S16.
9Y1210982BRS0007US0
Rear Axle Case
1. See page 4-S4.
9Y1210982BRS0008US0
(1) Parking Brake Rod
(2) Parking Brake Arm
(3) Parking Brake Lever Plate
(4) Pin
(5) Parking Brake Shaft
(6) Parking Brake Lever
KiSC issued 03, 2014 A
