STEERING
B2050, B2350, B2650, B3150, WSM
7-S8
(4) Power Steering Cylinder
Front Wheels
• See page 6-S5.
9Y1210982STS0008US0

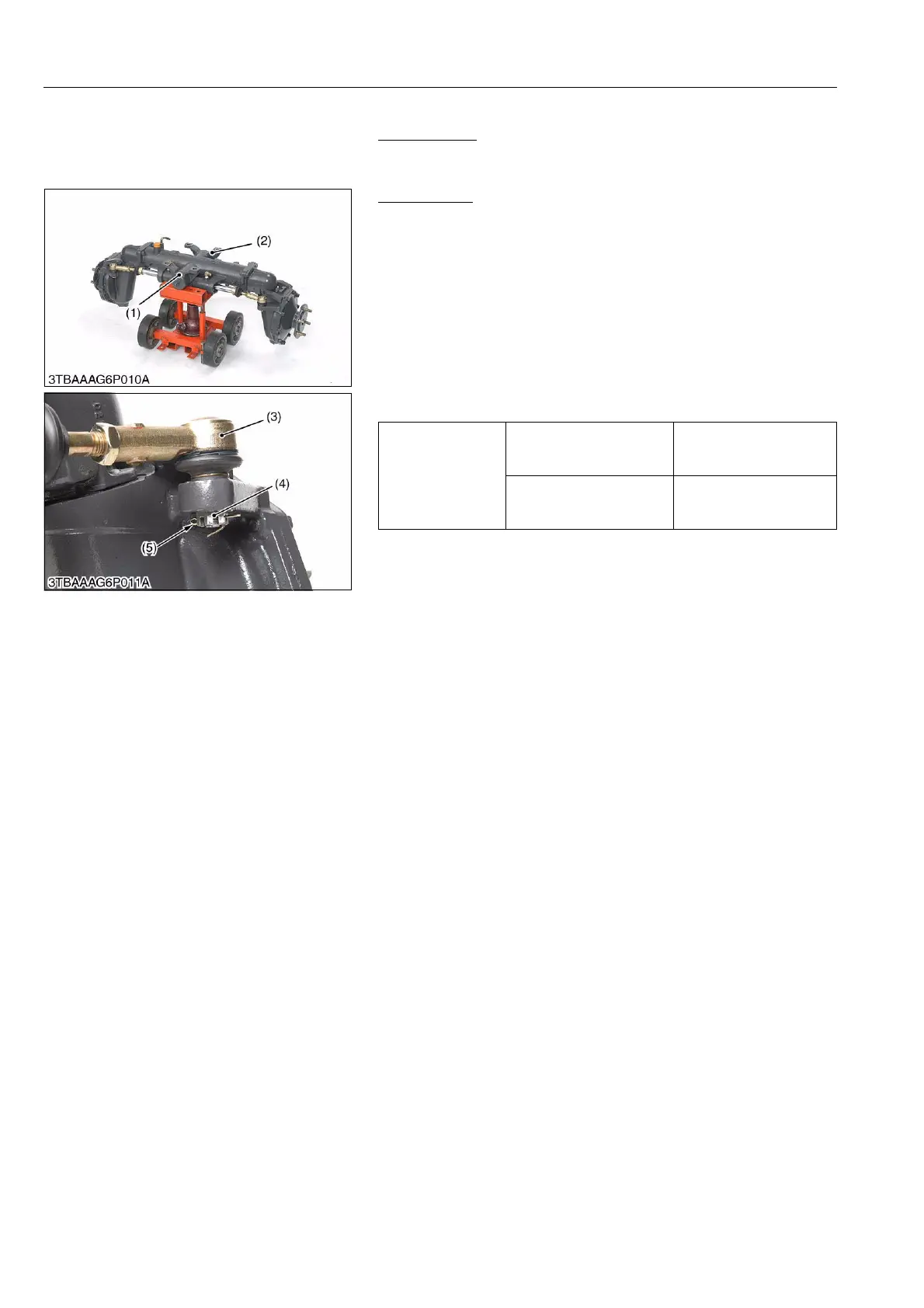

Tie-rod Joint
1. Remove the slotted nut (4) and remove the tie-rod end (3).
2. Remove the front axle brackets (1), (2).
(When reassembling)
• Apply grease to the thrust collar of front axle bracket.
• Apply grease to the O-ring and be careful not to damage it.
• After tightening the slotted nut, install cotter pin as shown in the
figure.
(Bleeding air in power steering circuit)
• Start the engine.
• Turn the steering wheel slowly in both directions all the way
alternately several times, and stop the engine.
9Y1210982STS0009US0
Tightening torque
Tie-rod slotted nut
18 to 35 N·m
1.9 to 3.5 kgf·m
14 to 25 lbf·ft
Tie-rod joint
74 to 84 N·m
7.6 to 8.5 kgf·m
55 to 61 lbf·ft
(1) Front Axle Bracket (Front)
(2) Front Axle Bracket (Rear)
(3) Tie-rod End
(4) Slotted Nut
(5) Cotter Pin
To Next Page
