3-S35
B1710 · B2110 · B2410 · B2710, WSM
TRANSMISSION

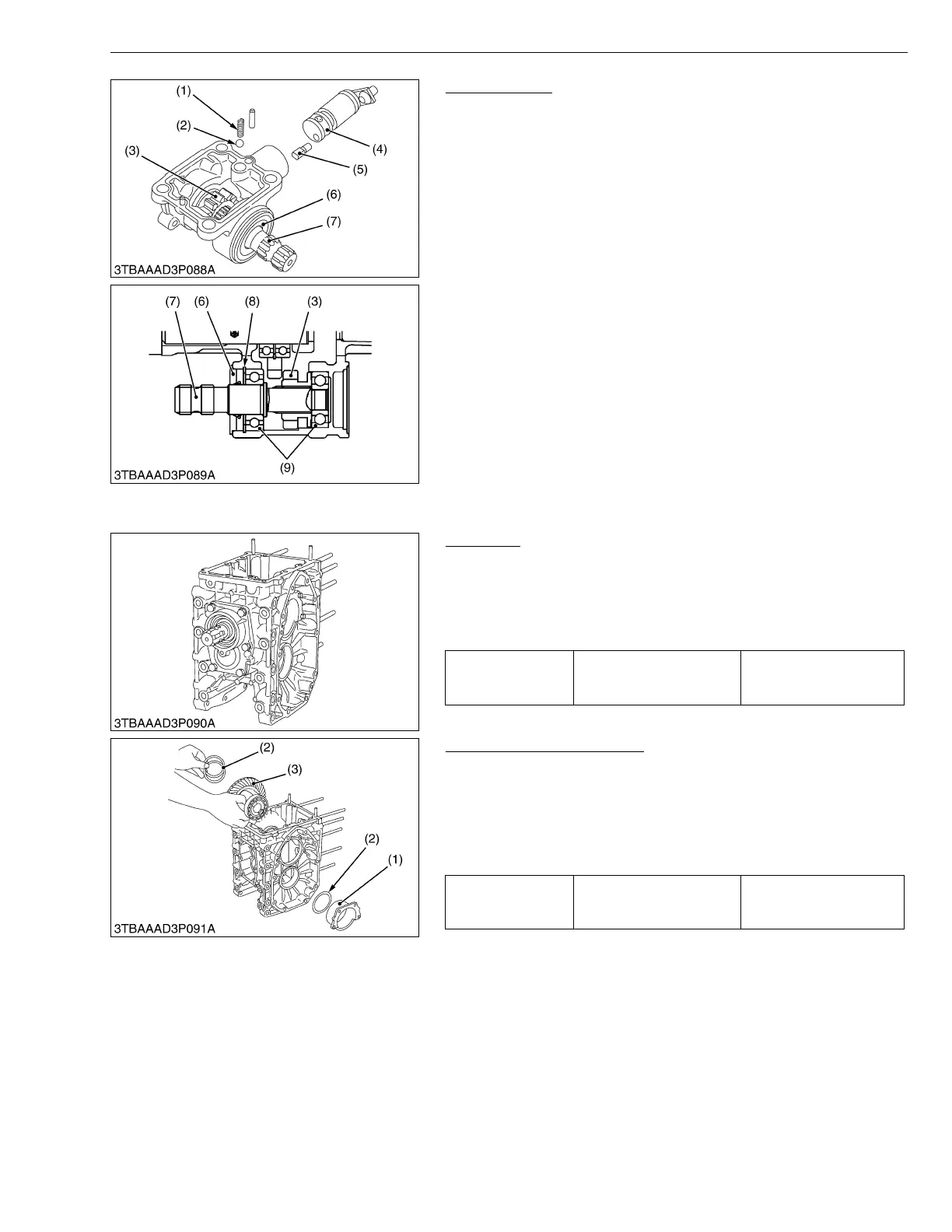

Mid-PTO Shaft
1. Remove the spring (1) and ball (2).
2. Draw out the dowel pin and remove the shift arm (4) with shifter
(5).
3. Remove the oil seal (6) and internal snap ring (8).
4. Remove the mid-PTO shaft (7) with 11T shifter gear (3) and
bearings (9).
(When reassembling)
• Apply grease to lip and outer of oil seal.
W10251030
[5] DISASSEMBLING DIFFERENTIAL GEAR CASE
PTO Shaft
1. Remove the PTO cover mounting screws and remove the PTO
cover assembly.
(When reassembling)
• Apply liquid gasket (Three Bond 1208D or equivalent) to joint
face of differential gear case and PTO cover.
W10252980
Differential Gear Assembly
1. Remove the bearing holder mounting screws and remove the
bearing holder (1).
2. Take out the differential gear assembly (3).
(When reassembling)
• Install the differential gear assembly, noting the number of shims
(2) in the differential case left side and bearing holder side.
W10254060
(1) Spring
(2) Ball
(3) 11T Shifter Gear
(4) Shift Arm
(5) Shifter
(6) Oil Seal
(7) Mid-PTO Shaft
(8) Internal Snap Ring
(9) Bearing
Tightening torque PTO cover mounting screw
39.2 to 44.1 N·m
4.0 to 4.5 kgf·m
28.9 to 32.5 ft-lbs
Tightening torque
Differential gears bearing
holder mounting screw
17.7 to 20.6 N·m
1.8 to 2.1 kgf·m
13.0 to 15.2 ft-lbs
(1) Bearing Holder
(2) Adjusting Shim
(3) Differential Gear Assembly
