8-S10
B1710 · B2110 · B2410 · B2710, WSM
HYDRAULIC SYSTEM

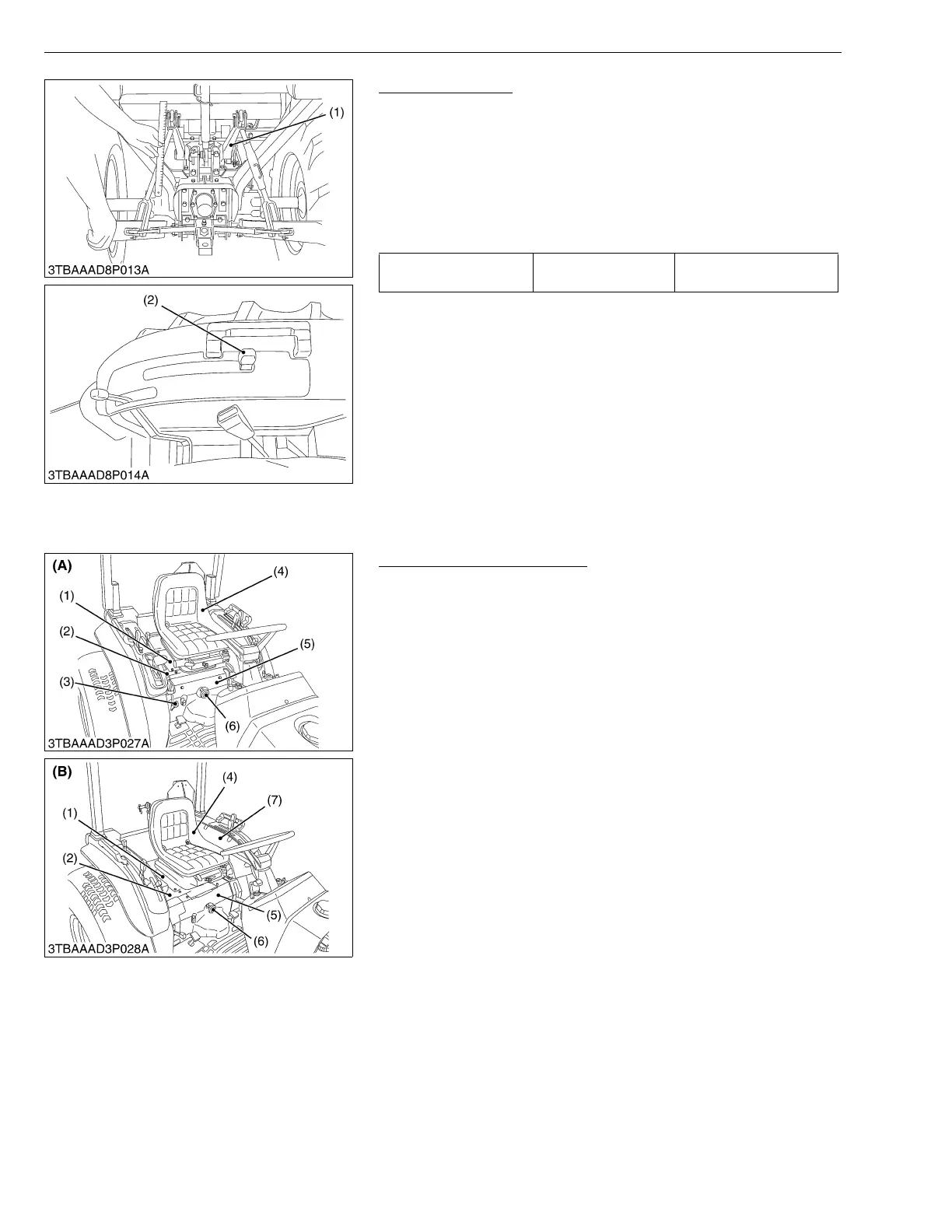

Lift Arm Free Play
1. Set the position control lever (2) to the lowest position.
2. Start the engine, and set at the idling speed.
3. Move the position control lever (2) to the uppermost position.
4. Move the lift arm (1) to the upper end by hand and measure the
free play.
5. If the measurement is not within the factory specifications, adjust
the free play by changing the position control feedback rod
setting length.
W10138860
(2) Disassembling and Assembling
(A) Separating Hydraulic Cylinder Assembly
Seat and Seat Under Covers
1. Remove the seat (4) with seat stay (1) as a unit.
2. Remove the lowering speed adjusting knob (6) and front wheel
drive lever grip (3) (except B2710) and then remove the seat
under cover, front (5).
3. Remove the seat under cover, rear (2).
4. Remove the fender covers (7) (B2710 only).
W10229790
Lift arm free play Factory spec.
5 to 10 mm
0.20 to 0.40 in.
(1) Lift Arm (2) Position Control Lever
(1) Seat Stay
(2) Seat Under Cover, Rear
(3) Front Wheel Drive Lever Grip
(4) Seat
(5) Seat Under Cover, Front
(6) Lowering Speed Adjusting Knob
(7) Fender Cover
(A) B1710, B2110, B2410
(B) B2710
To Next Page
