8-M3
B1710 · B2110 · B2410 · B2710, WSM
HYDRAULIC SYSTEM
2. HYDRAULIC PUMP

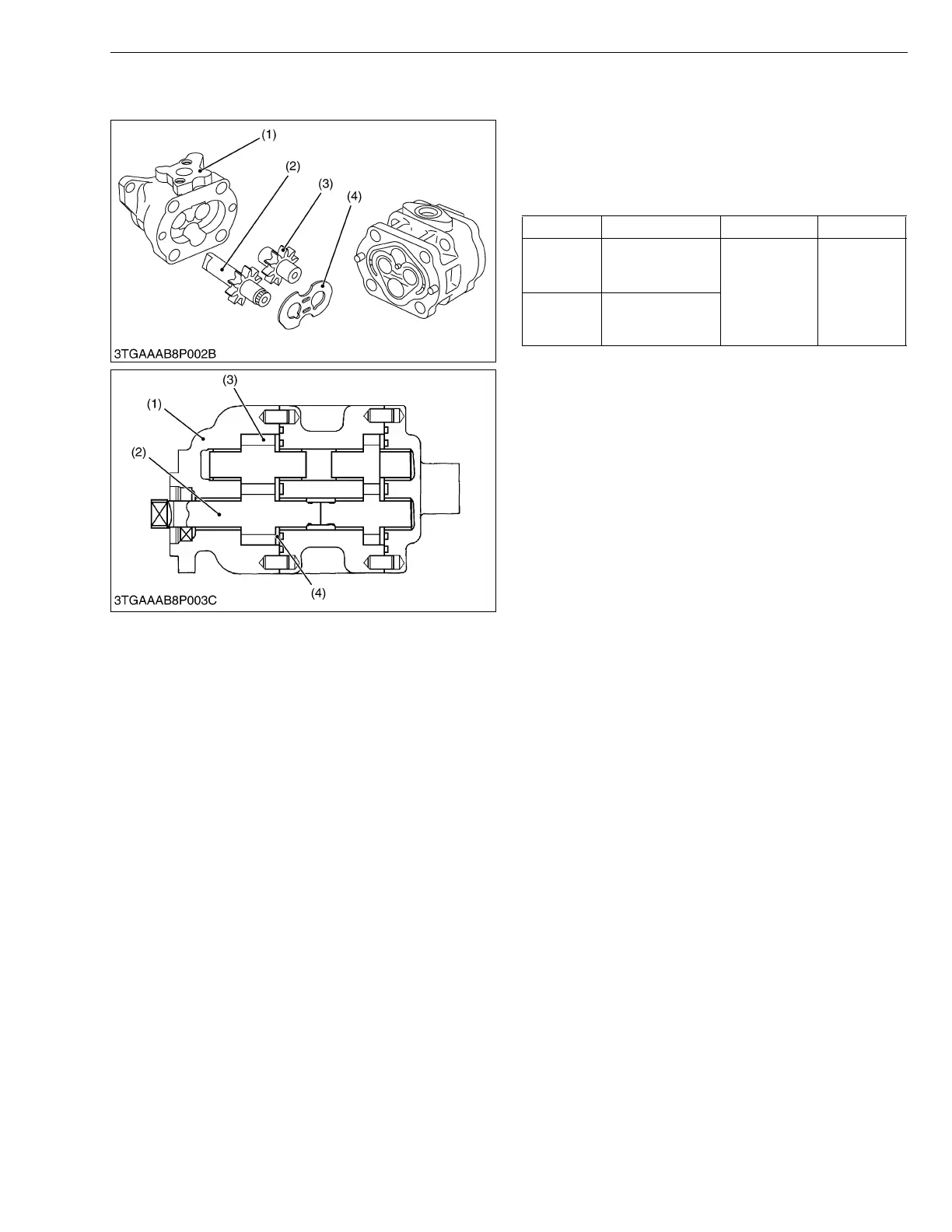

The hydraulic pump is composed of the casing (1),
side plate (4), and two spur gears (drive gear (2) and
driven gear (3)) that are in mesh.
Hydraulic pump is driven by the fuel camshaft.
Maximum displacement is as follows.
W10131850
Displacement Engine speed Condition
B1710
B2110
B2410
16.6 L/min.
4.4 U.S.gal/min.
3.7 Imp.gal/min.
At 2600 rpm at no load
B2710
24.4 L/min.
6.4 U.S.gal/min.
5.4 Imp.gal/min.
(1) Casing
(2) Drive Gear
(3) Driven Gear
(4) Side Plate
To Next Page
