B1710 · B2110 · B2410 · B2710, WSM
ELECTRICAL SYSTEM
3. CHARGING SYSTEM
The charging system supplies electric power for various electrical devices and also charges the battery while the
engine runs.

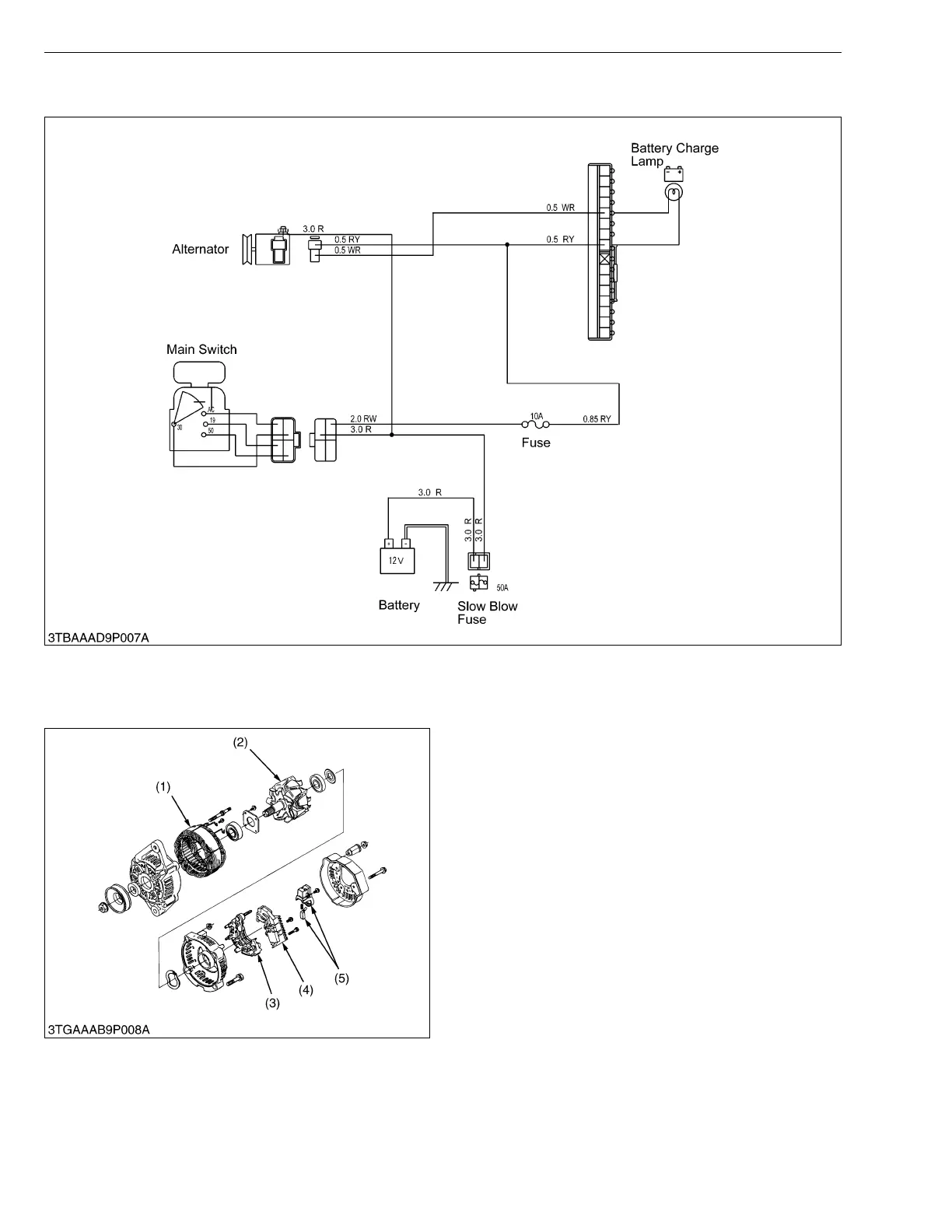

[1] ALTERNATOR
A compact alternator with an IC regulator is used,
having the following characteristics :
• Approximately 26 % lighter and 17 % smaller than a
standard alternator.
• Cooling performance and safety have been improved
by combining the cooling fan with the rotor and
incorporating the fan / rotor unit inside the alternator.
• IC regulator is fitted inside the alternator.
• The rectifier, IC regulator and similar components are
easy to remove, making it easier to service the
alternator.
W10136070
(1) Stator
(2) Rotor
(3) Rectifier
(4) IC Regulator
(5) Brush Holder
