BUNPACKING IRON CRATE
1. Unpacking procedure
(1) Remove the discharge cover on the step.
(2) Remove the cord clamp and the ROPS frames
from the crate.
(3) Remove the straps (four) fixing the front wheels
and the rear wheels.
(4) Remove the right and left pins fixing the iron crate
at the front of the machine, and put the crate
down.
(5) Connect the battery's cable.
(See "CONNECT BATTERY'S CABLE" in
"ASSEMBLY" section.)
(6) Make sure that the fuel valve is downward.
(7) Start the engine. (Refer to "OPERATING THE
ENGINE" section of the operator's manual.)
(8) Lift the mower by stepping on the hydraulic lift
control pedal (UP).
(9) Drive the machine out of the crate. (Refer to
"OPERATING THE MACHINE" section of the
operator's manual.)

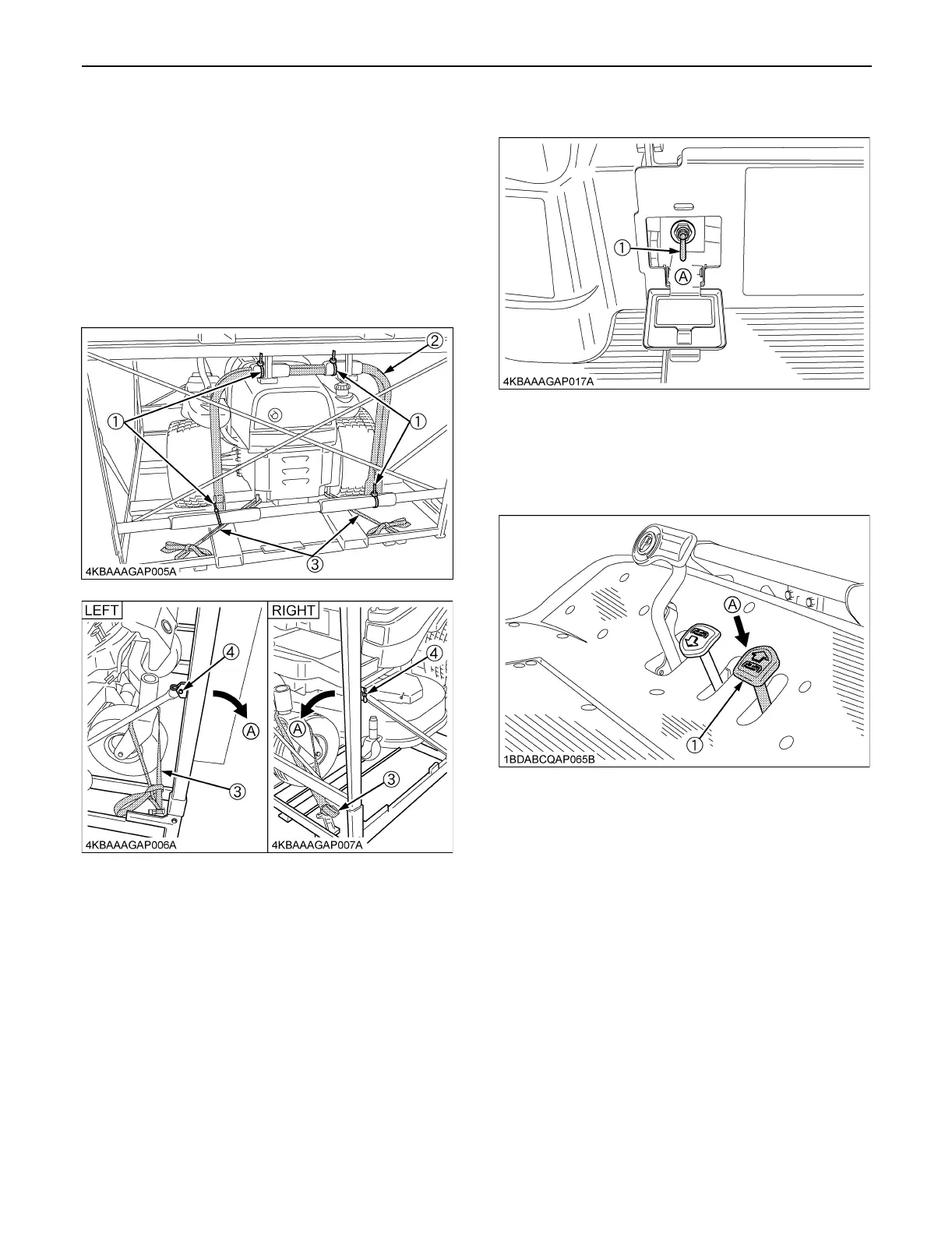

(1) Cord clamp
(2) ROPS frame
(3) Strap
(4) Pin
(A) "Frontward"
(1) Fuel valve (A) "Downward"
(1) Hydraulic lift control pedal (A) "DEPRESS"
