4

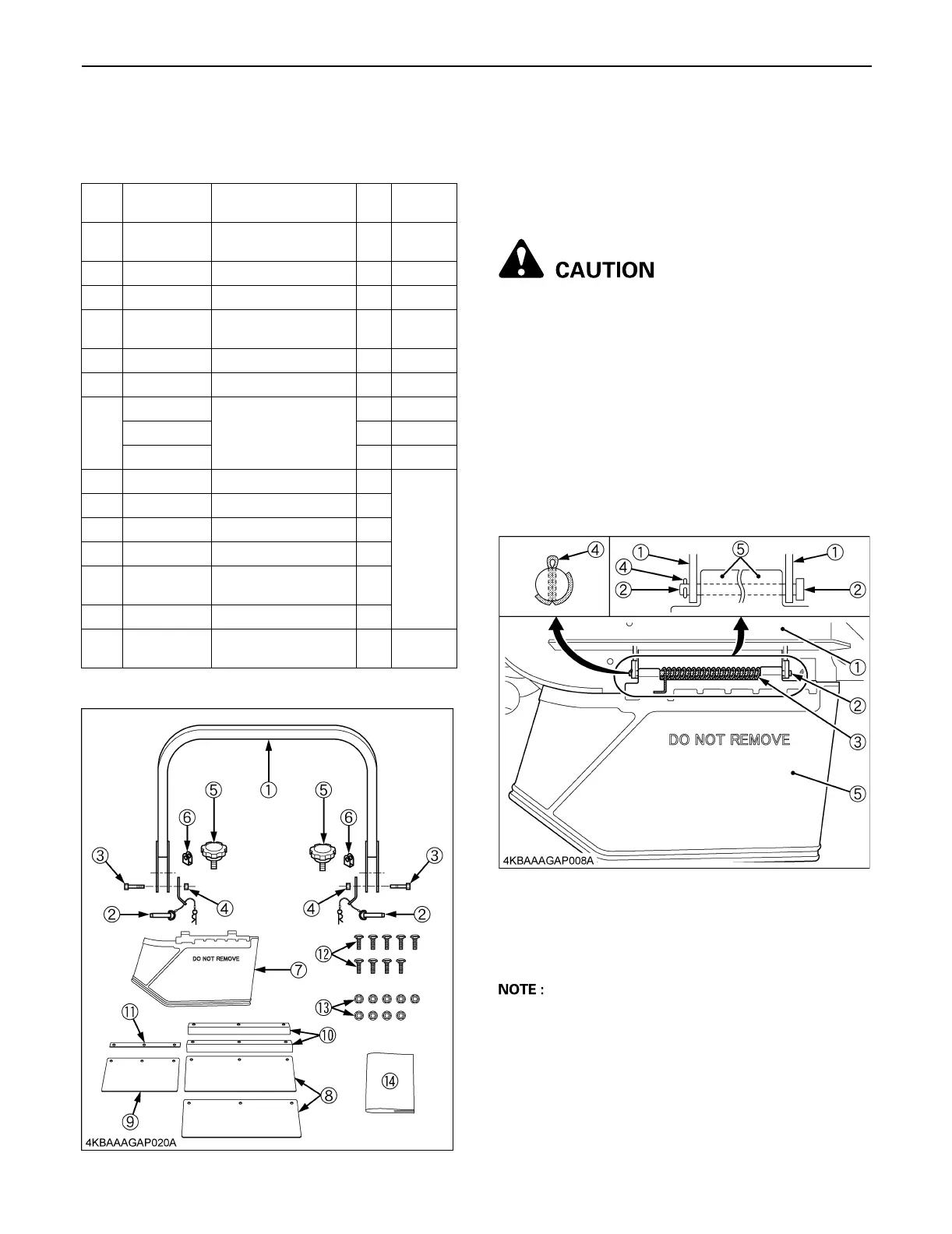

CHECKING PARTS
BPARTS LIST
1. Check the component parts
(1) Check carefully for shipping damage.
(2) Check the loose parts and the hardware package
against the PARTS LIST.
ASSEMBLY
To avoid personal injury or death:
A Park the machine on a hard and level surface.
A Apply the parking brake.
A Stop the engine and remove the key.
BINSTALLATION OF THE MOWER
DISCHARGE COVER
[RCK54P, RCK60P, RCK72P]
1. Remove the discharge pin, the cotter pin and the
discharge spring attached to the mower deck.
2. Attach the discharge cover with the original discharge
pin, cotter pin and discharge pin.
A The correct way to bend over cotter pin ends is shown
in the figure.
Ref.
No.
Part Number Description Qty Remarks
(1) - ROPS, UPPER 1
N/A for
service
(2) K3211-8240-0 ASSY PIN, SET 2
(3) K3211-8254-0 BOLT, BLACK M16 x 2.0 2
(4) K3211-8256-0
NUT, LOCKING BLACK
M16 x 2
2
(5) 53721-6153-3 CLAMP, RAIL COVER 2
(6) K2591-3956-0 BRACKET, RETAINER 2
(7)
K5678-4711-3
COVER, DISCHARGE
1 RCK72P
K5668-4711-3 1 RCK60P
K5618-4711-3 1 RCK54P
(8) K5649-2112-0 PLATE (RUBBER 1) 2
Only for
RCK60R
(9) K5649-2113-0 PLATE (RUBBER 2) 1
(10) K5649-4330-0 PLATE, UPPER 1 2
(11) K5649-4331-0 PLATE, UPPER 2 1
(12) K1122-9132-0
BOLT, SHORT SQU.
NECK M8x1.25
9
(13) 02751-50080 NUT, FLANGE M8 9
(14) K3178-7153-0
ASSEMBLY,
INSTRUCTIONS
1
This
paper
(1) Deck
(2) Discharge pin
(3) Discharge spring
(4) Cotter pin
(5) Discharge cover
To Next Page
