Disc mower
36
GMD240-280-310
Putting into service
KN204AGB H

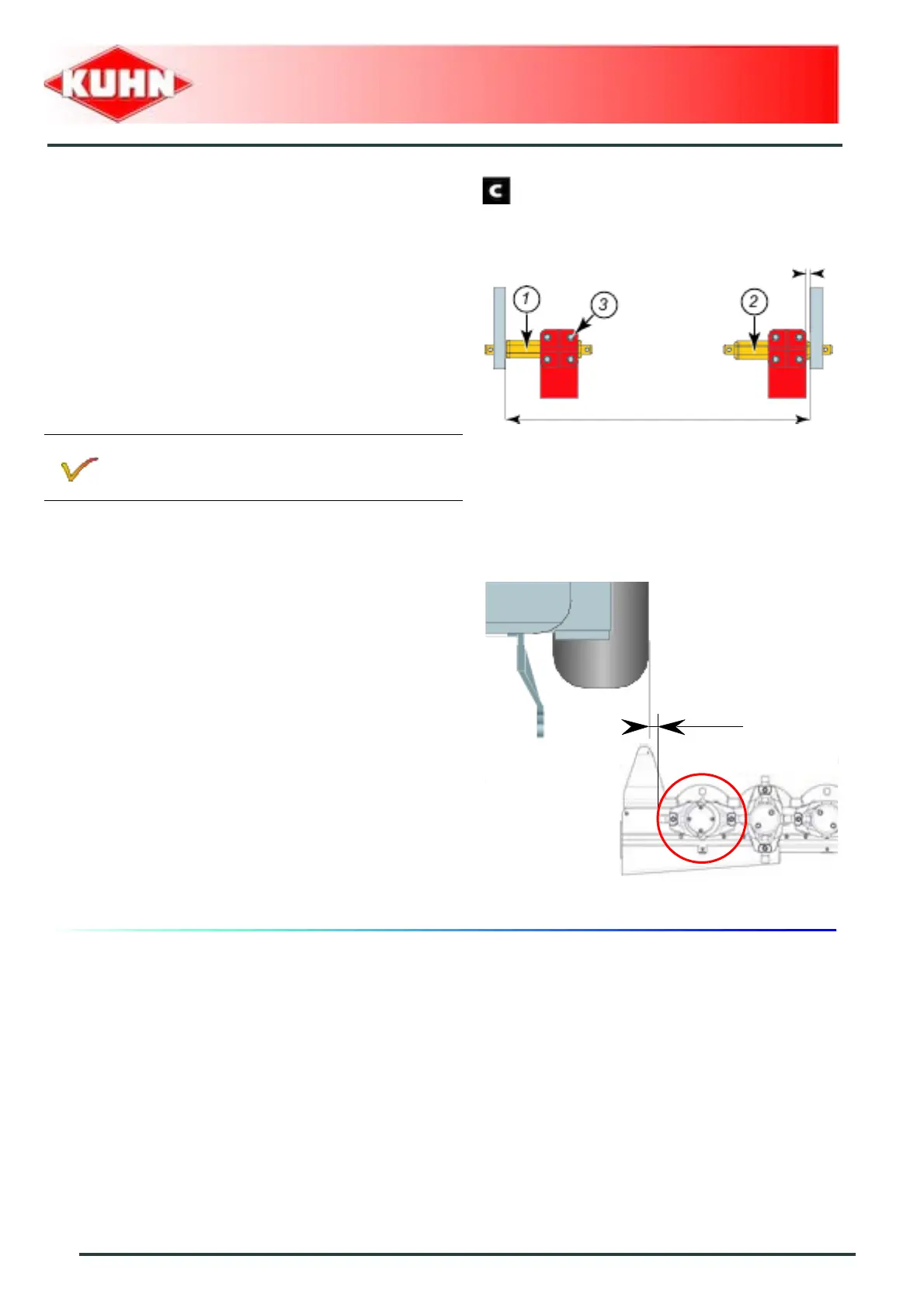

If measure A is comprised between 2.25 m (7’04")
and 2.40 m (7’10"):
- Place lower links in position c.
- Adjust machine lower hitch pin position:
• Loosen the 8 screws (3).
• Position hitch pin (2) at measure G = 10 mm (0.4").
• Tighten 4 hitch pin screws (2): Torque : 12.3 daN m
(91 lbf ft).
• Position hitch pin (1) at measure X = 825 mm (2’8").
• Tighten 4 hitch pin screws (1): Torque : 12.3 daN m
(91 lbf ft).
Positioning of lower links
- Measure dimension E.
- Adjust tractor lower link stabilizers to measure E =
50 mm (2").
It is possible to adjust the coupling more
precisely by adjusting the lower links sideways.
