KUHN EL22 - Instructions for work; Preparing for Work

Rotary cultivators
30
EL22
Instructions for work
$Instructions for work
1. Putting the machine into work
position
From the transport position:
- Lower the tractor lift linkage until the rear roller
touches the ground.
2. Adjustments in working position
 Working depth

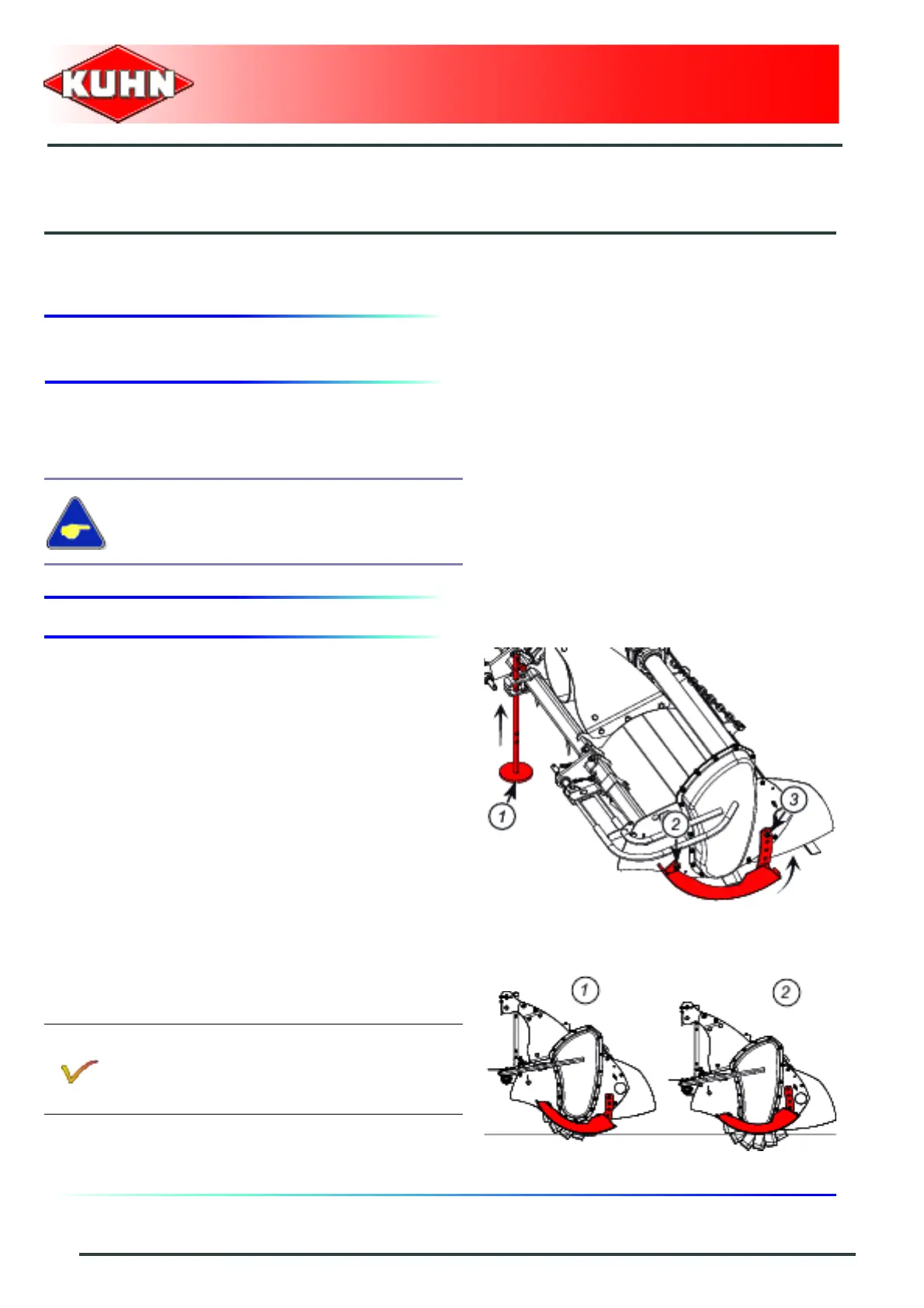

Adjusting the working depth with skids and parking
stand:
The working depth is set by the skid height:
- Lift the machine slightly off the ground.
- Check that parking stand is in upper position (1).
- Loosen screw (2).
- Remove screw (3).
- Position skid in hole corresponding to the required
adjustment.
- Reinstall screw (3).
• Torque: 4.9 daN m (3.6 lbf ft).
- Tighten screw (2).
• Torque: 4.9 daN m (3.6 lbf ft).
Check overlap of PTO shaft after a change in
hitch frame position.
Relations between the working depth and the
skid position:
Position (1) = 50 mm (2’’).
Position (2) = 120 mm (4.7’’).
