Assembly and fitting
Control box
RPB
17
$Assembly and fitting
1. Tractor requirements
The tractor must supply a voltage comprised between
11 V and 14 V.

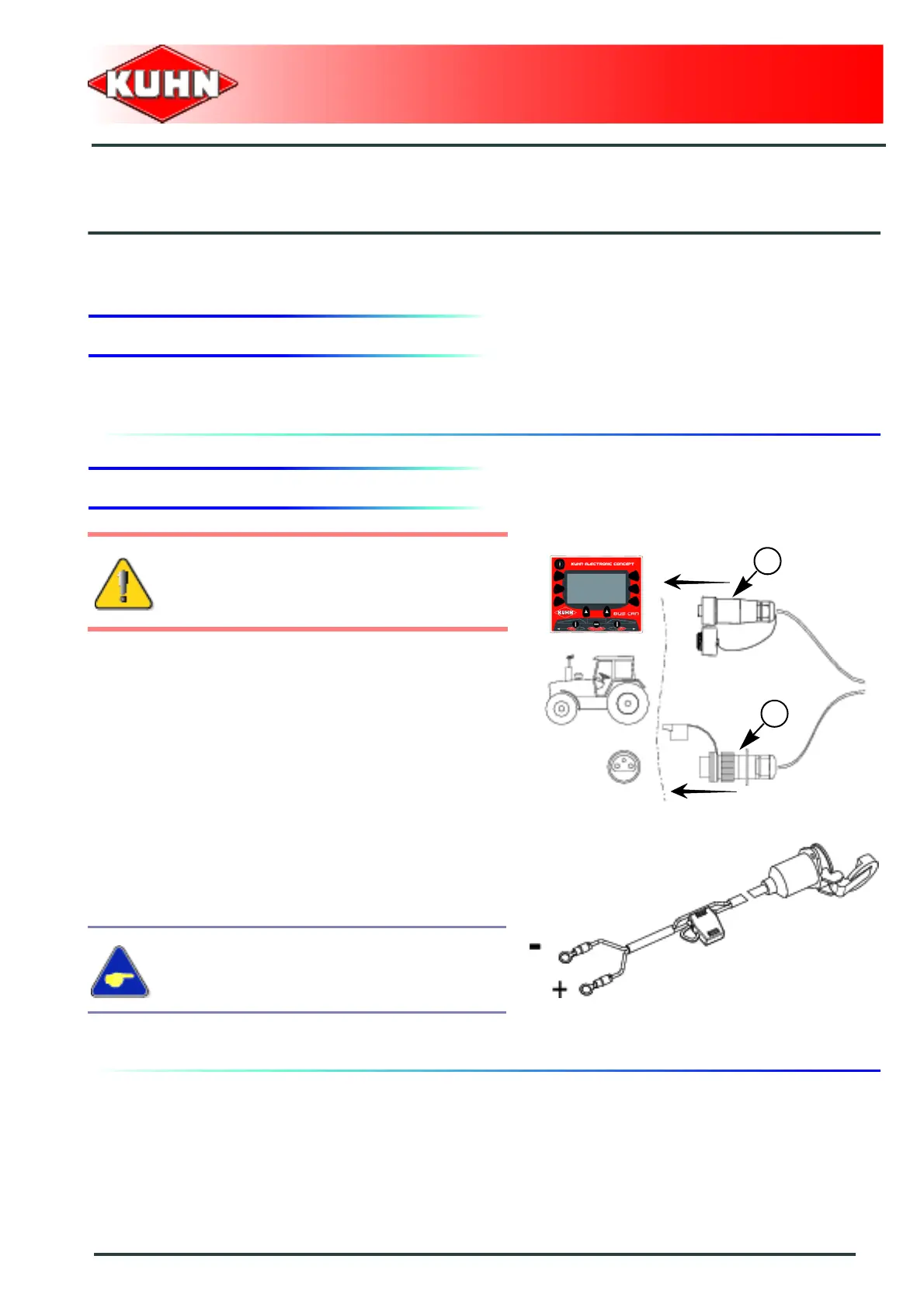

2. Description of the connection
- Connect the machine 3-pin power plug (1).
- Connect machine CAN BUS wiring harness connector
(2) to the control box.
For increased safety, it is recommended to use the
harness supplied with the machine..
- Connect the wiring harness directly to the battery
terminals respecting the polarities.
Never connect battery charger or perform
welding tasks without having previously
disconnected the control box.
Check that the connectors are in a good
condition and clean.
1
2
